300S (5902207) - Ferris 300S Series 52" Zero-Turn Mower, 22hp Kawasaki Engine Group Parts Diagram

300S Series 52" Zero-Turn Mower, 22hp Kawasaki

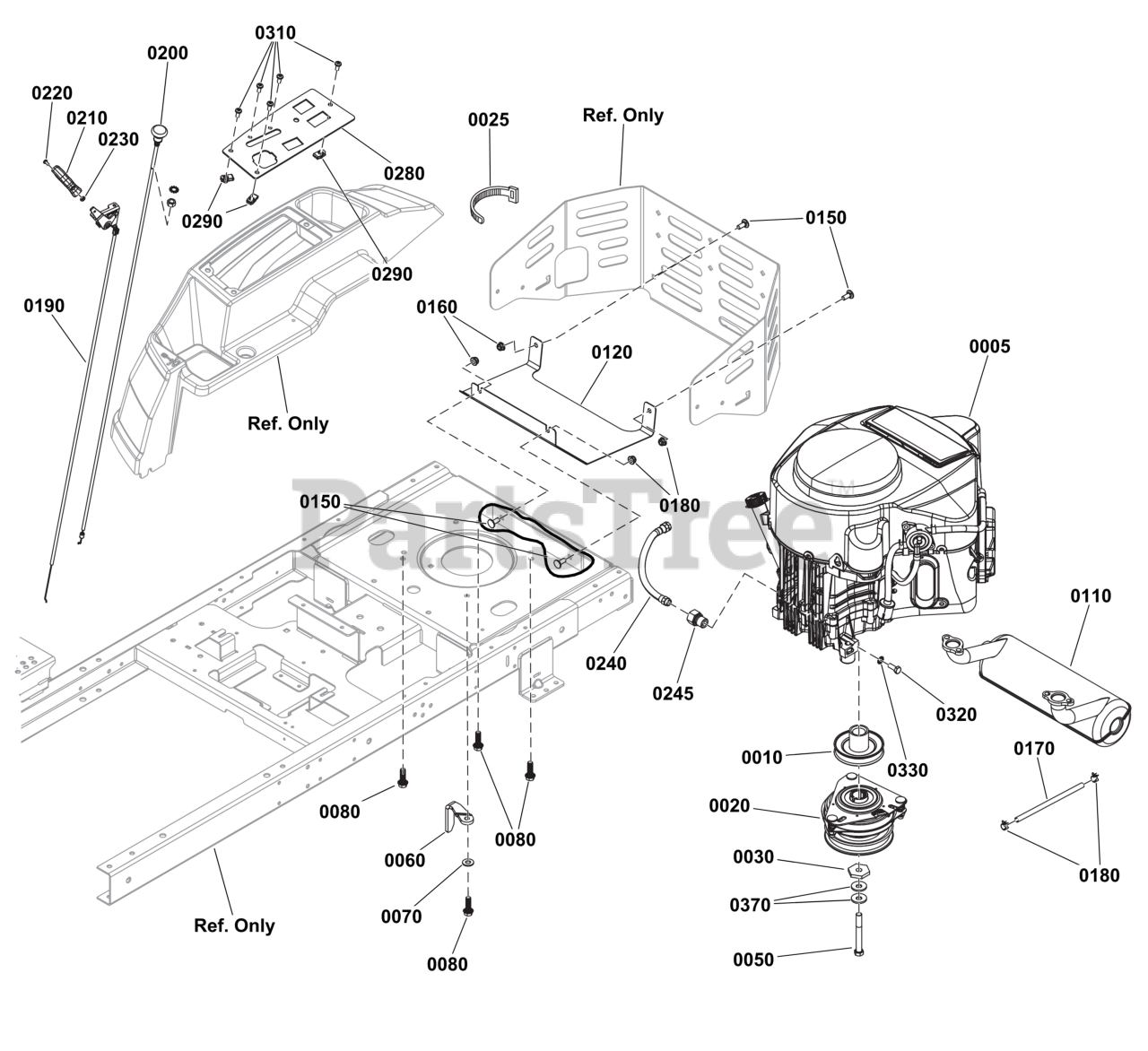

Engine Group Parts Diagram

  • Title

0005

ENGINE, KAWASAKI 21.5 FR651

Note: ( Refer to Note: *) ( Engine Model: FR651V )Note:* Verify your specific engine model, reference the ID Tag located on your engine. Refer to your local Kawasaki distributor for parts and service.

$

$

Not available

0010

Ferris 1757995YP

ASSEMBLY-PULLEY

$41.99

$

Usually ships in 2-12 days

0

0020

Ferris 84007950

CLUTCH

$

$

Currently unavailable

0025

Ferris 703586

TIE, SELF LOCKING

$4.99

$

In Stock, only 3 left!

0

0030

Ferris 1708264SM

WASHER, HEX, 0.453ID

$8.99

$

In Stock, only 3 left!

0

0050

Ferris 771023

CAPSCREW, Hex Head, Loctite, 7/16-20 x 3 1/2

Note: ( Torque bolt to 45 - 50 ft-lbs (61 - 67 Nm))

$6.99

$

In Stock, only 1 left!

0

0060

Ferris 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, Qty 7

0

0070

Ferris 703878

WASHER, FLAT

$3.99

$

In Stock, Qty 20+

0

0080

Ferris 84003591

BOLT, FLANGE

Note: ( Torque bolt to 45 - 50 ft-lbs (61 - 67 Nm))

$3.49

$

In Stock, Qty 7

0

0110

Ferris 1758352YP

MUFFLER

$220.99

$

Usually ships in 2-12 days

0

0120

Ferris 1759502AYP

SHIELD, Heat

$67.99

$

Usually ships in 2-12 days

0

0150

Ferris 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 20+

0

0160

Ferris 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0170

Ferris 5050831X20YP

HOSE, 1/4" FUEL, 20.00"

$8.49

$

Usually ships in 2-12 days

0

0180

Ferris 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

0190

Ferris 1759205YP

CONTROL-THROTTLE

$45.99

$

In Stock, Qty 5

0

0200

Ferris 5100184SM

CABLE, CHOKE CONTROL,

$43.99

$

In Stock, Qty 6

0

0210

Ferris 1739312YP

KNOB, THROTTLE

$11.99

$

In Stock, only 2 left!

0

0220

Ferris 797483

SCREW

$4.99

$

Usually ships in 2-12 days

0

0230

Ferris 703460

NUT, Hex #8-32

$3.99

$

In Stock, only 2 left!

0

0240

Ferris 1726498SM

HOSE-OIL DRAIN .375ID

$28.99

$

Usually ships in 2-12 days

0

0245

Ferris 5022234SM

ADAPTER, OIL DRAIN

$16.99

$

In Stock, only 2 left!

0

0280

Ferris 1759431AYP

PANEL, Control (Choke & Hourmeter) Black

$41.99

$

Usually ships in 2-12 days

0

0290

Ferris 5022665SM

BODY CLIP, 1/4-20 X 1

$3.49

$

Usually ships in 2-12 days

0

0310

Ferris 7090999FS

SCREW

$4.49

$

Usually ships in 2-12 days

0

0320

Ferris 703988

CAPSCREW M8-1.25X16

$3.49

$

Usually ships in 2-12 days

0

0330

Ferris 703138

WASHER

$3.99

$

In Stock, only 3 left!

0

0370

Ferris 5025585YP

BELLEVILLE WASHER

$4.49

$

In Stock, Qty 16

0
