300S (5902211) - Ferris 300S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton Engine Group Parts Diagram

300S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

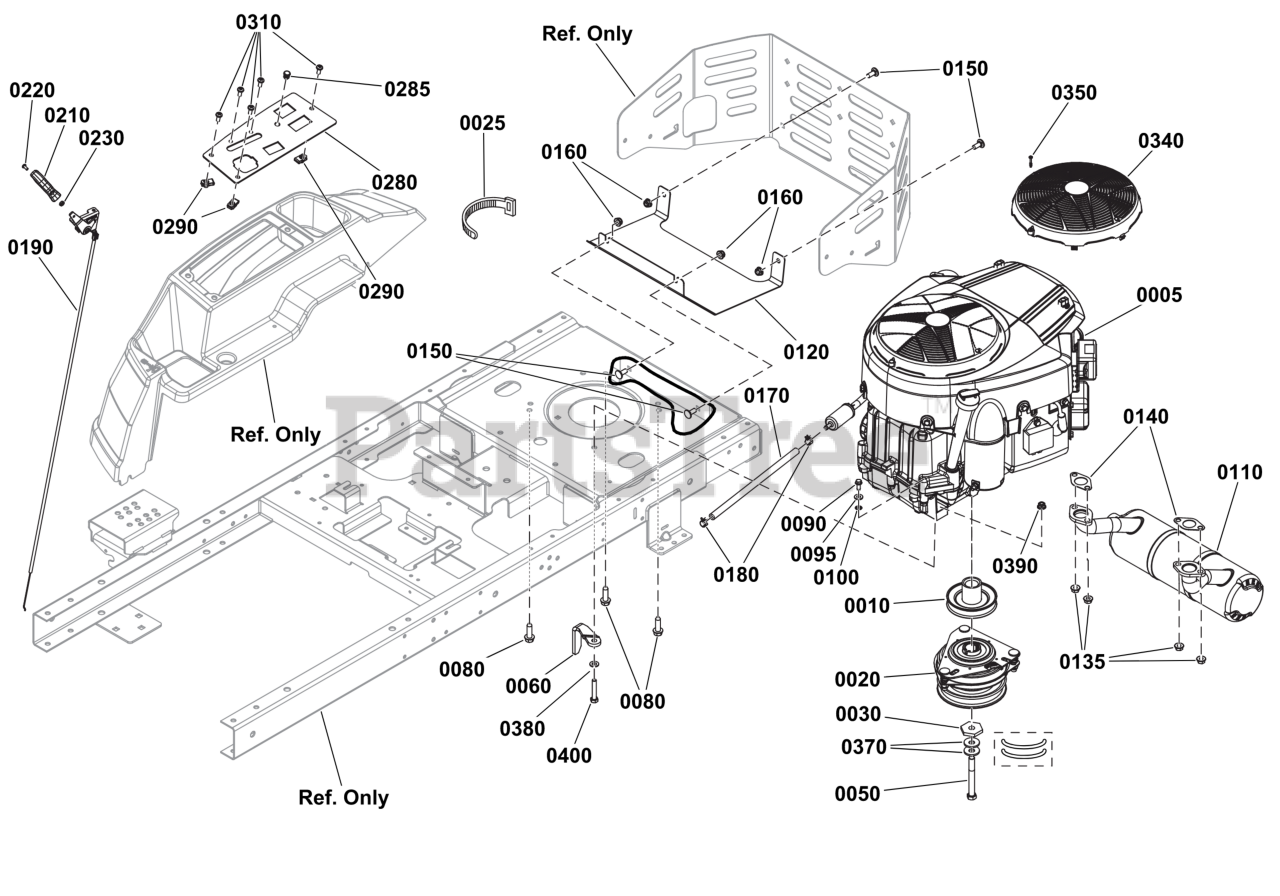

Engine Group Parts Diagram

  • Title

0005

ENGINE, Briggs & Stratton, 44U777-0010-G1

Note: ( Refer to Note: *) ( Engine Model: 44U777-0010-G1 )Note:* Verify your specific engine model, reference the ID Tag located on your engine. Refer to your local Briggs & Stratton distributor for parts and service.

$

$

Not available

0010

Ferris 1757995YP

ASSEMBLY-PULLEY

$41.99

$

Usually ships in 2-12 days

0

0020

Ferris 1736105SM

CLUTCH, ELECTRIC

$397.99

$

In Stock, only 1 left!

0

0025

Ferris 703586

TIE, SELF LOCKING

$4.99

$

In Stock, only 3 left!

0

0030

Ferris 1708264SM

WASHER, HEX, 0.453ID

$8.99

$

In Stock, only 3 left!

0

0050

Ferris 771023

CAPSCREW, Hex Head, Loctite, 7/16-20 x 3 1/2

Note: ( Torque bolt to 45 - 50 ft-lbs (61 - 67 Nm))

$6.99

$

In Stock, only 1 left!

0

0060

Ferris 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, Qty 7

0

0080

Ferris 75246GS

TAPTITE

Note: ( Torque bolt to 32 - 45 ft-lbs (43 - 61 Nm))

$4.49

$

Usually ships in 2-12 days

0

0090

Ferris 703054

SCREW, 1/4-20X0.625

$4.49

$

In Stock, Qty 10

0

0095

Ferris 703332

WASHER

$4.49

$

In Stock, Qty 20+

0

0100

Ferris 1921880SM

LOCKWASHER-EXTERNALTO

$3.49

$

Usually ships in 2-12 days

0

0110

Ferris 84008807

MUFFLER ASSEMBLY

$

$

Currently unavailable

0120

Ferris 1759502AYP

SHIELD, Heat

$67.99

$

Usually ships in 2-12 days

0

0135

Ferris 690941

NUT

Note: ( Torque bolt to 100 - 120 in-lbs (11 - 14 Nm))

$5.49

$

In Stock, Qty 9

0

0140

Ferris 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

0150

Ferris 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 20+

0

0160

Ferris 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0170

Ferris 5050831X11FS

HOSE, FUEL

$6.99

$

Usually ships in 2-12 days

0

0180

Ferris 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

0190

Ferris 1759205YP

CONTROL-THROTTLE

$45.99

$

In Stock, Qty 5

0

0210

Ferris 1739312YP

KNOB, THROTTLE

$11.99

$

In Stock, only 2 left!

0

0220

Ferris 797483

SCREW

$4.99

$

Usually ships in 2-12 days

0

0230

Ferris 703460

NUT, Hex #8-32

$3.99

$

In Stock, only 2 left!

0

0280

Ferris 1759431AYP

PANEL, Control (Choke & Hourmeter) Black

$41.99

$

Usually ships in 2-12 days

0

0285

Ferris 7046780SM

PLUG, Hole, .44” OD

$4.99

$

In Stock, only 2 left!

0

0290

Ferris 5022665SM

BODY CLIP, 1/4-20 X 1

$3.49

$

Usually ships in 2-12 days

0

0310

Ferris 7090999FS

SCREW

$4.49

$

Usually ships in 2-12 days

0

0340

Ferris 797420YP

GUARD, Debris Screen

$39.99

$

Usually ships in 2-12 days

0

0350

Ferris 799359

SCREW

$4.99

$

In Stock, Qty 13

0

0370

Ferris 5025585YP

BELLEVILLE WASHER

$4.49

$

In Stock, Qty 16

0

0380

Ferris 703350

WASHER

$4.49

$

In Stock, Qty 20+

0

0390

Ferris 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0400

Ferris 5025011X14SM

BOLT, 5/16-18 X 1-3/4

Note: ( Torque bolt to 15 - 19 ft-lbs (20 - 26 Nm))

$3.99

$

In Stock, Qty 11

0
