300S (5902211) - Ferris 300S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton Transmission Group Parts Diagram

300S Series 48" Zero-Turn Mower, 23hp Briggs & Stratton

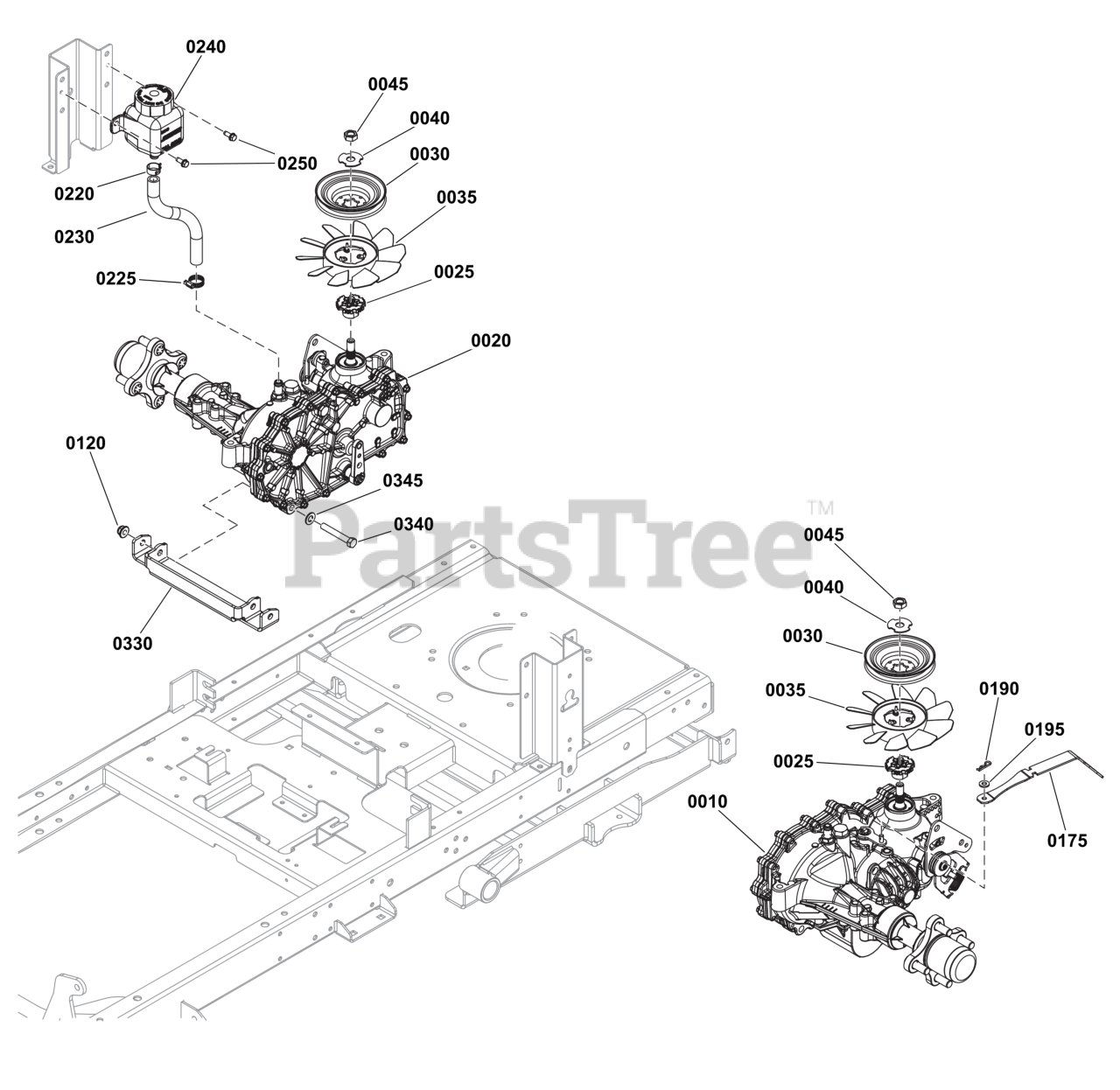

Transmission Group Parts Diagram

  • Title

0010

Ferris 84007996

TRANSAXLE

Note: ( TRANSAXLE, ZT2800, ZH-JPBB-SF7B-2XLX )

$1002.99

$

Usually ships in 2-12 days

0

0020

Ferris 84008003

TRANSAXLE

Note: ( TRANSAXLE, ZT2800, ZH-MPBB-SF7C-3XLX )

$966.99

$

Usually ships in 2-12 days

0

0025

Ferris 84003847

HUB

$8.49

$

Usually ships in 2-12 days

0

0030

Ferris 1759447YP

PULLEY, Transmission

$27.99

$

In Stock, only 4 left!

0

0035

Ferris 1759449YP

FAN, Input

$15.99

$

In Stock, Qty 6

0

0040

Ferris 5102914YP

WASHER, ZT5400, SLOTT

$4.49

$

In Stock, Qty 7

0

0045

Ferris 5102916YP

NUT, ZT5400

Note: (Torque to 45 - 55 ft-lbs (61 - 75 Nm))

$3.49

$

In Stock, only 1 left!

0

0120

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0175

Ferris 1759276AYP

VALVE-TOW

$15.99

$

Usually ships in 2-12 days

0

0190

Ferris 703430

PIN, 13X1.19

$3.49

$

In Stock, Qty 9

0

0195

Ferris 703332

WASHER

$4.49

$

In Stock, Qty 20+

0

0220

Ferris 5025474SM

CLAMP - HOSE

$3.49

$

In Stock, Qty 17

0

0225

Ferris 5021392SM

CLAMP, #6 HOSE, STAIN

$4.99

$

In Stock, Qty 12

0

0230

Ferris 5050857X9P5YP

HOSE, 9.50

$13.99

$

In Stock, Qty 7

0

0240

Ferris 5100473SM

RESERVOIR

Note: (Includes item #0240-10.)

$43.99

$

In Stock, Qty 14

0

0240-10

Ferris 5100778X1YP

RESERVIOR CAP (SV)

Note: (Not illustrated.)

$

$

Currently unavailable

0250

Ferris 703054

SCREW, 1/4-20X0.625

$4.49

$

In Stock, Qty 10

0

0330

Ferris 1759172AYP

SUPPORT

$67.99

$

Usually ships in 2-12 days

0

0340

Ferris 84007037

BOLT

$2.99

$

In Stock, Qty 19

0

0345

Ferris 5025156FS

WASHER

$3.49

$

Usually ships in 2-12 days

0
