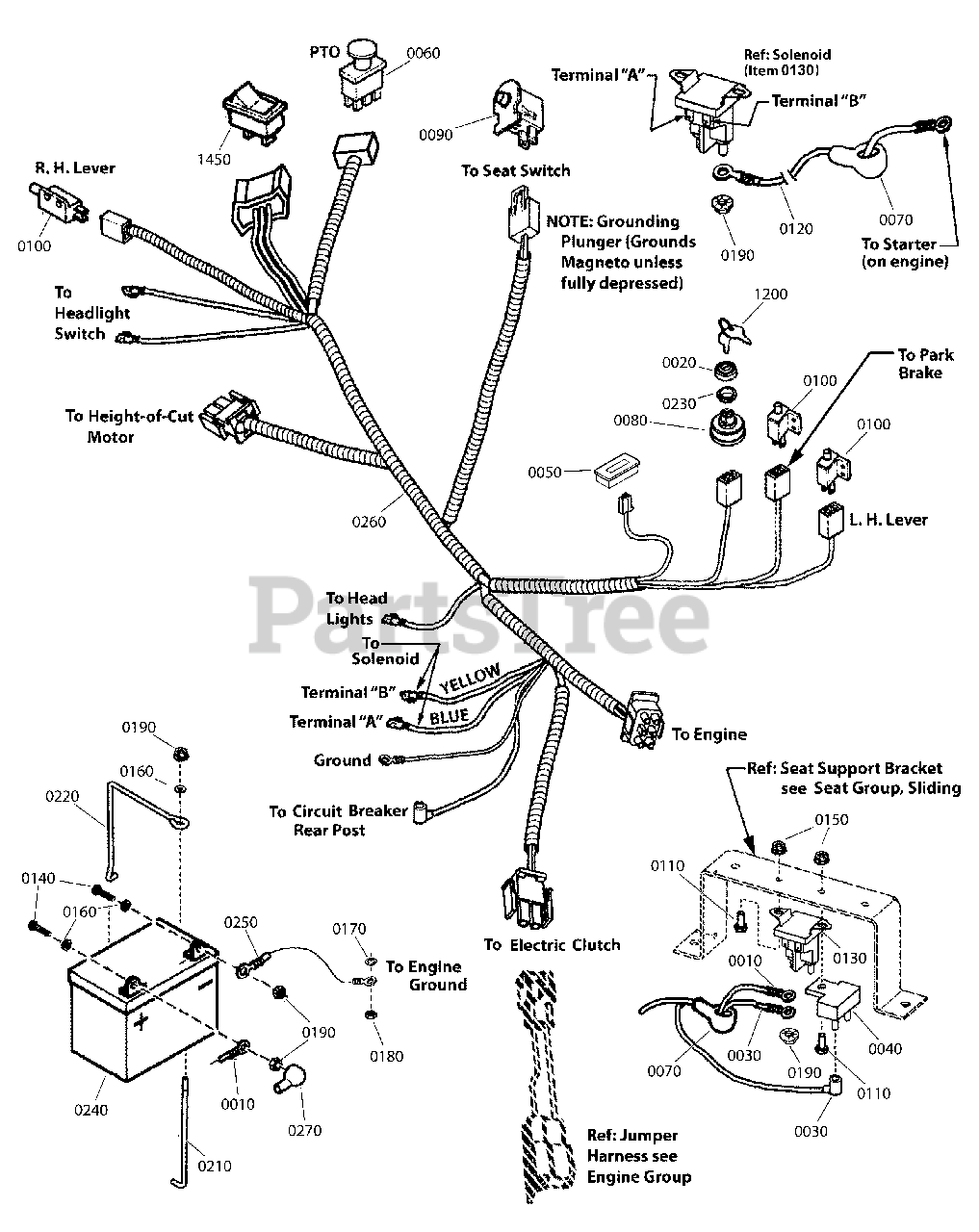

300Z (ZT 2752) (2691035-01) - Snapper 52"/132cm Zero-Turn Mower, 27hp Electrical Group, w/Hour Meter Parts Diagram

52"/132cm Zero-Turn Mower, 27hp

Electrical Group, w/Hour Meter Parts Diagram

  • Title

0010

Snapper 024X31MA

CABLE, Battery, 8 Gauge, Red, 18, 1/4 Terminals

Note: (Was 720348)

$7.49

$

Usually ships in 2-12 days

0

0020

Snapper 091488MA

CAP, Ignition Switch

Note: (Was 727338

$4.99

$

In Stock, only 4 left!

0

0030

Snapper 1665237SM

WIRE, Red, 12GA, 8"

$11.99

$

In Stock, only 1 left!

0

0040

Snapper 1665238SM

BREAKER, Circuit, 12Volt, 20 AMPS W/Tab

$14.99

$

In Stock, Qty 9

0

0050

Snapper 1731185SM

METER-HOUR, Digital No Alarms

$60.99

$

In Stock, only 1 left!

0

0060

Snapper 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

0070

Snapper 1724588SM

COVER, Terminal Red Vinyl

$4.99

$

Usually ships in 2-12 days

0

0080

Snapper 1737853YP

SWITCH ASSEMBLY, Ignition, No Keys/Hdwe.

$35.99

$

Usually ships in 2-12 days

0

0090

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0

0100

Snapper 7023355YP

SWITCH, DPDT (NO/NC)
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 12

0

0110

Snapper 703338

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0

0120

Snapper 7042956SM

CABLE, Battery, 8 Gauge, Black, 14, 1/4 Terminals
(Superseded to 7028027YP)

$10.99

$

In Stock, only 2 left!

0

0130

Snapper 7075622SM

SOLENOID, Super Trombetta, 2 Terminal
(Superseded to 1755382YP)

$29.99

$

In Stock, Qty 10

0

0140

Snapper 703338

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0

0150

Snapper 7090372SM

NUT, Hex Cap Lock, 1/4C GR5 BZ
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0160

Snapper 22473GS

FLAT WASHER, M6 - 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

0170

Snapper 7091315SM

WASHER, Split Lock, .32X.58X.08 YZ
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0180

Snapper 703465

NUT, 5/16-18, GR5

$4.49

$

Usually ships in 2-12 days

0

0190

Snapper 703223

NUT, Hex-Flange, Whiz-Lock, 1/4-20

$4.49

$

Usually ships in 2-12 days

0

0210

Snapper 7100308SM

HOLD DOWN ROD, Battery, 1/4 x 7, 1/4-20 UNC-2A

$7.99

$

In Stock, only 1 left!

0

0220

Snapper 7100309SM

BRACKET, Battery

$10.99

$

Usually ships in 2-12 days

0

0230

Snapper 7100329YP

NUT, 5/8-32, ES
(Superseded to 703995)

$5.99

$

Usually ships in 2-12 days

0

0240

Snapper 7060618YP

BATTERY, 12 Volt, 230 CCA

$

$

Not available

0250

Snapper 7100636SM

CABLE, Battery, 8 Gauge, Black, 20, 1/4 & 5/16 Terminals

$8.99

$

Usually ships in 2-12 days

0

0260

Snapper 7103412YP

HARNESS, Wiring, RZT

$103.99

$

Usually ships in 2-12 days

0

0270

Snapper 7012444YP

COVER, Battery Cable
(Superseded to 1677296SM)

$6.49

$

In Stock, only 2 left!

0

1200

Snapper 1737837YP

KEYS, Blister Pk (KIDS+MWRS DON'T MIX) English/French (set of two, one coated)

$21.99

$

Usually ships in 2-12 days

0

1450

Snapper 1734141SM

SWITCH, Rocker Height of Cut

$47.99

$

Usually ships in 2-12 days

0
