301 (190-301-100) - Cub Cadet 48" Mower Deck 48" Deck Assembly Parts Diagram

48" Mower Deck

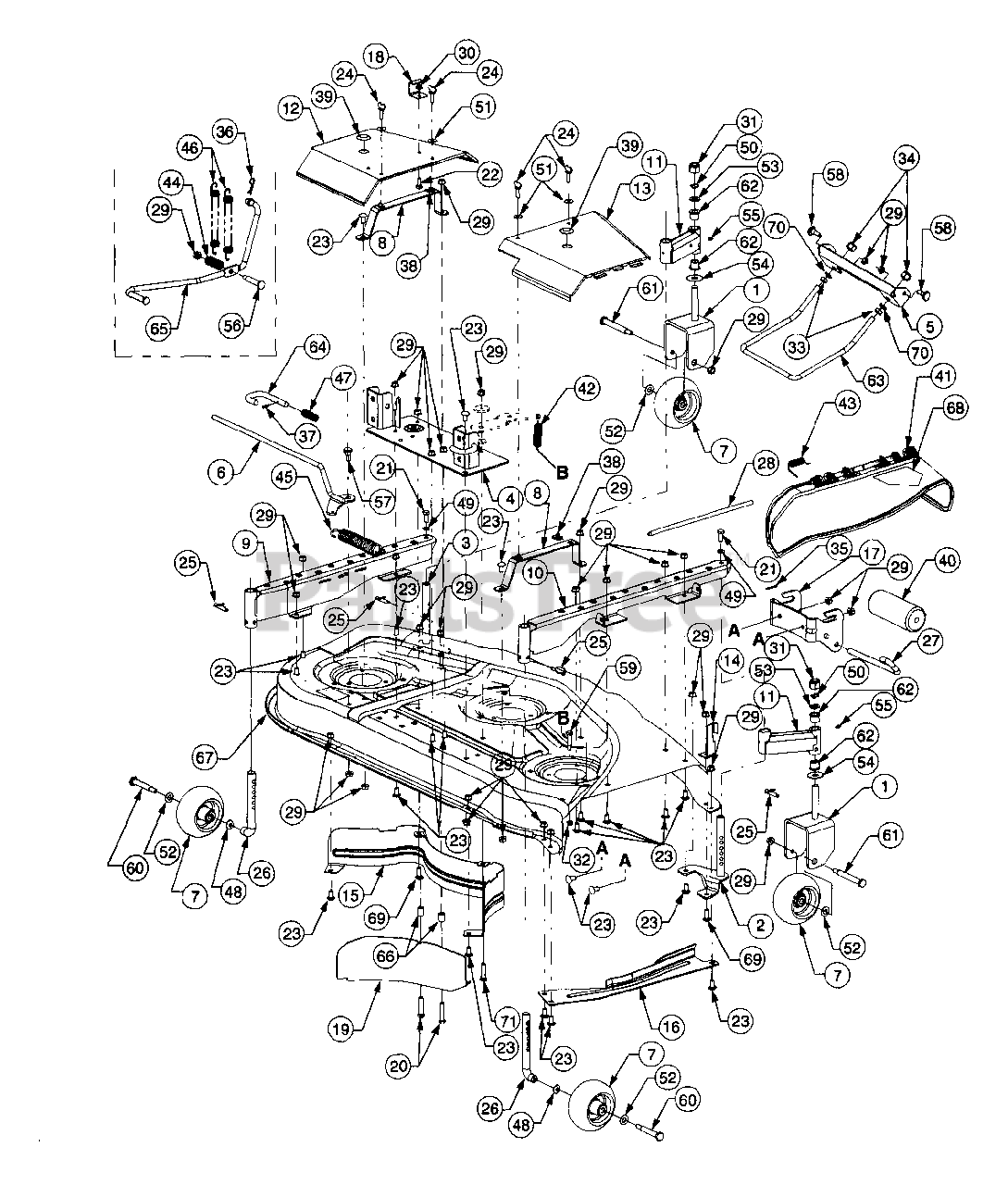

48" Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0031A-0498

Bracket, Castor Wheel
(Superseded to 603-0031A-4021)

$83.99

$

In Stock, Qty 19

0

Cub Cadet 603-0031A-0716

Bracket, Castor Wheel
(Superseded to 603-0031A-4021)

$83.99

$

In Stock, Qty 19

0

2

Cub Cadet 603-0110

Spindle Assy, RH Front
(Superseded to 903-0110)

$

$

Not available

3

Cub Cadet 603-0111

Spindle Assy, LH Front
(Superseded to 903-0111)

$

$

Not available

4

Cub Cadet 603-0183A

Plate Assy, Mounting

Variations

603-0183A-0637

Cub Cadet 603-0183A-0637

Mounting Plate Assembly - POWDER BLACK (0637)

$

$

Not available

603-0183A-0716

Cub Cadet 603-0183A-0716

Mounting Plate Assembly - CUB YELLOW-99 (0716)

$

$

Not available

603-0183A-4021

Cub Cadet 603-0183A-4021

PLATE ASM-MOUNTING - CUB YELLOW 2 (4021)

$

$

Not available

$

$

5

Cub Cadet 603-0200-0498

Bracket, Front Lift
(Superseded to 703-2248-0716)

$50.99

$

In Stock, Qty 5

0

Cub Cadet 603-0200-0716

Bracket, Front Lift
(Superseded to 703-2248-0716)

$50.99

$

In Stock, Qty 5

0

6

Cub Cadet 603-0203

Handle, Tension
(Superseded to 603-04113-0637)

Variations

603-0203-0716

Cub Cadet 603-0203-0716

USE 603-04113-0637 HANDLE ASS - CUB YELLOW-99 (0716)

$75.99

$

Usually ships in 3-6 days

0

$75.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-1890

Wheel, Ball w/Fitting, 5 in.
(Superseded to 703-1890A)

$41.99

$

In Stock, Qty 20+

0

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 703-2072

Strap, Mounting

Variations

703-2072-0498

Cub Cadet 703-2072-0498

STRAP-MOUNTING - OLD CUB YELLOW (0498)

$26.99

$

Usually ships in 3-6 days

0

703-2072-4021

Cub Cadet 703-2072-4021

STRAP-MOUNTING - CUB YELLOW 2 (4021)

$26.99

$

Usually ships in 3-6 days

0

703-2072-0637

Cub Cadet 703-2072-0637

STRAP-MOUNTING - POWDER BLACK (0637)

$

$

Not available

703-2072-0716

Cub Cadet 703-2072-0716

STRAP-MOUNTING - CUB YELLOW-99 (0716)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-2081A-0498

Channel, LH Castor
(Superseded to 703-2081A-0716)

$

$

Not available

Cub Cadet 703-2081A-0716

Channel, LH Castor

$

$

Not available

10

Cub Cadet 703-2083-0498

Channel, RH Castor
(Superseded to 703-2083-0716)

$

$

Not available

Cub Cadet 703-2083-0716

Channel, RH Castor

$

$

Not available

11

Cub Cadet 703-2094-0498

Castor Assembly, Front
(Superseded to 703-2094-4021)

$94.99

$

In Stock, only 1 left!

0

Cub Cadet 703-2094-0716

Castor Assembly, Front
(Superseded to 703-2094-4021)

$94.99

$

In Stock, only 1 left!

0

12

Cub Cadet 703-2096B-0498

Guard, LH Belt
(Superseded to 703-2096C-0716)

$

$

Not available

Cub Cadet 703-2096B-0716

Guard, LH Belt
(Superseded to 703-2096C-0716)

$

$

Not available

13

Cub Cadet 703-3240-0498

Guard, RH Belt
(Superseded to 703-3240-0716)

$94.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3240-0716

Guard, RH Belt

$94.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-2121A

Stop, Chute Deflector

$

$

Not available

15

Cub Cadet 703-2161-0498

Baffle, Rear Inner
(Superseded to 703-2161-0637)

$117.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2161-0716

Baffle, Rear Inner
(Superseded to 703-2161-0637)

$117.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-2192-0498

Guard, Finger
(Superseded to 703-3511B-0637)

$74.99

$

In Stock, Qty 20+

0

Cub Cadet 703-2192-0716

Guard, Finger
(Superseded to 703-3511B-0637)

$74.99

$

In Stock, Qty 20+

0

17

Cub Cadet 703-2479-0498

Bracket, Front Roller
(Superseded to 703-2479-0716)

$

$

Not available

Cub Cadet 703-2479-0716

Bracket, Front Roller

$

$

Not available

18

Cub Cadet 703-2559-0498

Bracket, Handle Stop
(Superseded to 703-2559-0716)

$

$

Not available

Cub Cadet 703-2559-0716

Bracket, Handle Stop
(Superseded to 703-2559-0637)

$

$

Not available

19

Cub Cadet 703-2607-0498

Baffle

$

$

Not available

Cub Cadet 703-2607-0716

Baffle

$

$

Not available

20

Cub Cadet 710-0347

Screw, Hex Cap, 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3001

Screw, Hex Cap, 3/8-16 x .88 GR5

$7.49

$

In Stock, Qty 5

0

22

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75 GR5

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-3232

Screw, Thumb Adj, 5/16-18 x 1

$10.99

$

In Stock, Qty 5

0

25

Cub Cadet 711-3266

Pin, Clevis w/Ball Detent

$16.99

$

In Stock, Qty 8

0

26

Cub Cadet 711-3312

Axle, Deck Castor

$73.99

$

In Stock, only 2 left!

0

27

Cub Cadet 711-3314

Pin, Roller, 1/2 Dia x 7.31
(Superseded to 711-3314A)

$27.99

$

In Stock, Qty 17

0

28

Cub Cadet 711-3318

Pin, Hinge, .375 Dia x 12.55

Note: Used November 18, 2001 and before

$

$

Not available

Cub Cadet 711-1672

Pin, Hinge, .375 Dia x 14.06

Note: Used November 19, 2001 and after

$

$

Currently unavailable

29

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-3004A

Nut, Hex Flanged Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-3016

Nut, Hex Top Lock, 5/8-11 GR5

$7.49

$

In Stock, Qty 14

0

32

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 15

0

33

Cub Cadet 712-3048

Nut, Hex Jam, 1/2-13 GR5

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 712-3083

Nut, Hex Top Nylon Lock, 1/2-13

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia x 1

$4.49

$

In Stock, only 1 left!

0

36

Cub Cadet 714-0145

Pin, Int. Cotter, .092 Dia. x 1.63

$5.49

$

In Stock, Qty 20+

0

37

Cub Cadet 715-3003

Pin, Spirol, 3/16 x .75

$7.49

$

In Stock, Qty 5

0

38

Cub Cadet 726-0211

U-Nut, 5/16-18

$4.99

$

In Stock, only 2 left!

0

39

Cub Cadet 726-3045

Plug, Button
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 14

0

40

Cub Cadet 731-3005

Roller

$30.99

$

In Stock, Qty 20+

0

41

Cub Cadet 731-3131A

Deflector, Chute
(Superseded to 931-3131A)

$114.99

$

In Stock, only 2 left!

0

42

Cub Cadet 732-0478

Spring, Extension, .75 OD x 6.12
(Superseded to 932-0478)

$13.99

$

In Stock, Qty 5

0

43

Cub Cadet 732-3070

Spring, Torsion
(Superseded to 732-3070A)

$12.99

$

In Stock, only 1 left!

0

44

Cub Cadet 732-3094

Spring, Compression, .63 ID x 2
(Superseded to 932-3094)

$10.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 732-0861

Spring, Extension, 1.25 OD x 7.2

$32.99

$

In Stock, Qty 8

0

46

Cub Cadet 732-3126

Spring, Extension, .91 OD x 7.33
(Superseded to 932-3126)

$22.99

$

In Stock, only 3 left!

0

47

Cub Cadet 732-3127

Spring, Compression
(Superseded to 932-3127)

$4.99

$

In Stock, Qty 12

0

48

Cub Cadet 736-0105

Washer, Bell, .380 x .88 x .062

$4.99

$

In Stock, Qty 20+

0

49

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 736-0174

Washer, Wave, .625 x .885 x .015

$7.49

$

In Stock, only 2 left!

0

51

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .060

$4.99

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0272

Washer, Flat, .510 x 1 x .060

$5.49

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0290

Washer, Flat, .63 x 1 x .063

$7.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 736-3088

Washer, Flat, .635 x 1.585 x .062

$4.49

$

In Stock, Qty 12

0

55

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

56

Cub Cadet 738-0129

Bolt, Shoulder

$11.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 738-0143

Bolt, Shoulder, .498 Dia x .340

$4.49

$

In Stock, Qty 17

0

58

Cub Cadet 738-0507B

Bolt, Shoulder, .500 Dia x .434

$4.99

$

In Stock, Qty 9

0

59

Cub Cadet 738-0572

Bolt, Shoulder, .374 Dia x 1.16

$8.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 738-3056

Bolt, Shoulder
(Superseded to 938-3056)

$9.99

$

In Stock, Qty 20+

0

61

Cub Cadet 738-3093

Bolt, Step Shoulder

$20.99

$

In Stock, only 2 left!

0

62

Cub Cadet 741-0353

Bearing, Flange

$11.99

$

In Stock, Qty 20+

0

63

Cub Cadet 747-3172B

Rod, Front Lift
(Superseded to 747-3172C)

$76.99

$

In Stock, Qty 8

0

64

Cub Cadet 747-3188

Pin, Mower Support

$36.99

$

In Stock, Qty 6

0

65

Cub Cadet 747-3237

Rod, LH Lift Assist
(Superseded to 747-3237A)

Note: Used November 14, 2001 and before

$91.99

$

Usually ships in 3-6 days

0

Cub Cadet 747-3237A

Rod, LH Lift Assist

Note: Used November 15, 2001 and after

$91.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 750-0639

Spacer, .437 ID x .625 OD x .75

$3.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 759-3733-0498

Deck Assembly w/Graphics

$

$

Not available

Cub Cadet 759-3733-0716

Deck Assembly w/Graphics

$

$

Not available

Cub Cadet 777S30015

Graphic, Rider Danger

$9.99

$

Usually ships in 3-6 days

0

Cub Cadet 777S30010

Graphic, Danger
(Superseded to 777S30503)

Note: (Mfg. Date A300G and Before

$12.99

$

In Stock, only 2 left!

0

Cub Cadet 777S30503

Graphic, Danger

Note: (Mfg. Date A310G and After

$12.99

$

In Stock, only 2 left!

0

Cub Cadet 777S30012

Graphic, Assemble Chute
(Superseded to 777S30295)

Note: (Mfg Date I129 and Before)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 777S30014

Graphic, Caution Spring Tension

$10.99

$

In Stock, only 1 left!

0

Cub Cadet 777S30295

Graphic, Assemble Chute

Note: (Mfg Date I139 and After)

$22.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 777S30145

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

69

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.99

$

In Stock, Qty 14

0

71

Cub Cadet 710-0520

Screw, Hex Cap 3/8-16 x 1.5 GR5

$4.99

$

In Stock, Qty 16

0
