30103 - Toro ProLine Walk-Behind Mower, Gear Drive, 12hp (SN: 008000001 - 008999999) (1988) Axle Assembly Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12hp

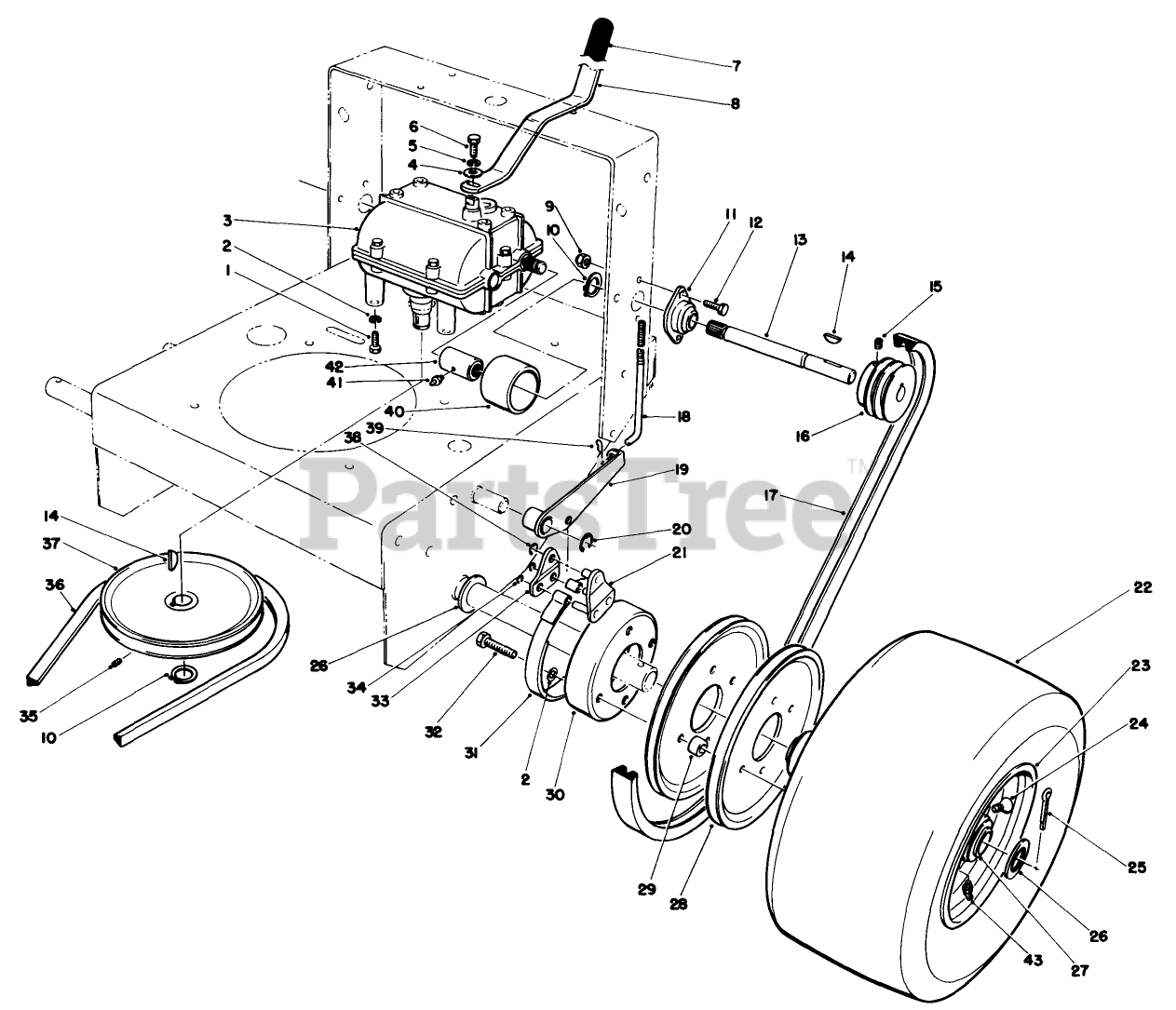

Axle Assembly Parts Diagram

  • Title

1

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

3

Toro 51-4090

See Supercession: 74-0610
(Superseded to 74-0610)

$

$

Not available

4

Toro 7-5461

SPACER

$2.99

$

Usually ships in 3-6 days

0

5

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 329-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 47-1970

GRIP

$17.99

$

Usually ships in 3-6 days

0

8

Toro 51-4150

LEVER-SHIFT *R

$

$

Not available

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 32120-64

RING-SNAP, EXTERNAL

$3.99

$

In Stock, Qty 6

0

11

Toro 51-4270

BEARING-EXTERNAL SHAFT

$49.99

$

In Stock, only 2 left!

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 51-4240

SHAFT-EXTENSION, RH

$84.99

$

In Stock, only 2 left!

0

Toro 51-4250

SHAFT-EXTENSION, LH

$72.99

$

In Stock, only 1 left!

0

14

Toro 3257-41

KEY-WOODRUFF

$

$

Not available

15

Toro 3246-6

SCREW-SET, HSH

$7.99

$

In Stock, only 2 left!

0

16

Toro 51-4280

See Supercession: 99-5878
(Superseded to 99-5878)

$99.99

$

Usually ships in 3-6 days

0

17

Toro 51-4290

V-BELT

$100.99

$

In Stock, only 2 left!

0

18

Toro 51-4580

ROD-BRAKE

$64.99

$

Usually ships in 3-6 days

0

19

Toro 51-4610

See Supercession: 106-5537-01
(Superseded to 106-5537-01)

$149.99

$

Usually ships in 3-6 days

0

Toro 51-4600

See Supercession: 106-5537-01
(Superseded to 106-5537-01)

$149.99

$

Usually ships in 3-6 days

0

20

Toro 32151-40

RING-RETAINING

$7.99

$

In Stock, only 3 left!

0

21

Toro 51-4650

See Supercession: 51-4650-01
(Superseded to 51-4650-01)

$

$

Not available

22

Toro 231-111

TIRE

$122.99

$

Usually ships in 3-6 days

0

23

Toro 242-80

WHEEL AND HUB ASM

$

$

Not available

24

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$7.99

$

In Stock, only 4 left!

0

25

Toro 3272-30

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

26

Toro 51-4230

WASHER-WHEEL

$14.99

$

In Stock, only 1 left!

0

27

Toro 251-321

BEARING-BALL, FLANGED

$28.99

$

In Stock, only 1 left!

0

28

Toro 51-4160

See Supercession: 51-4160-03
(Superseded to 51-4160-03)

$71.99

$

Usually ships in 3-6 days

0

29

Toro 51-4170

SPACER-PULLEY

$

$

Not available

30

Toro 51-4180

See Supercession: 51-4180-03
(Superseded to 51-4180-03)

$81.99

$

Usually ships in 3-6 days

0

31

Toro 51-4700

BAND-BRAKE

$76.99

$

In Stock, Qty 9

0

32

Toro 322-7

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

33

Toro 51-4660

See Supercession: 51-4660-01
(Superseded to 51-4660-01)

$40.99

$

Usually ships in 3-6 days

0

34

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

35

Toro 3245-5

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

36

Toro 26-9670

V-BELT

$26.99

$

In Stock, only 4 left!

0

37

Toro 51-4190

PULLEY-DRIVEN

$99.99

$

In Stock, only 2 left!

0

38

Toro 32151-56

RING-RETAINING, EXTERNAL

$6.99

$

In Stock, only 2 left!

0

39

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

40

Toro 51-4220

GUARD-COUPLER

$21.99

$

In Stock, only 1 left!

0

41

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

42

Toro 51-4260

COUPLER

$70.99

$

In Stock, Qty 7

0

43

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, Qty 5

0
