30108 - Toro ProLine Walk-Behind Mower, Gear Drive, 8hp (SN: 004000001 - 004999999) (1984) ENGINE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 8hp

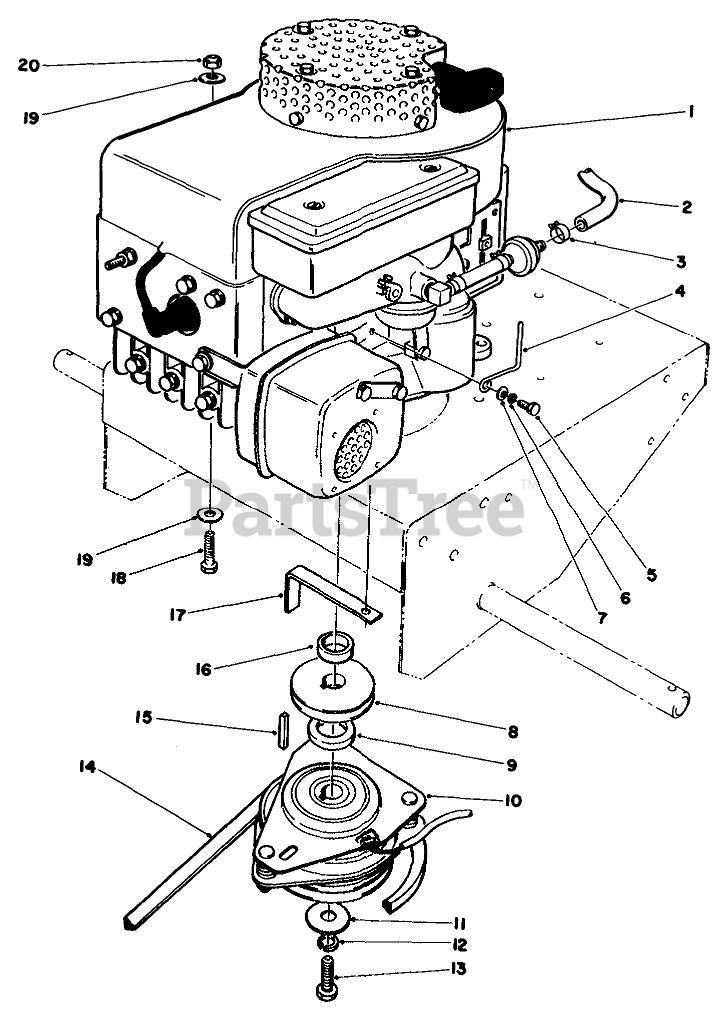

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 221-774

Engine (Complete)

$

$

Currently unavailable

2

Toro 47-2983

HOSE-FUEL
(Superseded to 109-0296)

$10.99

$

In Stock, only 4 left!

0

3

Toro 2412-33

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

4

Toro 51-4390

BRUSH GUARD

$

$

Not available

5

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

6

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 51-4460

Pulley-Drive
(Superseded to 100-3251)

$

$

Not available

9

Toro 51-3280

SPACER-LOWER

$

$

Not available

10

Toro 44-0770

Clutch Assembly-Deck
(Superseded to 54-0220)

$988.99

$

Usually ships in 3-6 days

0

11

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

12

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

13

Toro 3212-24

SCREW-HH

$21.99

$

Usually ships in 3-6 days

0

14

Toro 51-3600

Belt-Drive
(Superseded to 52-9950)

$71.99

$

Usually ships in 3-6 days

0

15

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 6

0

16

Toro 51-3290

Spacer-Upper

$

$

Not available

17

Toro 51-4540

Retainer-Clutch
(Superseded to 51-4540-03)

$19.99

$

Usually ships in 3-6 days

0

18

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 32151-1

7/8X046 IN SNAP RING

$0.99

$

Usually ships in 3-6 days

0

Toro 11-8159

Loose Parts

Note: Not Illustrated.

$

$

Currently unavailable
