30110 - Toro Tru Trak Sulky, ProLine Mid-Size Mowers (SN: 314000001 - 314999999) (2014) SULKY ASSEMBLY Parts Diagram

Tru Trak Sulky, ProLine Mid-Size Mowers

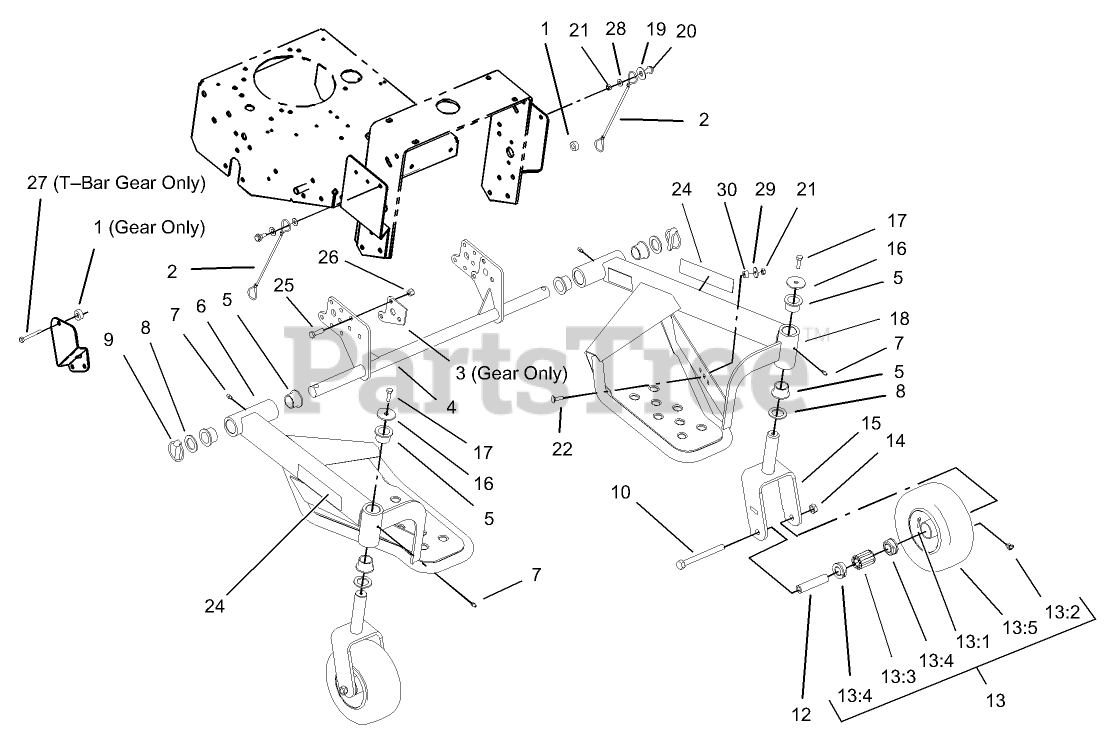

SULKY ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8426

SPACER

$10.99

$

In Stock, only 4 left!

0

2

Toro 93-9595

LANYARD

$22.99

$

Usually ships in 3-6 days

0

3

Toro 104-8425-01

PLATE-SPACER

$53.99

$

Usually ships in 3-6 days

0

4

Toro 104-8405-01

AXLE ASM

$353.99

$

Usually ships in 3-6 days

0

5

Toro 94-1291

BUSHING

$10.99

$

In Stock, Qty 20+

0

6

Toro 104-8407-01

LH FLOOR PLATE ASM

$1133.99

$

Usually ships in 3-6 days

0

7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 19

0

8

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

9

Toro 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 7

0

10

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

12

Toro 100-6453

BUSHING-SPANNER

$26.99

$

In Stock, only 3 left!

0

13

Toro 100-6451

CASTER WHEEL ASM

$158.99

$

Usually ships in 3-6 days

0

13:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

13:2

Toro 302-11

FITTING-LUBE, 45 DEG

$1.49

$

In Stock, only 4 left!

0

13:3

Toro 83-4740

BEARING

$14.99

$

In Stock, Qty 6

0

13:4

Toro 62-5580

BEARING-OUTSIDE

$6.99

$

In Stock, Qty 20+

0

13:5

Toro 100-6452

TIRE-TUBELESS

$71.99

$

In Stock, only 2 left!

0

14

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 18

0

15

Toro 104-8402-01

CASTOR ASM

$255.99

$

In Stock, only 1 left!

0

16

Toro 63-7400

WASHER-REBOUND

$2.99

$

In Stock, Qty 8

0

17

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

18

Toro 104-2743-01

RH FLOOR PLATE ASM

$1133.99

$

Usually ships in 3-6 days

0

19

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 5

0

20

Toro 94-7817

BOLT-SHOULDER

$14.99

$

Usually ships in 3-6 days

0

21

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

22

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

24

Toro 104-8477

Decal

$10.99

$

Usually ships in 3-6 days

0

25

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

27

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

28

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 1-603716

Washer-Friction

$5.49

$

In Stock, Qty 20+

0

30

Toro 98-4695

SPACER

$7.99

$

Usually ships in 3-6 days

0
