30111 - Toro ProLine Walk-Behind Mower, Gear Drive, 11hp (SN: 006000001 - 006999999) (1986) ELECTRIC START KIT MODEL NO. 30132 (OPTIONAL) Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 11hp

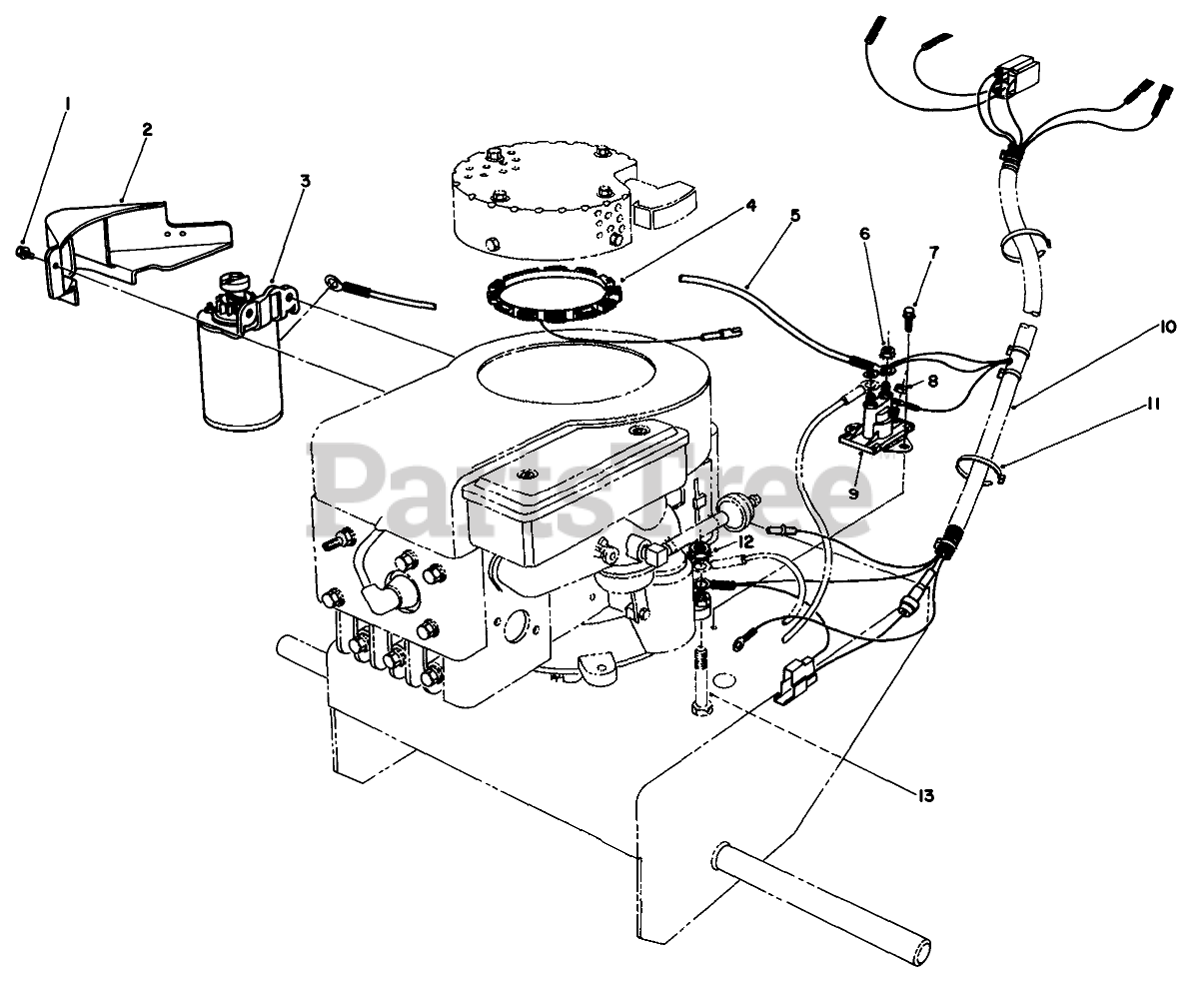

ELECTRIC START KIT MODEL NO. 30132 (OPTIONAL) Parts Diagram

  • Title

1

Briggs & Stratton 93410

Screw

$7.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 395405

Cover-Starter

$

$

Not available

3

Briggs & Stratton 394951

Starter Motor (Incl. Ref. #1 & 2)

$161.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 392595

Alternator
(Superseded to 592829)

$102.99

$

In Stock, only 3 left!

0

5

Toro 28-3891

WIRE-SOLENOID/STARTER

$27.99

$

Usually ships in 3-6 days

0

6

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

7

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

8

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

9

Toro 44-9380

Solenoid
(Superseded to 99-5887)

$79.99

$

Usually ships in 3-6 days

0

10

Toro 54-3020

WIRE HARNESS-EL START

$

$

Not available

11

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

12

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

13

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0
