30111 - Toro ProLine Walk-Behind Mower, Gear Drive, 11hp (SN: 007000001 - 007999999) (1987) BRIGGS & STRATTON MODEL NO. 253706-0223-01 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 11hp

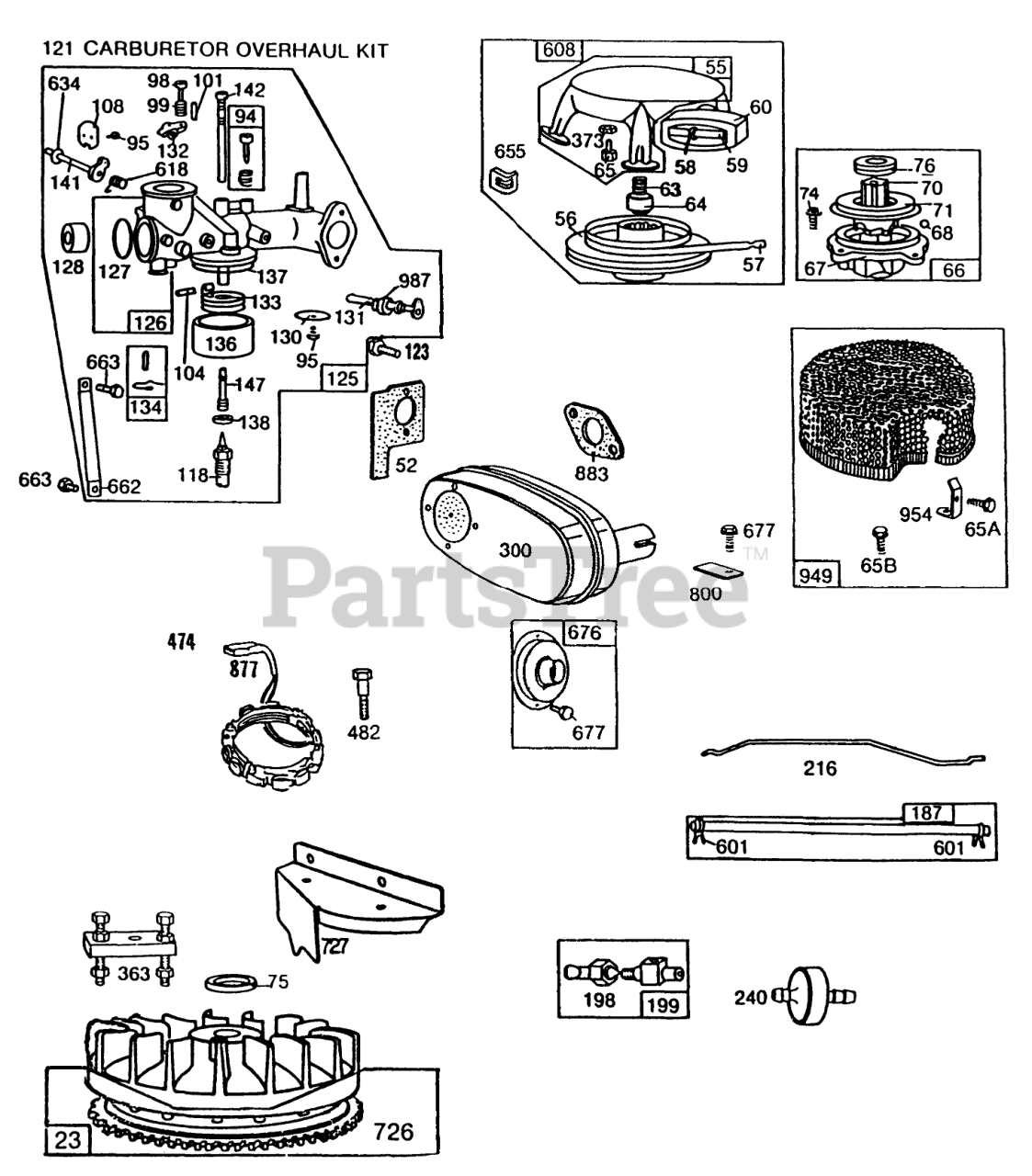

BRIGGS & STRATTON MODEL NO. 253706-0223-01 Parts Diagram

  • Title

23

Briggs & Stratton 391988

Flywheel and Ring Gear
(Superseded to 692048)

$193.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270872

Gasket-Intake
(Superseded to 498869)

Note: Included in Gasket Set-Part No. 393411.

$5.49

$

In Stock, only 4 left!

0

55

Briggs & Stratton 393576

Housing-Rewind Starter (Includes 63" Rope)

$85.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, only 2 left!

0

57

Briggs & Stratton 490179

Spring-Rewind

$14.99

$

In Stock, Qty 10

0

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, only 2 left!

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, Qty 5

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 8

0

63

Briggs & Stratton 260414

Spring
(Superseded to 690547)

$8.49

$

In Stock, only 4 left!

0

64

Briggs & Stratton 230543

Adapter
(Superseded to 691920)

$11.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 93105

Screw-Sem
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

65A

Briggs & Stratton 94018

Screw
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

65B

Briggs & Stratton 93067

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 394558

Housing-Starter Clutch
(Superseded to 399671)

$34.99

$

In Stock, Qty 12

0

67

Briggs & Stratton 394897

Ball-Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$3.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 222010

Valve

$7.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 396568

Valve Needle

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$20.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 394698

Kit-Carburetor

$32.99

$

In Stock, Qty 5

0

123

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

125

Briggs & Stratton 490499

Carburetor Assembly
(Superseded to 491031)

$315.99

$

Usually ships in 2-12 days

0

126

Briggs & Stratton 490473

Body-Carburetor

$109.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 221997

Plug

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$4.99

$

In Stock, only 1 left!

0

128

Briggs & Stratton 211960

Venturi-Carburetor

$6.49

$

In Stock, only 1 left!

0

130

Briggs & Stratton 222858

Valve-Throttle
(Superseded to 222433)

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 490017

Shaft and Lever-Throttle
(Superseded to 491006)

$21.99

$

In Stock, only 2 left!

0

132

Briggs & Stratton 211712

Stop-Thottle

$8.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 299707

Float-Carburetor

$13.99

$

In Stock, Qty 8

0

134

Briggs & Stratton 394681

Valve-Fuel Inlet

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$7.99

$

In Stock, Qty 16

0

136

Briggs & Stratton 221995

Bowl-Float

$8.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 270511

Gasket-Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$3.49

$

In Stock, Qty 8

0

138

Briggs & Stratton 222014

Washer-Bowl
(Superseded to 690618)

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$4.99

$

In Stock, Qty 11

0

141

Briggs & Stratton 390684

Shaft and Lever

$16.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 299740

Nozzle-Carburator

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$15.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 231323

Screw

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$24.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 393815

Line-Vacuum
(Superseded to 791880)

$11.99

$

In Stock, only 1 left!

0

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 4 left!

0

199

Briggs & Stratton 390303

Outlet-Fuel Tank
(Superseded to 492649)

$28.99

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 261610

Link-Choke

$10.99

$

In Stock, only 2 left!

0

240

Briggs & Stratton 298090

Filter
(Superseded to 298090S)

$

$

Not available

300

Briggs & Stratton 392101

Muffler-Exhaust
(Superseded to 498984S)

$84.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

474

Briggs & Stratton 393474

Alternator
(Superseded to 592831)

$101.99

$

In Stock, only 1 left!

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

608

Briggs & Stratton 390391

Rewind Starter
(Superseded to 693900)

$131.99

$

In Stock, only 1 left!

0

618

Briggs & Stratton 261116

Spring Choke

$7.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 270382

Washer
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

662

Briggs & Stratton 222311

Bracket-Carburetor
(Superseded to 224440)

$4.49

$

In Stock, only 1 left!

0

663

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

676

Briggs & Stratton 396903

Deflector-Exhaust

$14.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

726

Briggs & Stratton 392134

Gear-Ring (Includes Mounting Parts)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 223597

Guard-Ring Gear
(Superseded to 690490)

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 93712

Screw
(Superseded to 690364)

Note: Used in mounting Guard-Ring Gear Part No. 223597.

$3.99

$

In Stock, only 2 left!

0

Briggs & Stratton 93713

Lockwasher
(Superseded to 691075)

Note: Used in mounting Guard-Ring Gear Part No. 223597.

$3.49

$

Usually ships in 2-12 days

0

800

Briggs & Stratton 222095

Retainer

$4.49

$

Usually ships in 2-12 days

0

877

Briggs & Stratton 393456

Wire/Connector-Alternator

$20.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 270917

Gasket Exhaust
(Superseded to 692236)

$5.49

$

In Stock, Qty 20+

0

949

Briggs & Stratton 397530

Guard-Debris

$88.99

$

In Stock, only 1 left!

0

954

Briggs & Stratton 223379

Bracket-Guard
(Superseded to 692825)

$14.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 398970

Seal-Throttle
(Superseded to 692279)

$3.99

$

In Stock, only 1 left!

0
