301123BVE (84875) - Snapper 30" Rear-Engine Riding Mower, 11hp Electrical System (11 & 11.5HP Briggs Recoil Start) Parts Diagram

30" Rear-Engine Riding Mower, 11hp

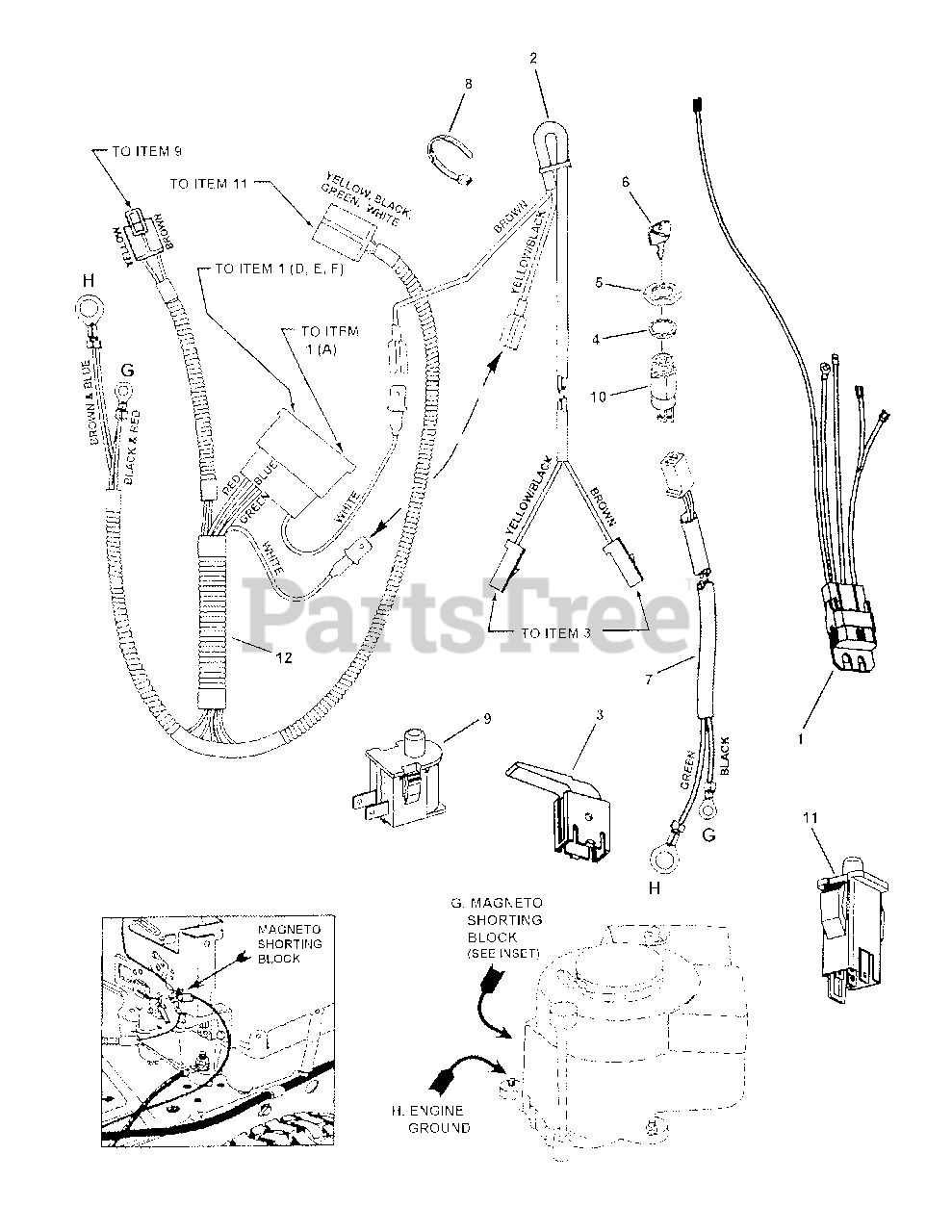

Electrical System (11 & 11.5HP Briggs Recoil Start) Parts Diagram

  • Title

1

Snapper 7028606

INTERLOCK MODULE, Briggs
(Superseded to 7028606YP)

Note: Ref: 7063064 (KIT, Briggs RER Module)

$51.99

$

In Stock, only 2 left!

0

2

Snapper 7028386

HARNESS, (Deck Interlock Wiring)
(Superseded to 7028386YP)

$15.99

$

In Stock, only 2 left!

0

3

Snapper 7018524

SWITCH, Deck Interlock (NO)
(Superseded to 7018524YP)

$20.99

$

In Stock, only 2 left!

0

4

Snapper 7090880

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

$4.49

$

In Stock, Qty 8

0

5

Snapper 7015438

NUT, 5/8-32 Hex
(Superseded to 7015438YP)

$

$

Not available

6

Snapper 1737836

KEYS, Blister Pk (KIDS+MWRS DON'T MIX) English/Spanish (set of two, one coated)
(Superseded to 1737836YP)

Note: (or 7011138)

$22.99

$

In Stock, only 4 left!

0

7

Snapper 7073714

HARNESS, Ground (Recoil Start)
(Superseded to 7073714YP)

$18.99

$

Usually ships in 2-12 days

0

8

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7023354

SWITCH, Seat (NC)
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

10

Snapper 7017817

SWITCH, Ignition (2-pole) (Recoil Start)
(Superseded to 7017817YP)

$33.99

$

In Stock, only 2 left!

0

11

Snapper 7022886

SWITCH, Operator Presence Control (OPC) Traction (NC/NO)
(Superseded to 7022886YP)

$15.99

$

In Stock, Qty 20+

0

12

Snapper 7028607

HARNESS, Operator Presence Control (OPC) Wire
(Superseded to 7028607YP)

$54.99

$

In Stock, only 1 left!

0
