30115 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 000000001 - 000999999) (1990) FRAME ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

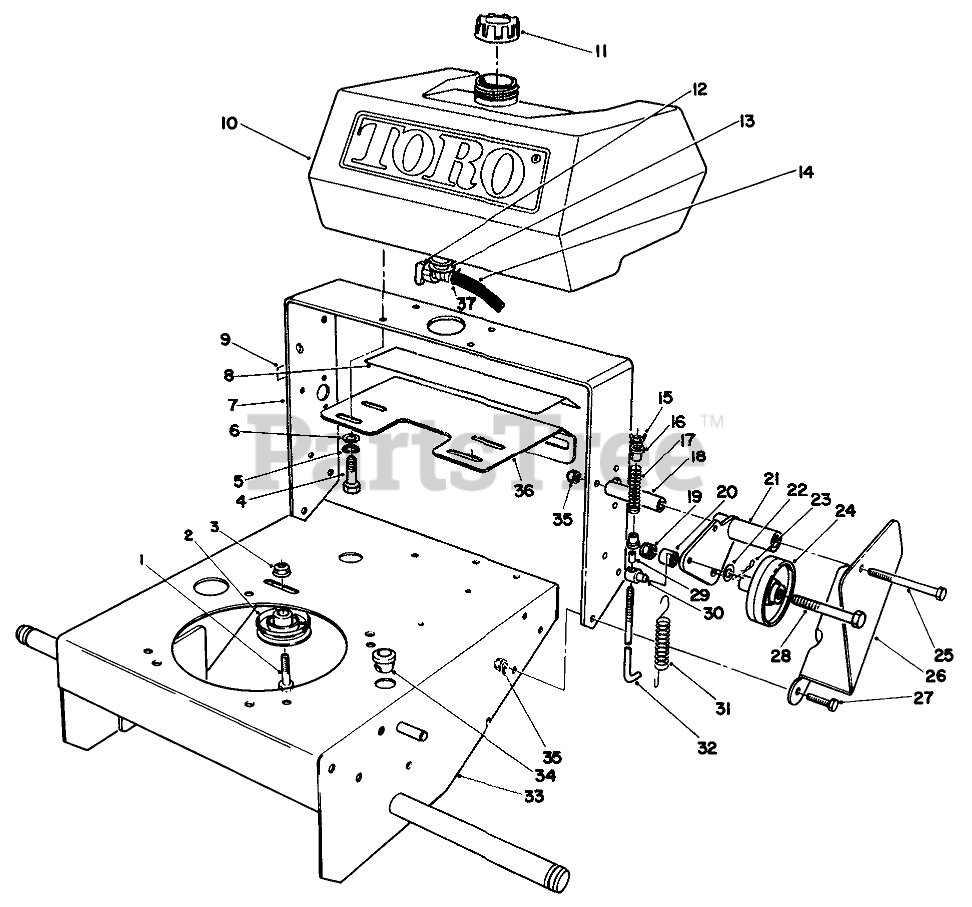

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 51-4810

PULLEY-IDLER

$41.99

$

In Stock, only 1 left!

0

3

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

4

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 74-0360

Frame Rear
(Superseded to 74-0360-01)

$

$

Not available

8

Toro 74-0710

DECAL - GROUND SPEED

$

$

Not available

9

Toro 74-0490

DECAL-FUEL SHUT OFF

$7.99

$

Usually ships in 3-6 days

0

10

Toro 72-4550

Tank-Fuel
(Superseded to 82-8440)

$451.99

$

Usually ships in 3-6 days

0

11

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 20+

0

12

Toro 74-0510

VALVE-FUEL

$31.99

$

In Stock, only 1 left!

0

13

Toro 237-7

O-RING

$8.99

$

Usually ships in 3-6 days

0

14

Toro 47-2982

HOSE-FUEL
(Superseded to 110-4894)

$8.49

$

In Stock, only 1 left!

0

15

Toro 32103-23

NUT-WING, LOCK

$

$

Not available

16

Toro 65-5080

BUSHING-FLANGE

$11.99

$

Usually ships in 3-6 days

0

17

Toro 72-9820

SPRING - COMPRESSION

$

$

Not available

18

Toro 74-0040

SPACER-PIVOT, IDLER

$6.49

$

Usually ships in 3-6 days

0

19

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 51-4490

WHEEL IDLER SPACER

$

$

Not available

21

Toro 74-0660

LH IDLER BRACKET WA R

$

$

Not available

Toro 74-0650

RH IDLER BRACKET WA R

$

$

Not available

22

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

23

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

24

Toro 51-4480

IdlerWheel
(Superseded to 99-5879)

$59.99

$

In Stock, only 1 left!

0

25

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

26

Toro 67-6380

Bracket-LH
(Superseded to 67-6380-01)

$108.99

$

Usually ships in 3-6 days

0

Toro 67-6370

Bracket-RH
(Superseded to 67-6370-01)

$108.99

$

Usually ships in 3-6 days

0

27

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Toro 325-12

SCREW-HH

$6.49

$

In Stock, Qty 7

0

29

Toro 52-2890

BUSHING-NYLON

$2.99

$

Usually ships in 3-6 days

0

30

Toro 68-9690

FITTING-ROD

$54.99

$

Usually ships in 3-6 days

0

31

Toro 72-2680

EXTENSION SPRING

$

$

Not available

32

Toro 72-2380

BRAKE ROD

$

$

Not available

33

Toro 74-0280

FRAME

$1127.99

$

Usually ships in 3-6 days

0

34

Toro 237-124

GROMMET

$2.99

$

In Stock, only 3 left!

0

35

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

36

Toro 66-7400

Plate
(Superseded to 66-7400-01)

$

$

Not available

37

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0
