30115 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

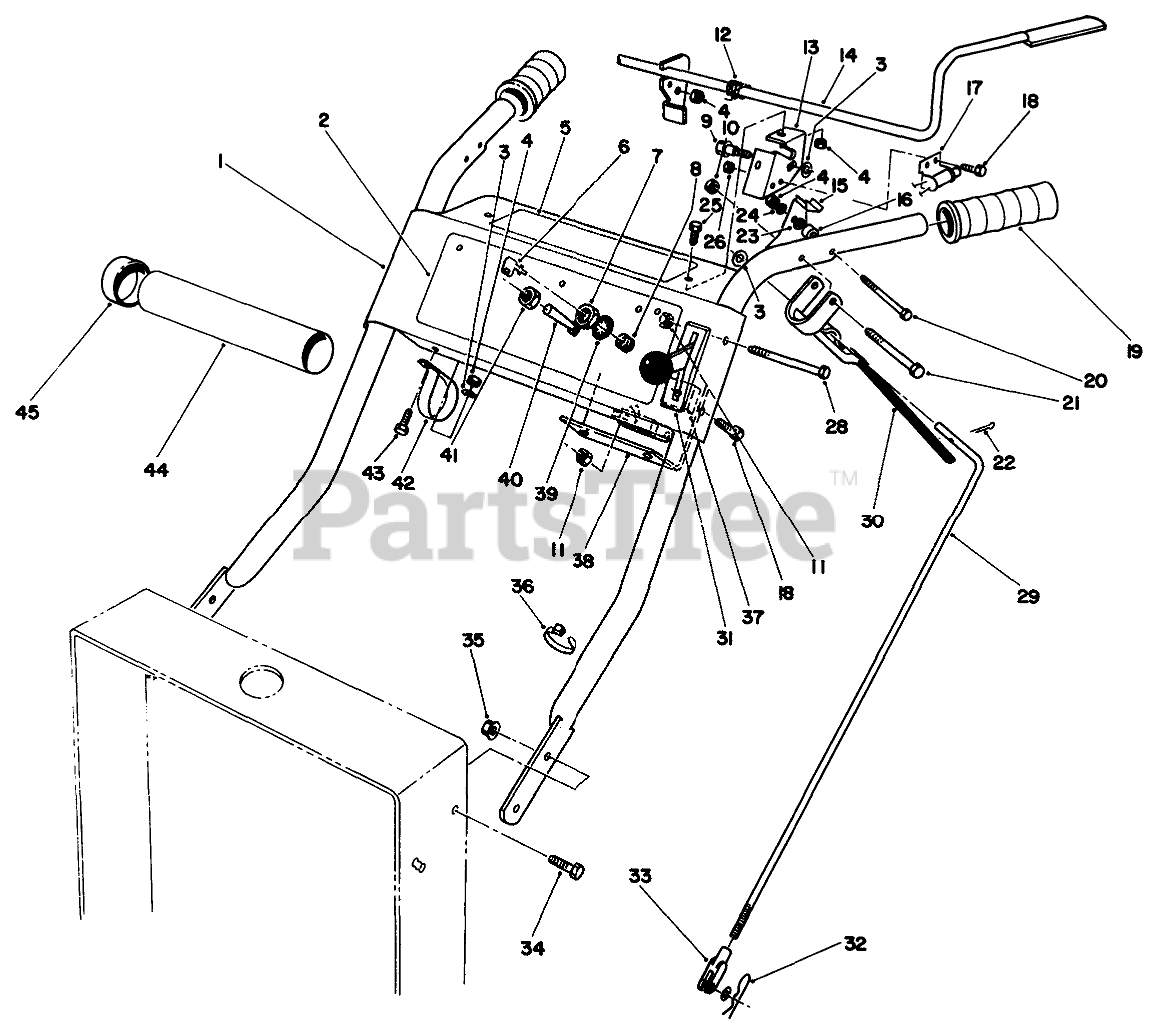

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 72-2210

HANDLE WA R

$757.99

$

Usually ships in 3-6 days

0

2

Toro 72-2470

DECAL- CONTROL PANEL

$

$

Not available

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 72-2490

DECAL - INSTRUCTION

$

$

Not available

6

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 18

0

8

Toro 29-5560

Switch (Incl. Ref. #7 & 39)

$17.99

$

In Stock, only 2 left!

0

9

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, Qty 18

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 72-2440

TORSION SPRING

$

$

Not available

13

Toro 72-2340

INTERLOCK MTG BRKT B

$

$

Not available

14

Toro 72-2370

INTERLOCK BAIL WA B

$

$

Not available

15

Toro 72-2460

LH NEUTRAL BRACKET

$

$

Not available

Toro 72-2450

RH NEUTRAL BRACKET

$

$

Not available

16

Toro 72-2430

Spacer-Latch
(Superseded to 74-0920)

$

$

Not available

17

Toro 28-4450

DECK INTERLOCK SWITCH

$

$

Not available

18

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

19

Toro 235-28

HANDLE GRIP

$

$

Not available

20

Toro 321-16

SCREW-HH
(Superseded to 120-2011)

$6.49

$

Usually ships in 3-6 days

0

21

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

22

Toro 3272-4

PIN-COTTER

$0.99

$

In Stock, Qty 6

0

23

Toro 3290-388

WASHER

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3290-436

WASHER-BELLEVILLE

$3.99

$

In Stock, only 1 left!

0

25

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

26

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 10

0

28

Toro 32105-14

SCREW-SHH

$2.99

$

Usually ships in 3-6 days

0

29

Toro 72-2350

CONTROL ROD

$

$

Not available

30

Toro 72-2300

LIFT BAIL WA

$74.99

$

Usually ships in 3-6 days

0

31

Toro 51-4820

THROTTLE-CONTROL

$

$

Not available

32

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

33

Toro 282-27

CLEVIS-ADJ

$31.99

$

Usually ships in 3-6 days

0

34

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 17

0

35

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

36

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

37

Toro 37-7600

RECTIFIER-BRIDGE

$25.99

$

In Stock, only 2 left!

0

38

Toro 72-2330

SWITCH COVER R

$

$

Not available

39

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 13

0

40

Toro 37-2610

Switch-Clutch (Incl. Ref. #41)
(Superseded to 92-6328)

$

$

Not available

41

Toro 218-500

NUT
(Superseded to 3218-19)

$0.99

$

Usually ships in 3-6 days

0

42

Toro 2412-102

CLAMP-R

$8.99

$

Usually ships in 3-6 days

0

43

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Toro 65-5870

TUBE

$

$

Not available

45

Toro 65-5890

CAP-END

$

$

Not available
