30116 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 006000001 - 006999999) (1986) Drive Spindle No. 54-7780, 54-7781 Model 30136, 30152 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

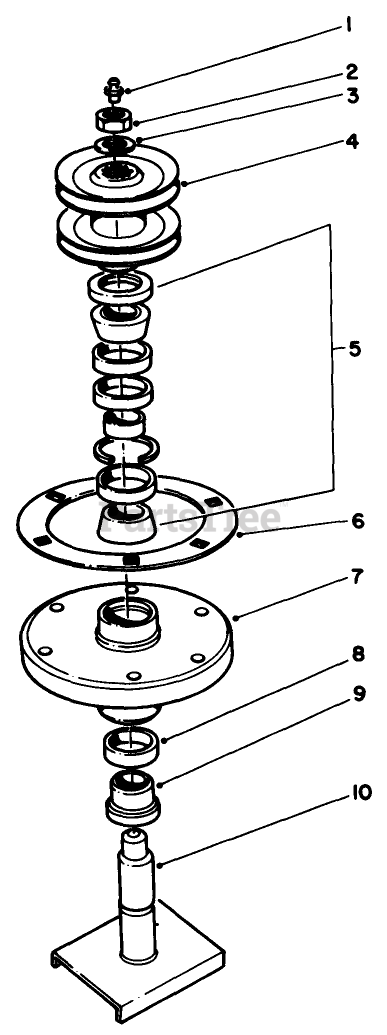

Drive Spindle No. 54-7780, 54-7781 Model 30136, 30152 Parts Diagram

  • Title

1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 4 left!

0

2

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

3

Toro 7-4150

WASHER

$1.49

$

In Stock, only 2 left!

0

4

Toro 54-2980

DISCONTINUED

$

$

Not available

5

Toro 46-8530

BEARING ASM

$107.99

$

In Stock, only 2 left!

0

6

Toro 27-7680

See Supercession: 27-7680-03
(Superseded to 27-7680-03)

$91.99

$

Usually ships in 3-6 days

0

7

Toro 27-0880

See Supercession: 61-4160
(Superseded to 61-4160)

$149.99

$

In Stock, only 2 left!

0

8

Toro 253-139

SEAL-OIL

$14.99

$

In Stock, only 3 left!

0

9

Toro 27-0950

SPACER

$34.99

$

In Stock, only 2 left!

0

10

Toro 51-3550

DISCONTINUED

$

$

Not available

Toro 51-3551

See Supercession: 105-1686
(Superseded to 105-1686)

Note: Not Illustrated.

$230.99

$

In Stock, only 2 left!

0
