30116 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 008000001 - 008999999) (1988) Briggs Stratton Engine Model No. 402707-0158-01 (continued) Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

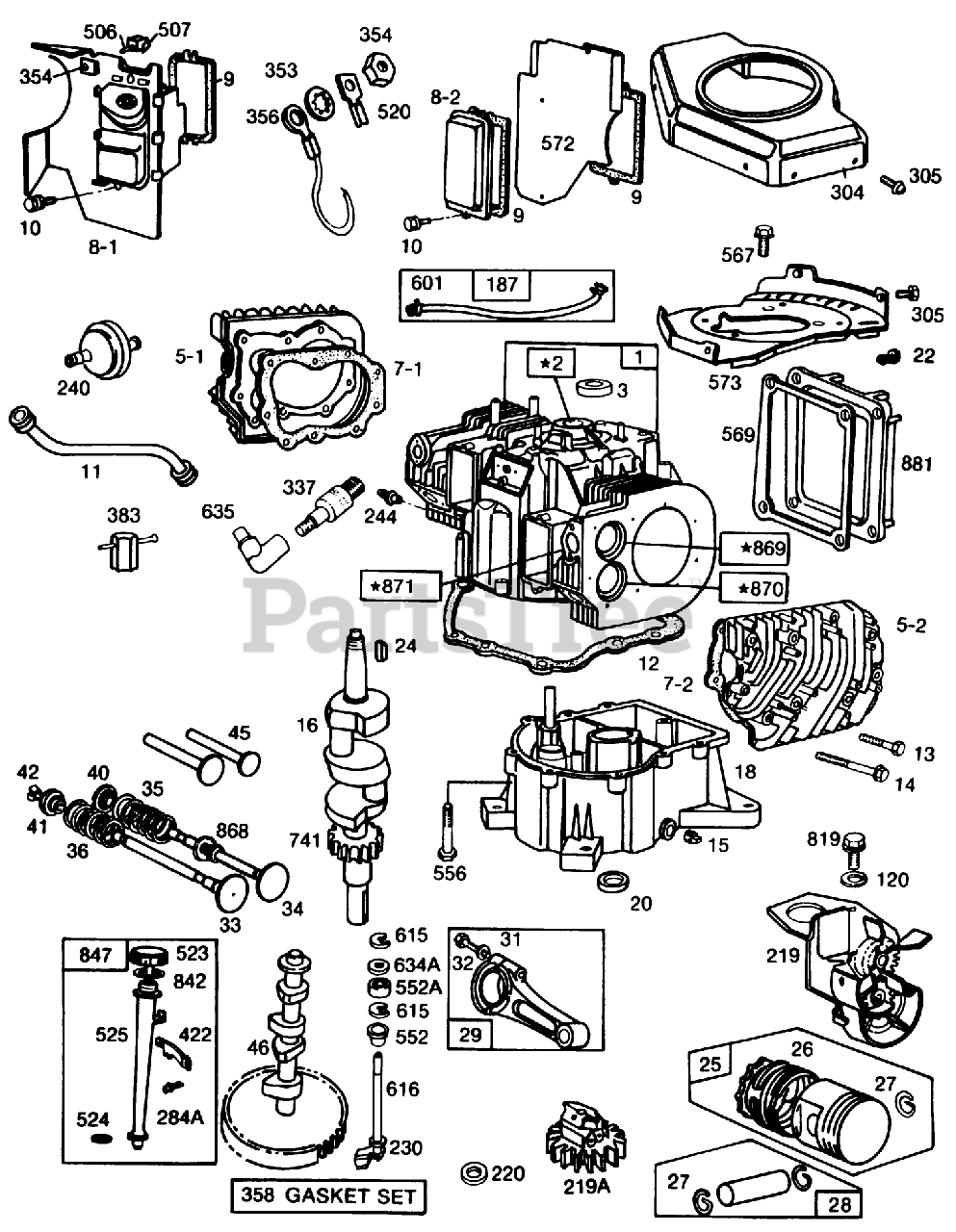

Briggs Stratton Engine Model No. 402707-0158-01 (continued) Parts Diagram

  • Title

1

Toro 394941

Cylinder Assembly

$

$

Currently unavailable

2

Toro 261623

Bearing

$

$

Currently unavailable

3

Toro 391086

Seal-Oil

$

$

Currently unavailable

5-1

Toro 212461

Head-Cylinder #1

$

$

Currently unavailable

5-2

Toro 212462

Head-Cylinder #2

$

$

Currently unavailable

7-1

Toro 271867

Gasket-Cylinder Head #1

$

$

Currently unavailable

7-2

Toro 271868

Gasket-Cylinder Head #2

$

$

Currently unavailable

8-1

Toro 393370

Breather Assembly #1

$

$

Currently unavailable

8-2

Toro 222892

Cover-Breather Cylinder #2

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

11

Toro 280225

Tube-Breather

$

$

Currently unavailable

12

Toro 271142

Gasket-Crankcase Cover-1/64" thick

$

$

Currently unavailable

12

Toro 271188

Gasket-Crankcase Cover-.005" thick

$

$

Currently unavailable

12

Toro 271189

Gasket-Crankcase Cover-.009" thick

$

$

Currently unavailable

13

Toro 93111

Screw-Cylinder Hd.

$

$

Currently unavailable

14

Toro 93113

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 91084

Plug-Pipe

$

$

Currently unavailable

16

Toro 393382

Crankshaft

$

$

Currently unavailable

18

Toro 393552

Base Assembly-Crankcase

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

$

$

Currently unavailable

22

Toro 93882

Screw-Crankcase Cover Mtg.

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 394955

Piston Assembly-Std.

$

$

Currently unavailable

25

Toro 394956

Piston Assembly-.010" O.S.

$

$

Currently unavailable

25

Toro 394957

Piston Assembly-.020" O.S.

$

$

Currently unavailable

25

Toro 394958

Piston Assembly-.030" O.S.

$

$

Currently unavailable

26

Toro 394959

Ring Set-Piston-Std

$

$

Currently unavailable

26

Toro 394960

Ring Set-Piston-.010" O.S.

$

$

Currently unavailable

26

Toro 394961

Ring Set-Piston-.020" O.S.

$

$

Currently unavailable

26

Toro 394962

Ring Set-Piston-.030" O.S.

$

$

Currently unavailable

27

Toro 260924

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 299691

Pin-Piston (Std.)

$

$

Currently unavailable

28

Toro 391286

Pin-Piston (.005" OS.)

$

$

Currently unavailable

29

Toro 393270

Rod Assembly-Connecting Note: For Connecting Rod with .020" undersize Crankpin Bore-Order No.393714.

$

$

Currently unavailable

31

Toro 220863

Washer

$

$

Currently unavailable

32

Toro 92909

Screw-Conn. Rod

$

$

Currently unavailable

33

Toro 390420

Valve-Exhaust

$

$

Currently unavailable

34

Toro 261528

Valve-Intake Uses: Seal Assembly and Retainer (Ref. No.868)

$

$

Currently unavailable

35

Toro 65906

Spring-Valve

$

$

Currently unavailable

36

Toro 26828

Spring-Valve

$

$

Currently unavailable

40

Toro 221596

Retainer-Valve

$

$

Currently unavailable

41

Toro 292260

Retainer-Valve

$

$

Currently unavailable

42

Toro 93630

Retainer-Rotocoil

$

$

Currently unavailable

45

Toro 261368

Tappet-Valve

$

$

Currently unavailable

46

Toro 212337

Gear-Cam (Used with Electronic Ignition)

$

$

Currently unavailable

120

Toro 92290

Washer-Lock

$

$

Currently unavailable

187

Toro 299146

Line-Fuel (28" long) (Cut to Suit)

$

$

Currently unavailable

219

Toro 393415

Oil Slinger Assembly

$

$

Currently unavailable

219A

Toro 394348

Gear-Governor

$

$

Currently unavailable

220

Toro 222773

Washer-Thrust

$

$

Currently unavailable

230

Toro 220863

Washer

$

$

Currently unavailable

240

Toro 394358

Filter-Fuel

$

$

Currently unavailable

244

Toro 230318

Connector-Fuel

$

$

Currently unavailable

284A

Toro 93469

Screw

$

$

Currently unavailable

304

Toro 393287

Housing-Blower

$

$

Currently unavailable

305

Toro 93158

Screw

$

$

Currently unavailable

337

Toro 394539

Plug-Spark (Resistor)

$

$

Currently unavailable

353

Toro 92791

Washer-Lock

$

$

Currently unavailable

354

Toro 90576

Nut

$

$

Currently unavailable

356

Toro 298693

Wire-Ground

$

$

Currently unavailable

358

Toro 394501

Gasket Set

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

422

Toro 222875

Clamp-Oil Filter

$

$

Currently unavailable

506

Toro 231174

Terminal

$

$

Currently unavailable

507

Toro 280180

Grommet-Insulator

$

$

Currently unavailable

520

Toro 93722

Terminal

$

$

Currently unavailable

523

Toro 394020

Cap and Dipstick-Oil Filler

$

$

Currently unavailable

524

Toro 271157

Seal-FillerTube

$

$

Currently unavailable

525

Toro 280224

Tube-Oil Filler

$

$

Currently unavailable

552

Toro 261559

Lower Bushing-Governor

$

$

Currently unavailable

552A

Toro 261560

Upper Bushing-Governor

$

$

Currently unavailable

556

Toro 93585

Screw-Sem

$

$

Currently unavailable

567

Toro 93777

Screw

$

$

Currently unavailable

569

Toro 270981

Gasket-Crankcase

$

$

Currently unavailable

572

Toro 222912

Baffle-Air(Cyl. #2)

$

$

Currently unavailable

573

Toro 392934

Back Plate Assembly

$

$

Currently unavailable

601

Toro 93053

Clamp-Hose

$

$

Currently unavailable

615

Toro 93851

Retainer-E-Ring

$

$

Currently unavailable

616

Toro 394349

Crank-Governor

$

$

Currently unavailable

634A

Toro 271316

Foam Seal-Governor Shaft

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

741

Toro 231445

Gear-Timing

$

$

Not available

819

Toro 93686

Screw-Hex Head

$

$

Currently unavailable

842

Toro 271170

Seal-Oil FillerCap

$

$

Currently unavailable

847

Toro 394394

Dipstick Tube Assembly

$

$

Currently unavailable

868

Toro 393606

Seal Assembly Retainer

$

$

Currently unavailable

869

Toro 261463

Seat-Intake Valve

$

$

Currently unavailable

870

Toro 210940

Seat-Exhaust Valve

$

$

Currently unavailable

871

Toro 231218

Guide-Valve
(Superseded to 702263)

$

$

Not available

881

Toro 222860

Cover Plate-Crankcase

$

$
