30116 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 009000001 - 009999999) (1989) BRIGGS & STRATTON ENGINE MODEL NO. 402707-0158-01 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

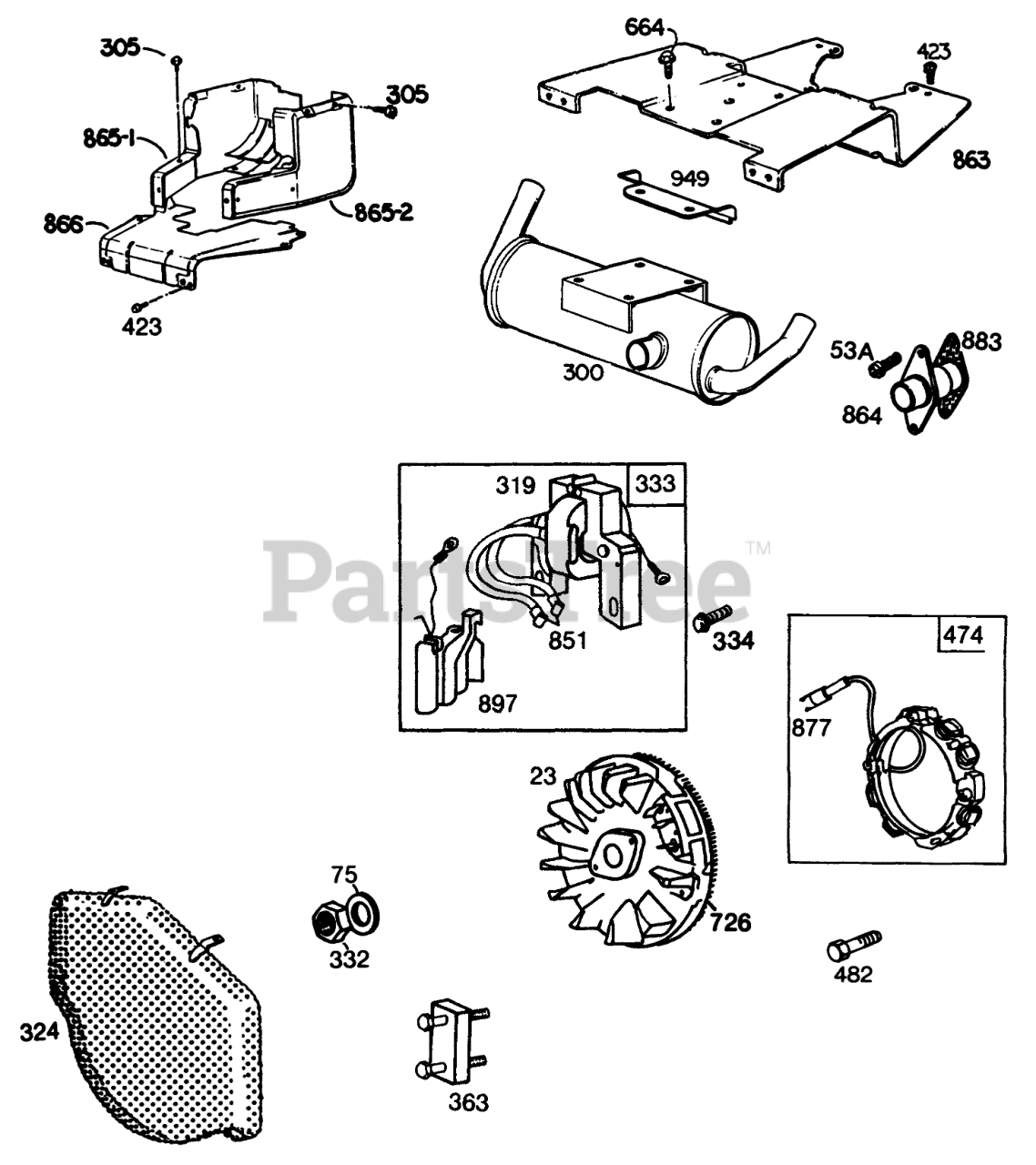

BRIGGS & STRATTON ENGINE MODEL NO. 402707-0158-01 Parts Diagram

  • Title

23

Briggs & Stratton 392956

Flywheel and Ring Gear Assembly-Magneto

$219.99

$

Usually ships in 2-12 days

0

53A

Briggs & Stratton 93415

Screw
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

75

Briggs & Stratton 222511

Washer-Spring
(Superseded to 691056)

$9.49

$

In Stock, only 1 left!

0

300

Briggs & Stratton 490973

Muffler-Exhaust
(Superseded to 491319S)

$152.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

319

Briggs & Stratton 394988

Armature Assembly
(Superseded to 590781)

$75.99

$

In Stock, Qty 15

0

324

Briggs & Stratton 393330

Screen-Stationary

$142.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 230674

Nut-Hex
(Superseded to 691059)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 394891

Armature Group (MAGNETRON Ignition)
(Superseded to 590781)

$75.99

$

In Stock, Qty 15

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

423

Briggs & Stratton 93876

Screw
(Superseded to 690312)

$3.99

$

In Stock, only 2 left!

0

474

Briggs & Stratton 392595

Alternator
(Superseded to 592829)

$102.99

$

In Stock, only 4 left!

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

664

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, Qty 5

0

726

Briggs & Stratton 391362

Gear-Flywheel Ring (Includes Mounting Parts)

$

$

Not available

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

863

Briggs & Stratton 222865

Bracket-Muffler
(Superseded to 690444)

$54.99

$

In Stock, only 1 left!

0

864

Briggs & Stratton 393483

Liner Assy.-Exhaust Port
(Superseded to 691970)

$28.99

$

Usually ships in 2-12 days

0

865-1

Briggs & Stratton 393288

Cover Assembly-Air Guide (Cylinder #1)
(Superseded to 690831)

$67.99

$

Usually ships in 2-12 days

0

865-2

Briggs & Stratton 393289

Cover Assembly-Air Guide (Cylinder #2)
(Superseded to 690829)

$66.99

$

Usually ships in 2-12 days

0

866

Briggs & Stratton 393285

Top Plate Assembly
(Superseded to 690830)

$38.99

$

In Stock, only 1 left!

0

877

Briggs & Stratton 393537

Connector-Wire, Tri Circuit

$

$

Not available

883

Briggs & Stratton 271174

Gasket-Exhaust
(Superseded to 692282)

$6.99

$

In Stock, only 2 left!

0

897

Briggs & Stratton 394970

Trigger Coil

$

$

Not available

949

Briggs & Stratton 223935

Guard-Debris

$9.49

$

Usually ships in 2-12 days

0
