30116 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 009000001 - 009999999) (1989) FRAME ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

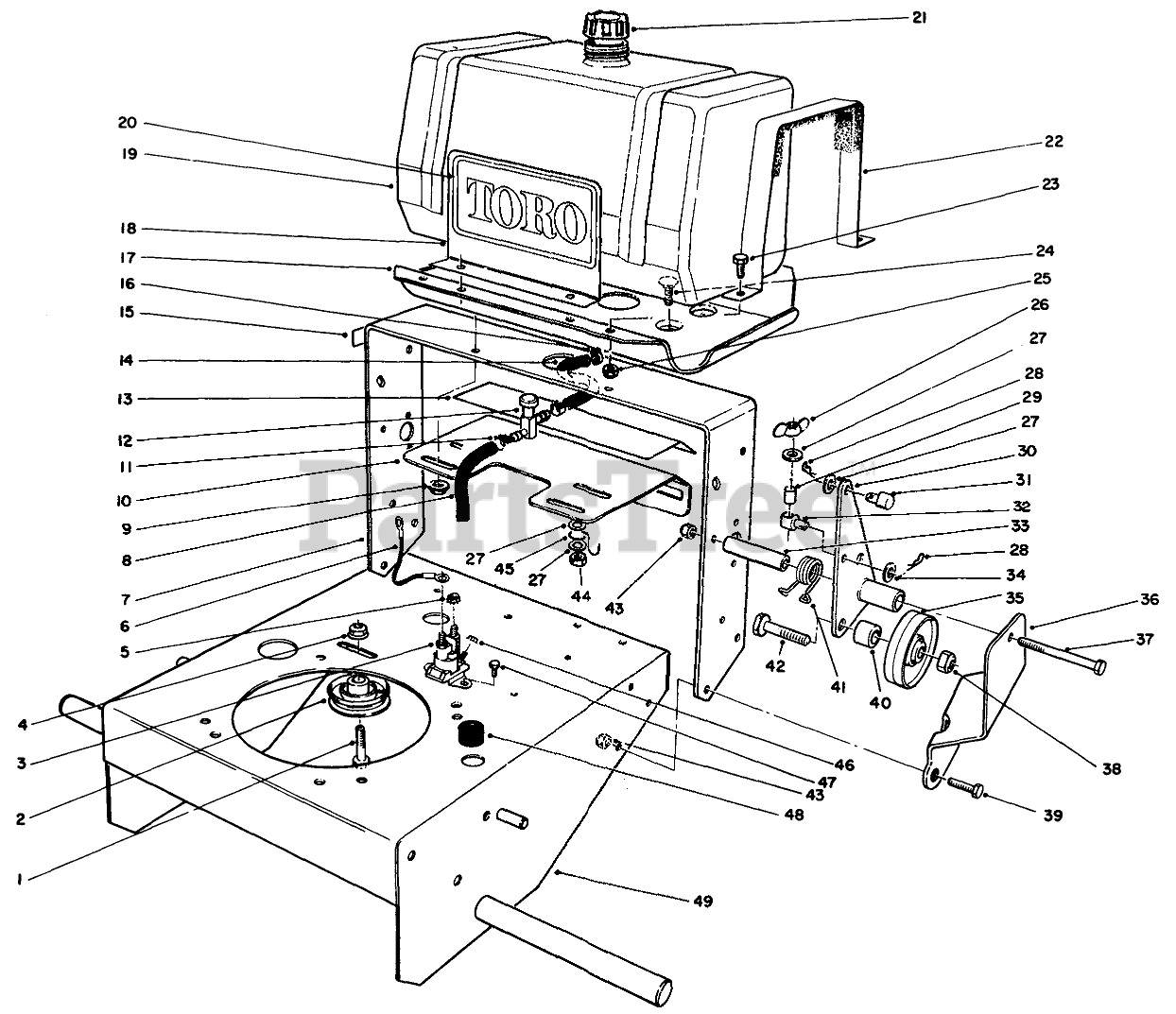

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 514810

Pulley Idler

$

$

Currently unavailable

3

Toro 44-9380

Solenoid
(Superseded to 99-5887)

$79.99

$

Usually ships in 3-6 days

0

4

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

5

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

6

Toro 28-3891

WIRE-SOLENOID/STARTER

$27.99

$

Usually ships in 3-6 days

0

7

Toro 54-3170

Frame-Rear
(Superseded to 74-0360-01)

$

$

Not available

8

Toro 47-2985

GAS HOSE
(Superseded to 109-0304)

$2.49

$

In Stock, Qty 16

0

9

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

10

Toro 66-7400

Plate
(Superseded to 66-7400-01)

$

$

Not available

11

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

12

Toro 54-3150

FUEL VALVE
(Superseded to 1-603770)

$7.99

$

In Stock, Qty 16

0

13

Toro 52-2140

Decal-Ground Speed
(Superseded to 82-7750)

$

$

Not available

14

Toro 47-2980

HOSE-FUEL
(Superseded to 107-0588)

$5.49

$

In Stock, only 2 left!

0

15

Toro 55-4230

Decal-Fuel Shut Off
(Superseded to 74-0490)

$7.99

$

Usually ships in 3-6 days

0

16

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

17

Toro 62-4030

PLATE-FUEL TANK

$

$

Not available

18

Toro 62-4120

DECAL-PLATE

$

$

Not available

19

Toro 62-4040

TANK-FUEL

$

$

Not available

20

Toro 62-5550

DECAL

$10.99

$

In Stock, only 2 left!

0

21

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 20+

0

22

Toro 62-5500

STRAP ASM

$

$

Not available

23

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

24

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Toro 32103-25

NUT-WING

$5.49

$

Usually ships in 3-6 days

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

29

Toro 52-2890

BUSHING-NYLON

$2.99

$

Usually ships in 3-6 days

0

30

Toro 67-6760

Bracket-Idler, LH

$

$

Not available

Toro 67-6750

Bracket-Idler, RH

$

$

Not available

31

Toro 543080

Fitting-Rod

$

$

Currently unavailable

32

Toro 68-9690

FITTING-ROD

$54.99

$

Usually ships in 3-6 days

0

33

Toro 51-4340

PIVOT-IDLER SPACER

$22.99

$

In Stock, only 1 left!

0

34

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

35

Toro 51-4480

IdlerWheel
(Superseded to 99-5879)

$59.99

$

In Stock, only 1 left!

0

36

Toro 67-6380

Bracket-LH
(Superseded to 67-6380-01)

$108.99

$

Usually ships in 3-6 days

0

Toro 67-6370

Bracket-RH
(Superseded to 67-6370-01)

$108.99

$

Usually ships in 3-6 days

0

37

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

38

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

39

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

40

Toro 51-4490

WHEEL IDLER SPACER

$

$

Not available

41

Toro 51-4380

SPRING-TORSION, LH

$17.99

$

In Stock, only 1 left!

0

Toro 51-4370

SPRING-TORSION, RH

$17.99

$

In Stock, only 1 left!

0

42

Toro 51-4450

SCREW-LEVELER

$13.99

$

Usually ships in 3-6 days

0

43

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

44

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

45

Toro 62-6610

Clip-Gas Line

$

$

Currently unavailable

46

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

47

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

48

Toro 237-124

GROMMET

$2.99

$

In Stock, only 3 left!

0

49

Toro 51-4100

Frame

$

$

Not available

Toro 71-3040

Replacement Kit
(Superseded to 99-5881)

$

$

Not available
