30117 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 010000001 - 019999999) (1991) Handle Assembly Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

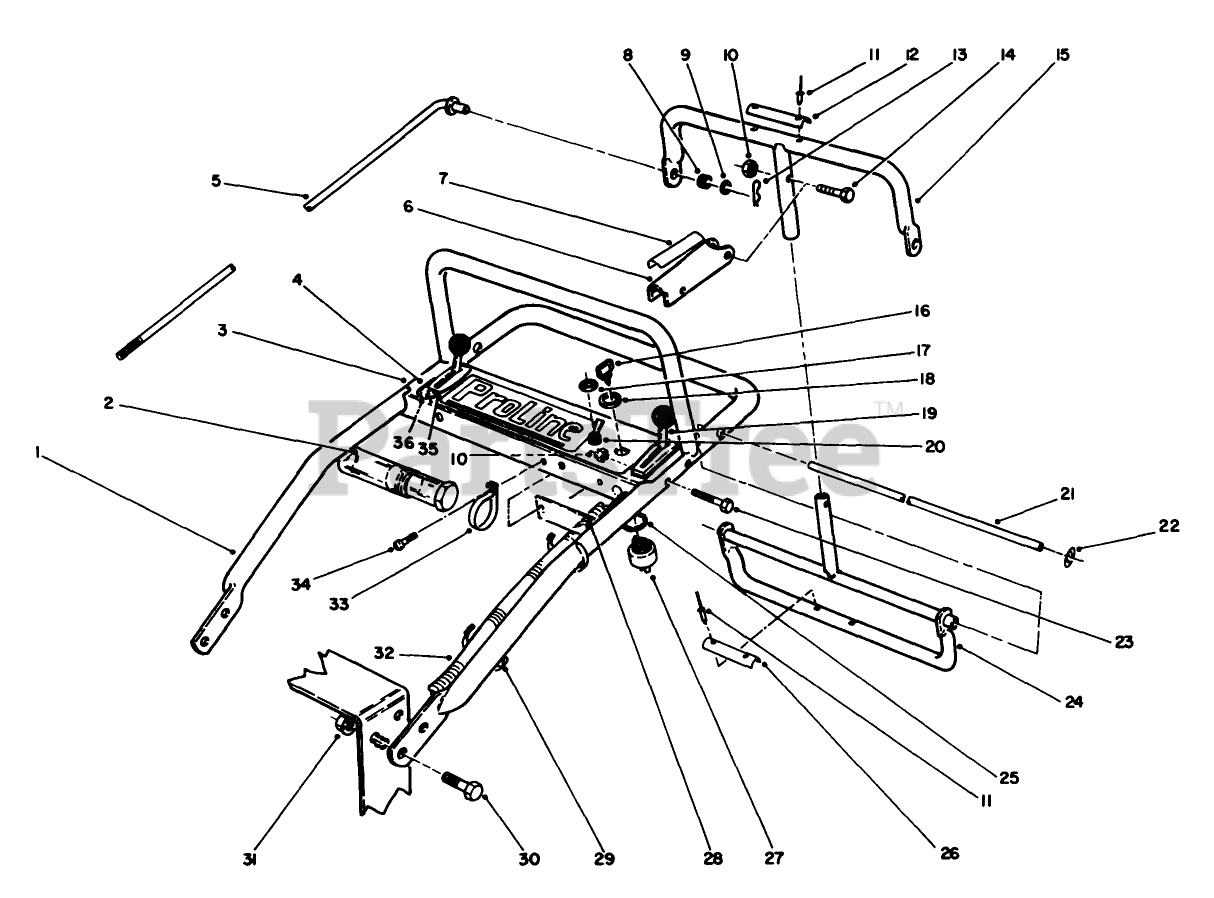

Handle Assembly Parts Diagram

  • Title

1

Toro 67-6440

DISCONTINUED
(Superseded to 67-6440-03)

$

$

Not available

2

Toro 74-0720

TUBE-MANUAL

$26.99

$

Usually ships in 3-6 days

0

3

Toro 74-0790

DISCONTINUED

$

$

Not available

4

Toro 74-0840

See Supercession: 74-0800
(Superseded to 74-0800)

$

$

Not available

5

Toro 54-3071

DISCONTINUED

$

$

Not available

6

Toro 51-4850

See Supercession: 51-4850-03
(Superseded to 51-4850-03)

$42.99

$

In Stock, only 1 left!

0

7

Toro 52-2010

DECAL-LEVER, PARKING

$6.49

$

In Stock, only 1 left!

0

8

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 7

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 13

0

11

Toro 3290-54

RIVET-BLIND

$0.99

$

In Stock, only 2 left!

0

12

Toro 54-2740

DISCONTINUED

$

$

Not available

13

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

14

Toro 32105-1

SCREW-SHH

$3.99

$

In Stock, Qty 6

0

15

Toro 51-4730

See Supercession: 51-4730-03
(Superseded to 51-4730-03)

$

$

Not available

16

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

17

Toro 218-500

See Supercession: 3218-19
(Superseded to 3218-19)

$0.99

$

Usually ships in 3-6 days

0

18

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

19

Toro 74-0640

DISCONTINUED

$

$

Not available

20

Toro 37-2610

DISCONTINUED
(Superseded to 92-6328)

$

$

Not available

21

Toro 74-0470

PIVOT ROD

$56.99

$

Usually ships in 3-6 days

0

22

Toro 32151-80

NUT-PUSH-ON, CIRCULAR

$1.99

$

In Stock, only 4 left!

0

23

Toro 32105-14

SCREW-SHH

$3.99

$

Usually ships in 3-6 days

0

24

Toro 74-0380

DISCONTINUED
(Superseded to 74-0380-03)

$

$

Not available

25

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

26

Toro 52-2120

DISCONTINUED

$

$

Not available

27

Toro 23-0660

SWITCH-STARTER

$25.99

$

In Stock, only 4 left!

0

28

Toro 57-5810

BOTTOM PANEL *B

$

$

Not available

29

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

30

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 14

0

31

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

32

Toro 74-0770

DISCONTINUED

$

$

Not available

33

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

34

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

35

Toro 74-0730

CHOKE CONTROL

$160.99

$

Usually ships in 3-6 days

0

36

Toro 54-2970

SPACER

$31.99

$

Usually ships in 3-6 days

0
