3012523BVE (7085623) - Snapper 30" Rear-Engine Riding Mower, 12.5hp Spindle Parts Diagram

30" Rear-Engine Riding Mower, 12.5hp

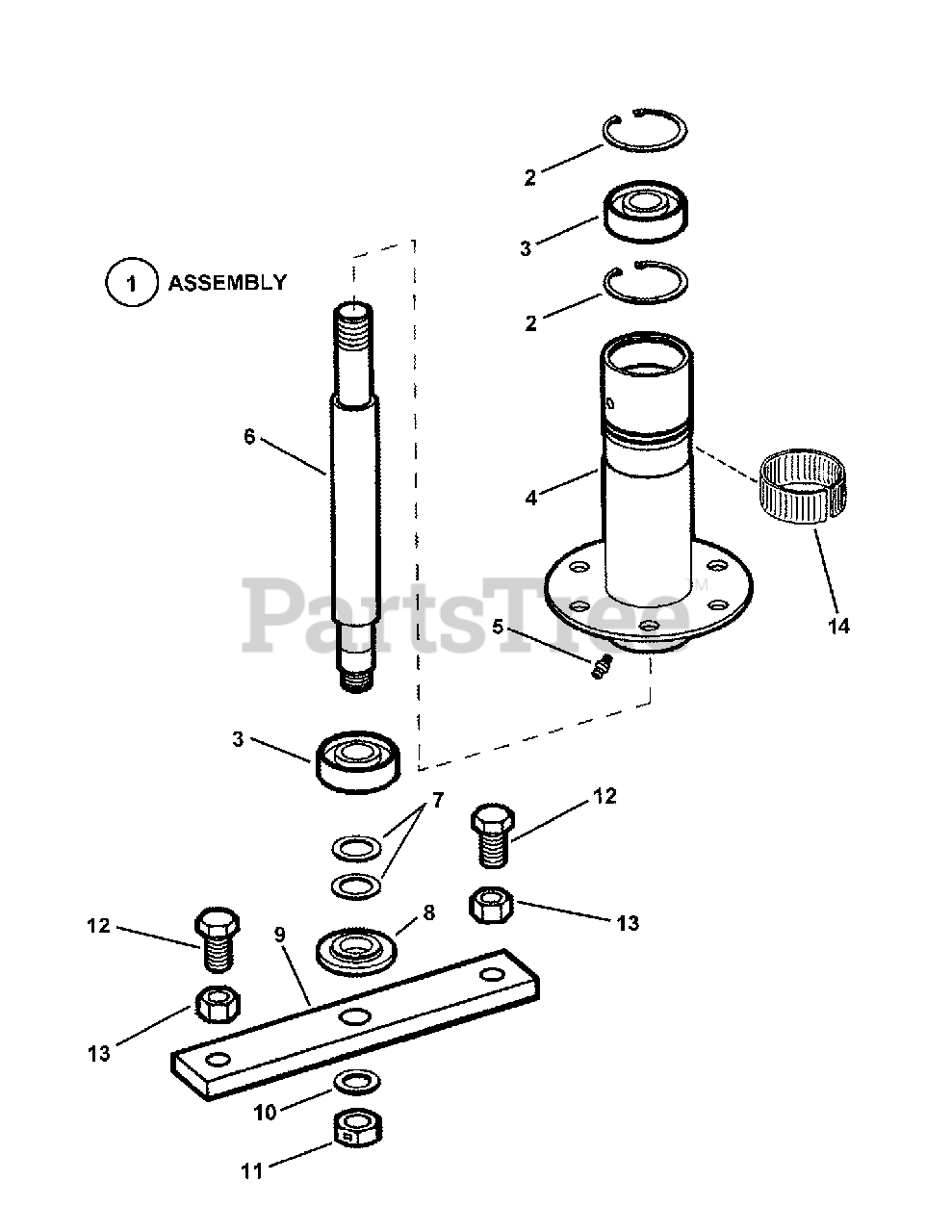

Spindle Parts Diagram

  • Title

1

Snapper 7058049

ASSEMBLY, Spindle
(Superseded to 7600138YP)

$148.99

$

Usually ships in 2-12 days

0

2

Snapper 7012491

RING, 1.85" Internal Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

4

Snapper 7050696

WELDMENT, Spindle Housing (includes item #5)
(Superseded to 7040460BMYP)

$63.99

$

In Stock, Qty 5

0

5

Snapper 7010817

LUBE FITTING, 3/16" Press-In
(Superseded to 7010817SM)

$4.49

$

In Stock, only 2 left!

0

6

Snapper 7044785

SPINDLE, Rider (10.327" overall length)
(Superseded to 7044785YP)

$40.99

$

In Stock, only 3 left!

0

7

Snapper 7010935

WASHER, .77 x 1.13 x .06 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 20+

0

9

Snapper 7031184

HOLDER, Blade (25" decks)
(Superseded to 7031184BMYP)

$70.99

$

In Stock, only 4 left!

0

10

Snapper 7044782

SPACER, Blade Centering
(Superseded to 7044782YP)

$4.99

$

In Stock, Qty 12

0

11

Snapper 7090356

NUT, 5/8-18 Hex Center Lock Jam
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 10

0

12

Snapper 7090491

SCREW, 1/2-20 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 7090491YP)

$4.99

$

In Stock, only 4 left!

0

13

Snapper 7091939

NUT, 1/2-20 Hex, GR 5
(Superseded to 7091939YP)

$3.49

$

In Stock, Qty 9

0

14

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 14

0
