3012523BVE (7800650) - Snapper 30" Rear-Engine Riding Mower, 12.5hp Yoke Lift Components Parts Diagram

30" Rear-Engine Riding Mower, 12.5hp

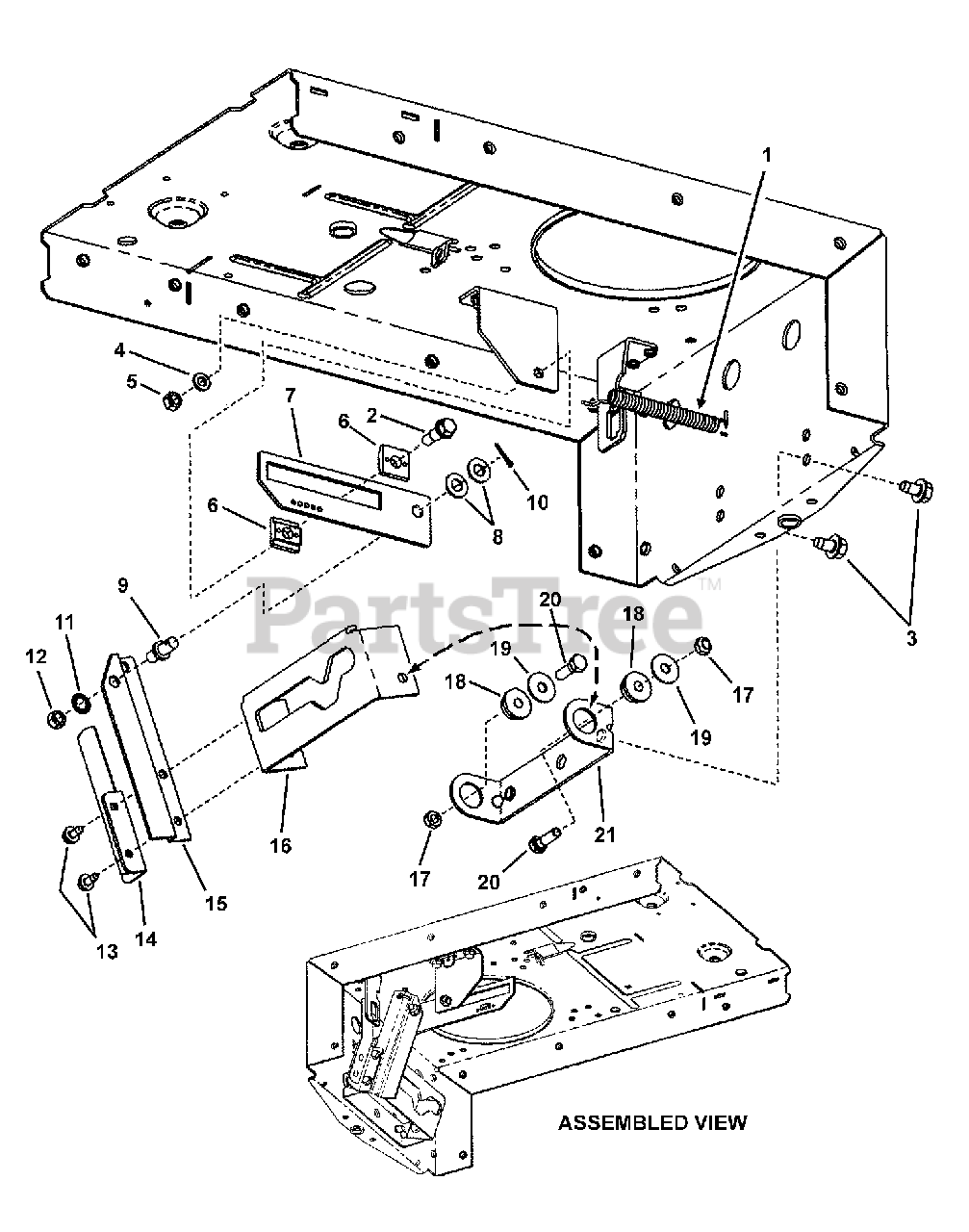

Yoke Lift Components Parts Diagram

  • Title

1

Snapper 7013885

SPRING, Clutch & Brake
(Superseded to 7013885YP)

$

$

Not available

2

Snapper 7014664

BOLT, 5/16-18 Shoulder
(Superseded to 7014664SM)

$

$

Not available

3

Snapper 7091198

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 7

0

5

Snapper 7090196

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

6

Snapper 7014663

SLIDE HALF
(Superseded to 7014663YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7047190

BRACKET, Slide
(Superseded to 7047190BMYP)

$13.99

$

Usually ships in 2-12 days

0

8

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7015464

STUD, Clutch Link (3/8-24 thread)
(Superseded to 7015464YP)

$7.99

$

In Stock, only 2 left!

0

10

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

$4.49

$

In Stock, Qty 11

0

11

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7090155

NUT, 3/8-24 Hex, GR 5 or B
(Superseded to 703895)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7090539

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7059068

ASSEMBLY, Leaf Spring
(Superseded to 7600141YP)

$63.99

$

Usually ships in 2-12 days

0

15

Snapper 7073733

ARM, Yoke
(Superseded to 7073733YP)

$9.49

$

Usually ships in 2-12 days

0

16

Snapper 7046162

LIFT, Yoke
(Superseded to 7046162BMYP)

$23.99

$

In Stock, only 4 left!

0

17

Snapper 7011201

NUT, Wheel Bolt 5/16-24 Hex Center Lock
(Superseded to 703459)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7011048

BEARING, Yoke
(Superseded to 7011048YP)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7011763

FENDER WASHER, 5/16"
(Superseded to 7011763SM)

$4.49

$

In Stock, Qty 9

0

20

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap, GR 5
(Superseded to 703301)

$4.49

$

In Stock, only 4 left!

0

21

Snapper 7033291

COLLAR, Yoke
(Superseded to 7033291YP)

$60.99

$

In Stock, only 2 left!

0
