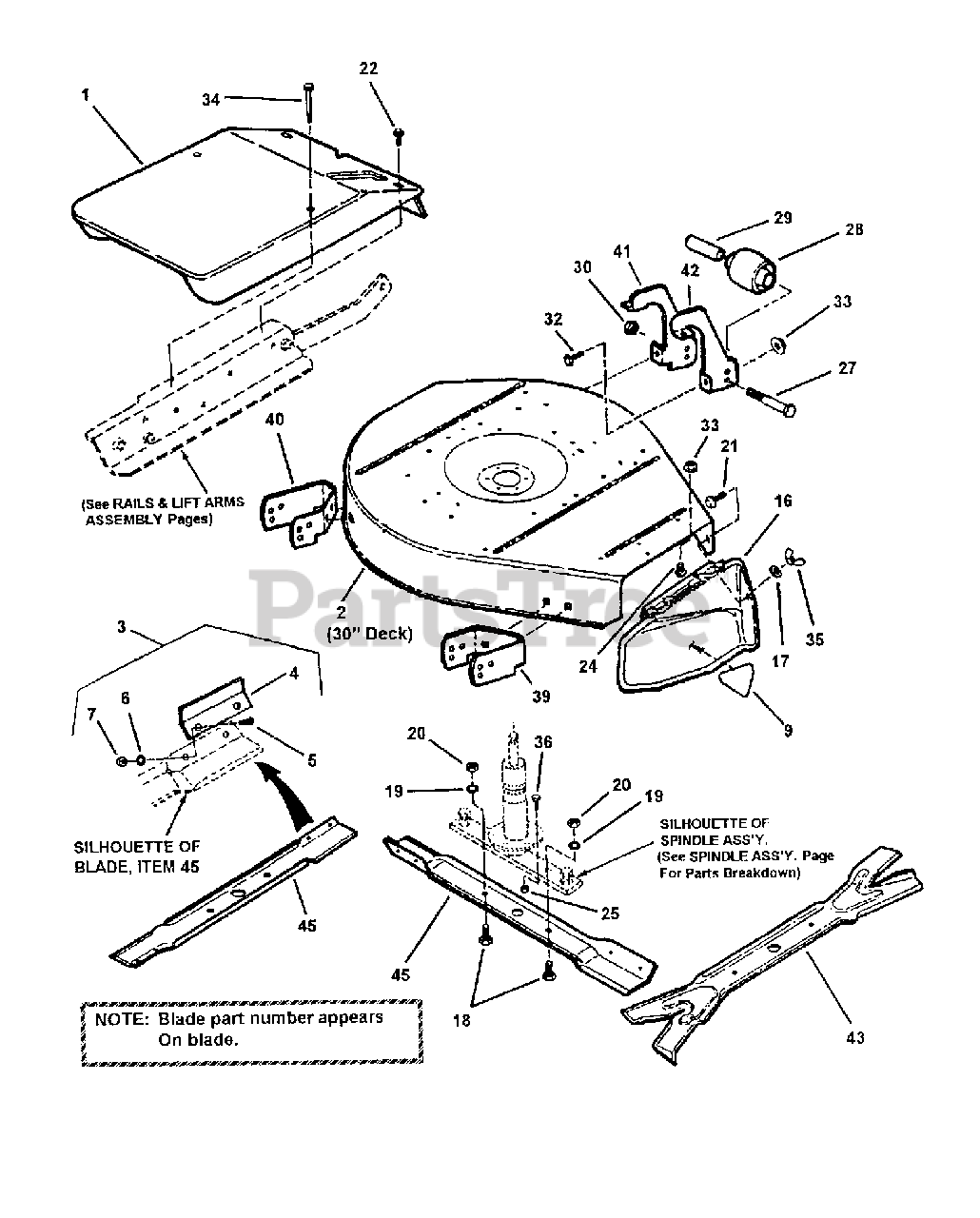

301320BE (84583) - Snapper 30" Rear-Engine Riding Mower, 13hp Cutting Deck, Deflector - 30 Parts Diagram

30" Rear-Engine Riding Mower, 13hp

Cutting Deck, Deflector - 30 Parts Diagram

  • Title

1

Snapper 7073434

COVER, Spindle
(Superseded to 7073434YP)

$125.99

$

In Stock, only 4 left!

0

2

Snapper 7061971

DECK, 30" (Painted w/decals)
(Superseded to 7061971YP)

$902.99

$

Usually ships in 2-12 days

0

3

Snapper 7060735

KIT, Air Lift (30" Models)
(Superseded to 7060735YP)

Note: (Incl. items 4 thru 7)

$62.99

$

Usually ships in 2-12 days

0

4

Snapper 7031724

AIR-LIFT (30" Models)(Not shown)
(Superseded to 7031724YP)

$27.99

$

Usually ships in 2-12 days

0

5

Snapper 7090228

SCREW, 5/16-24 x 11/16" Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, only 4 left!

0

6

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7013010

DECAL, Danger
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 20+

0

16

Snapper 7052553

DEFLECTOR, 30" Discharge
(Superseded to 7052553YP)

$243.99

$

In Stock, only 1 left!

0

17

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7090392

SCREW, 1/2-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703880)

$4.49

$

In Stock, Qty 13

0

19

Snapper 7090509

WASHER, 1/2" Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, only 2 left!

0

21

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7090741

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

Note: Was 91016

$4.49

$

In Stock, only 2 left!

0

24

Snapper 7091525

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

25

Snapper 7091619

NUT, 3/18-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

27

Snapper 7091532

SCREW, 3/8-24 x 3-3/4" Hex Head Cap, Grade 5
(Superseded to 703876)

$6.99

$

In Stock, Qty 17

0

28

Snapper 7019190

WHEEL, Gage
(Superseded to 7019190YP)

$11.99

$

In Stock, Qty 15

0

29

Snapper 7015272

SPACER
(Superseded to 7015272YP)

$7.49

$

In Stock, only 2 left!

0

30

Snapper 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 9

0

32

Snapper 7090731

BOLT, 5/16-18 x 1/2" Carriage
(Superseded to 703798)

$4.49

$

In Stock, Qty 20+

0

33

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

34

Snapper 7091015

SCREW, 1/4-20 Hex Washer Self-Tap
(Superseded to 7091015YP)

$5.99

$

In Stock, only 2 left!

0

35

Snapper 7091537

WING-NUT, 5/16-18
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, Qty 12

0

36

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7034025

BRACKET, Anti-Scalp, 30" R.H.
(Superseded to 7034025YP)

$29.99

$

Usually ships in 2-12 days

0

40

Snapper 7034026

BRACKET, Anti-Scalp, 30" L.H.
(Superseded to 7034026YP)

$29.99

$

In Stock, only 1 left!

0

41

Snapper 7034743

BRACKET, Anti-Scalp, 30" L.H.

$

$

Not available

42

Snapper 7034760

BRACKET, Anti-Scalp, 30" R.H.

$

$

Not available

43

Snapper 7026565

BLADE, Ninja 30"
(Superseded to 7026565BZYP)

$93.99

$

In Stock, only 4 left!

0

45

Snapper 7018069

30" BLADE
(Superseded to 7018069BZYP)

$32.99

$

In Stock, Qty 17

0
