30133 - Toro 32" Recycler Mower Deck (SN: 000000001 - 000999999) (1990)

32" Recycler Mower Deck

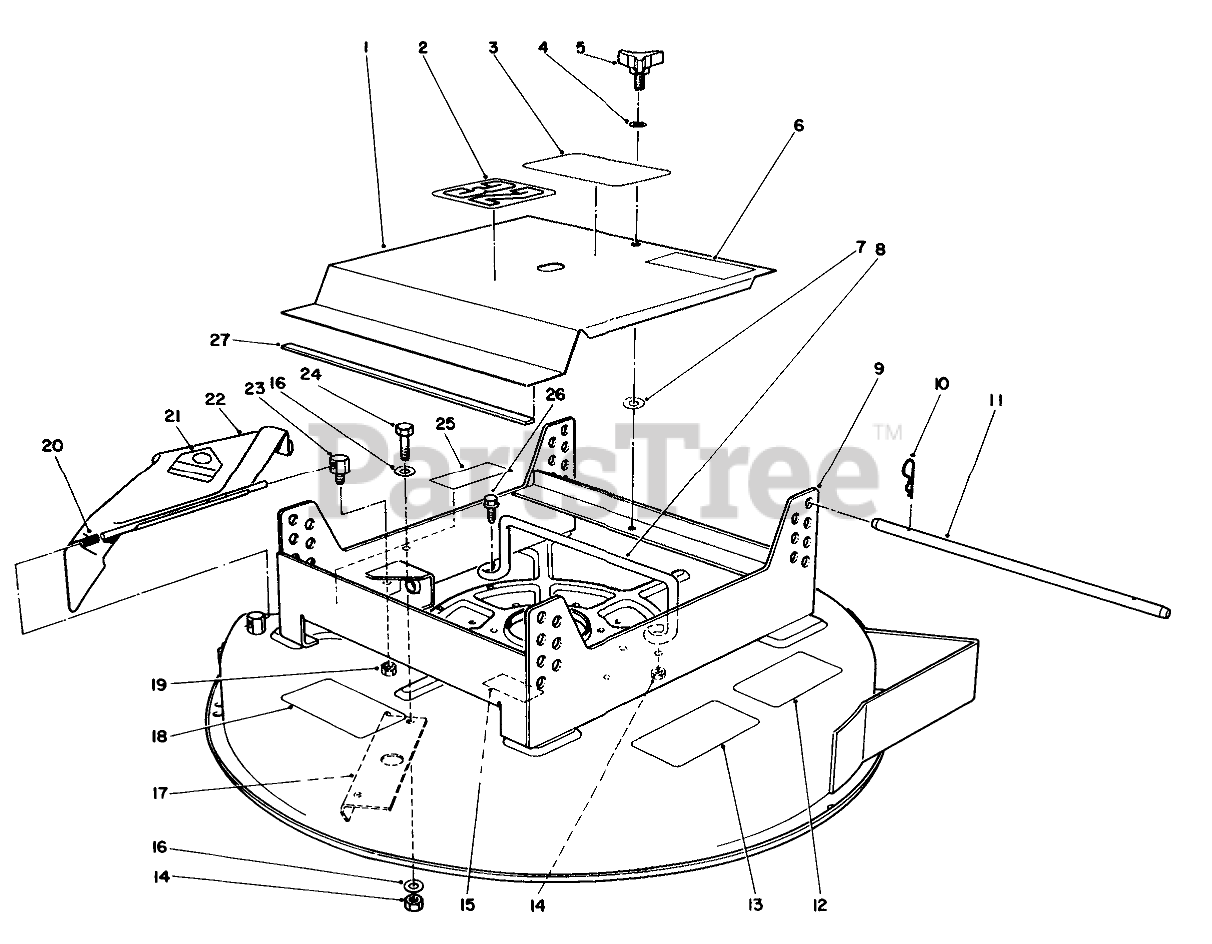

30133 - Toro 32" Recycler Mower Deck (SN: 000000001 - 000999999) (1990) > Parts Diagrams (3) > CUTTING UNIT ASSEMBLY

  • Title
67-6150

1

Cover (Incl. Ref. #2-7 & 27)

Part# 67-6150

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $329.24

67-6170

2

DECAL

Part# 67-6170

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.44

74-2080

3

DECAL-PROLINE

Part# 74-2080

OEM Warranty Repair Part for Toro

Not available

3256-24

4

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.51

27-4571

5

Knob

Part# 27-4571 (Superseded to 62-6520)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.91

54-0910

6

DECAL-HOT

Part# 54-0910

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.57

32151-72

7

RING-RETAINING

Part# 32151-72

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.14

74-0570

8

GUIDE-BELT

Part# 74-0570

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $46.51

13-8629

9

Deck Assembly

Part# 13-8629 (Superseded to 14-5079)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1383.03

3290-355

10

PIN-HAIR

Part# 3290-355

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.33

67-6140

11

ROD-SUPPORT

Part# 67-6140

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $33.97

42-6860

12

DECAL

Part# 42-6860

OEM Warranty Repair Part for Toro

Not available

66-1330

13

Decal

Part# 66-1330 (Superseded to 68-8340)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $13.39

3296-29

14

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.87

67-5360

15

DECAL-DANGER

Part# 67-5360

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.57

3256-23

16

WASHER-PLAIN

Part# 3256-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.72

44-5720

17

Baffle Deck

Part# 44-5720 (Superseded to 44-5720-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $32.97

66-1340

18

DECAL-DANGER, THROWN OBJECT

Part# 66-1340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.01

32153-2

19

NUT-LOCK, SIDE

Part# 32153-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.59

28-8010

20

SPRING

Part# 28-8010

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.42

54-9220

21

DECAL-DANGER

Part# 54-9220 (Superseded to 93-1122)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.06

44-5930

22

Deflector Assembly (Incl. Ref. #21)

Part# 44-5930

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $114.30

28-7350

23

POST-PIVOT

Part# 28-7350

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.50

322-4

24

SCREW-HH

Part# 322-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.57

66-6380

25

DECAL-DANGER

Part# 66-6380

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.48

3234-29

26

SCREW-HHF

Part# 3234-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.12

67-6180

27

STRIP-MAGNETIC

Part# 67-6180

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.47
