30133 - Toro 32" Recycler Mower Deck (SN: 008000001 - 008999999) (1988) DRIVE SPINDLE ASSEMBLY Parts Diagram

32" Recycler Mower Deck

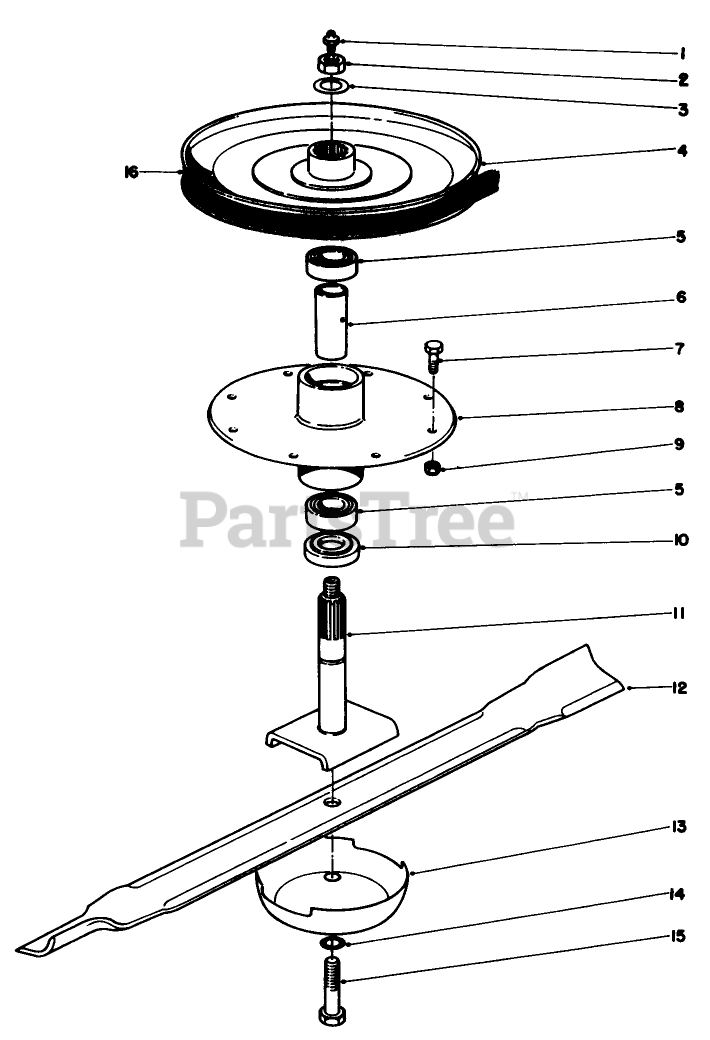

DRIVE SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2

Toro 32146-19

Locknut
(Superseded to 3296-41)

$6.99

$

In Stock, Qty 9

0

3

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

4

Toro 67-6030

Pulley
(Superseded to 74-0580)

$306.99

$

Usually ships in 3-6 days

0

5

Toro 251-257

BEARING-BALL

$14.99

$

In Stock, Qty 10

0

6

Toro 67-6070

SPACER-BEARING

$60.99

$

Usually ships in 3-6 days

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 67-6060

HOUSING-SPINDLE
(Superseded to 67-6060-03)

$603.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 67-6080

SPACER

$108.99

$

Usually ships in 3-6 days

0

11

Toro 67-6040

Shaft-Spindle
(Superseded to 99-5880)

$

$

Not available

12

Toro 33-4750

Blade
(Superseded to 33-4750-03)

$61.99

$

In Stock, only 3 left!

0

13

Toro 7-3522

Cup
(Superseded to 92-6313)

$55.99

$

Usually ships in 3-6 days

0

14

Toro 3253-23

WASHER-LOCK/SP

$5.49

$

In Stock, only 3 left!

0

15

Toro 51-4060

SCREW-BLADE

$8.49

$

In Stock, Qty 20+

0

16

Toro 54-2751

V-BELT

$69.99

$

Usually ships in 3-6 days

0
