30133 - Toro 32" Recycler Mower Deck (SN: 008000001 - 008999999) (1988) FRAME ASSEMBLY Parts Diagram

32" Recycler Mower Deck

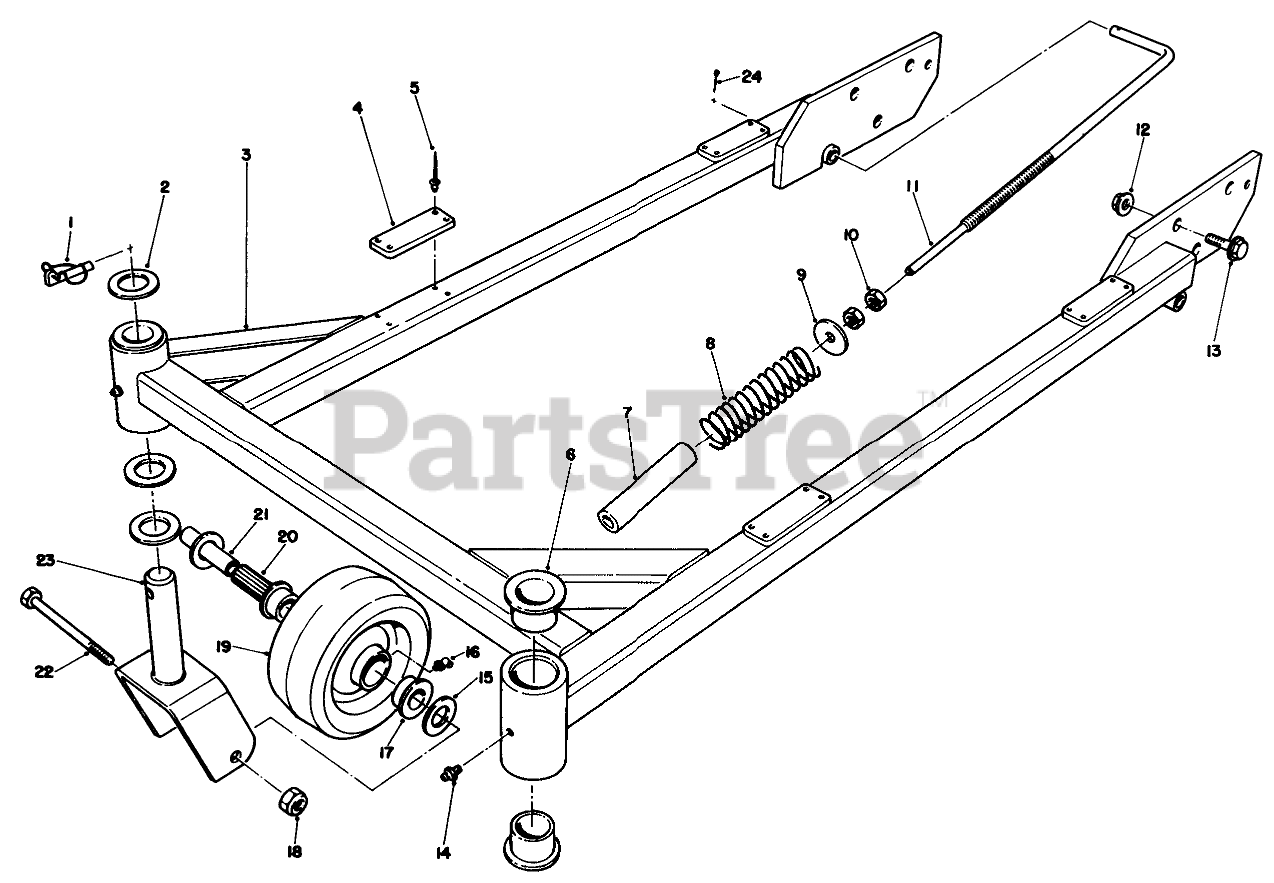

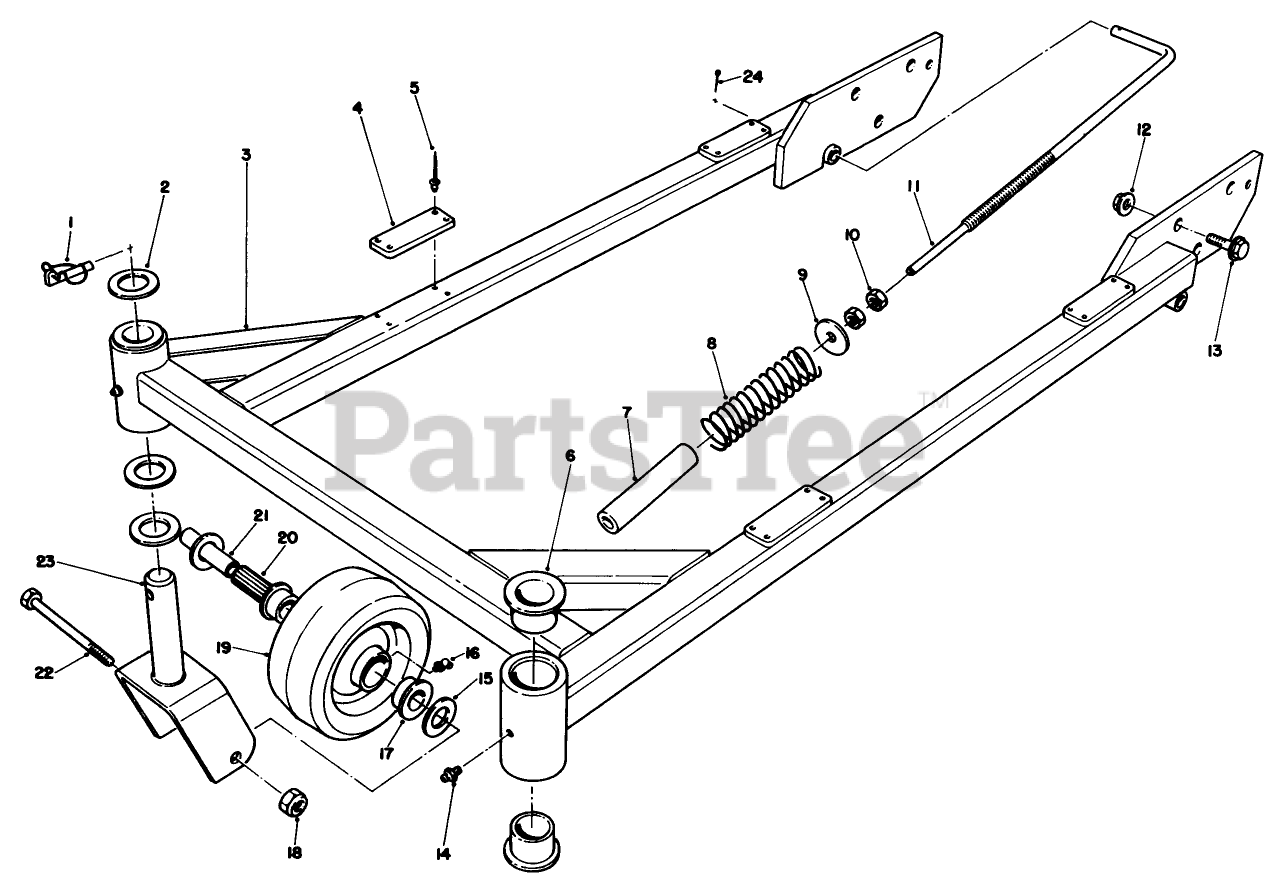

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-384

PIN-LYNCH

$21.99

$

Usually ships in 3-6 days

0

2

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

3

Toro 67-6230

CARRIER FRAME WA

$

$

Not available

4

Toro 67-6320

Pad-Rubber
(Superseded to 74-0330)

$10.99

$

Usually ships in 3-6 days

0

5

Toro 3269-24

RIVET

$2.99

$

In Stock, Qty 16

0

6

Toro 28-9290

Bushing
(Superseded to 94-1291)

$10.99

$

In Stock, Qty 20+

0

7

Toro 51-3480

SLEEVE-TUBE, 36 INCH

$

$

Not available

8

Toro 47-0960

SPRING-COMPRESSION

$84.99

$

Usually ships in 3-6 days

0

9

Toro 51-3500

WASHER

$2.99

$

Usually ships in 3-6 days

0

10

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 10

0

11

Toro 51-3491

ADJUSTING SHAFT

$

$

Not available

12

Toro 32128-27

NUT-LOCK, FLANGE

$4.49

$

Usually ships in 3-6 days

0

13

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

15

Toro 67-6570

SPACER-WHEEL

$18.99

$

Usually ships in 3-6 days

0

16

Toro 302-11

FITTING-LUBE, 45 DEG

$1.49

$

In Stock, only 4 left!

0

17

Toro 62-5580

BEARING-OUTSIDE

$6.99

$

In Stock, Qty 20+

0

18

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 18

0

19

Toro 63-8400

Wheel-Castor (Incl. Ref. #16, 17 & 20)

$80.99

$

In Stock, only 2 left!

0

20

Toro 63-8580

BEARING-ROLLER

$15.99

$

Usually ships in 3-6 days

0

21

Toro 67-6220

SPANNER

$25.99

$

In Stock, only 1 left!

0

22

Toro 325-18

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

23

Toro 67-6190

Fork-Caster
(Superseded to 93-1164-01)

$202.99

$

Usually ships in 3-6 days

0

24

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0
