30133 - Toro 32" Recycler Mower Deck (SN: 010000001 - 019999999) (1991) Cutting Unit Assembly Parts Diagram

32" Recycler Mower Deck

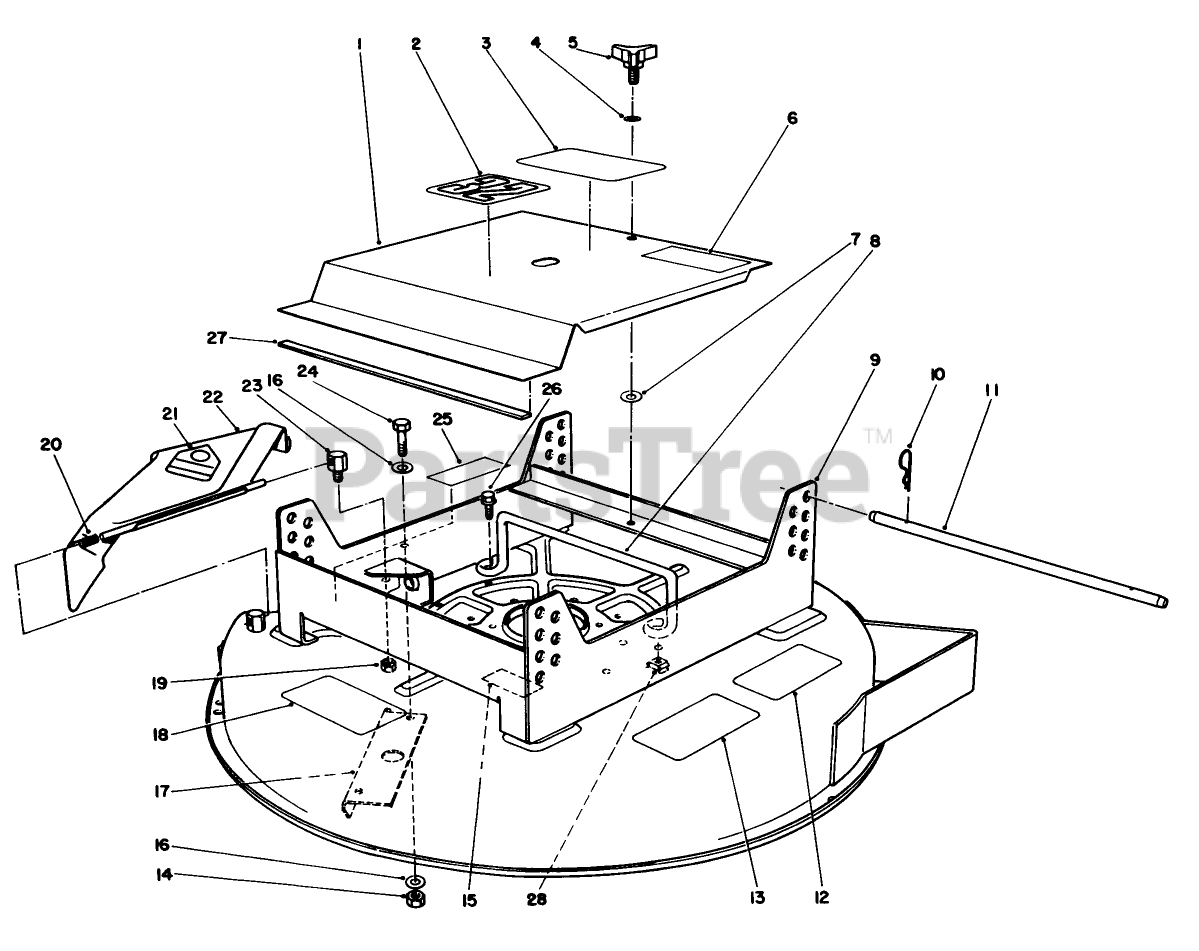

Cutting Unit Assembly Parts Diagram

  • Title

1

Toro 67-6150

COVER ASSEMBLY

$603.99

$

Usually ships in 3-6 days

0

2

Toro 67-6170

DECAL

$

$

Not available

3

Toro 74-2080

DISCONTINUED

$

$

Not available

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 27-4571

See Supercession: 62-6520
(Superseded to 62-6520)

$8.99

$

Usually ships in 3-6 days

0

6

Toro 54-0910

DECAL-HOT

$

$

Not available

7

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

8

Toro 74-0570

GUIDE-BELT

$82.99

$

Usually ships in 3-6 days

0

9

Toro 14-5079

32 INCH DECK ASM

$

$

Not available

10

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, only 3 left!

0

11

Toro 67-6140

ROD-SUPPORT

$

$

Not available

12

Toro 42-6860

DISCONTINUED

$

$

Not available

13

Toro 66-1330

See Supercession: 68-8340
(Superseded to 68-8340)

$22.99

$

In Stock, only 2 left!

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 9

0

17

Toro 44-5720

See Supercession: 44-5720-03
(Superseded to 44-5720-03)

$

$

Not available

18

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

19

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 15

0

20

Toro 28-8010

SPRING

$27.99

$

Usually ships in 3-6 days

0

21

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 10

0

22

Toro 44-5930

DEFLECTOR ASM

$209.99

$

Usually ships in 3-6 days

0

23

Toro 28-7350

POST-PIVOT

$41.99

$

Usually ships in 3-6 days

0

24

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 66-6380

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

26

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

27

Toro 67-6180

STRIP-MAGNETIC

$

$

Not available

28

Toro 3290-496

NUT-RETAINER

$6.99

$

In Stock, Qty 11

0
