30133 - Toro 32" Recycler Mower Deck (SN: 020000001 - 029999999) (1992) CUTTING UNIT ASSEMBLY Parts Diagram

32" Recycler Mower Deck

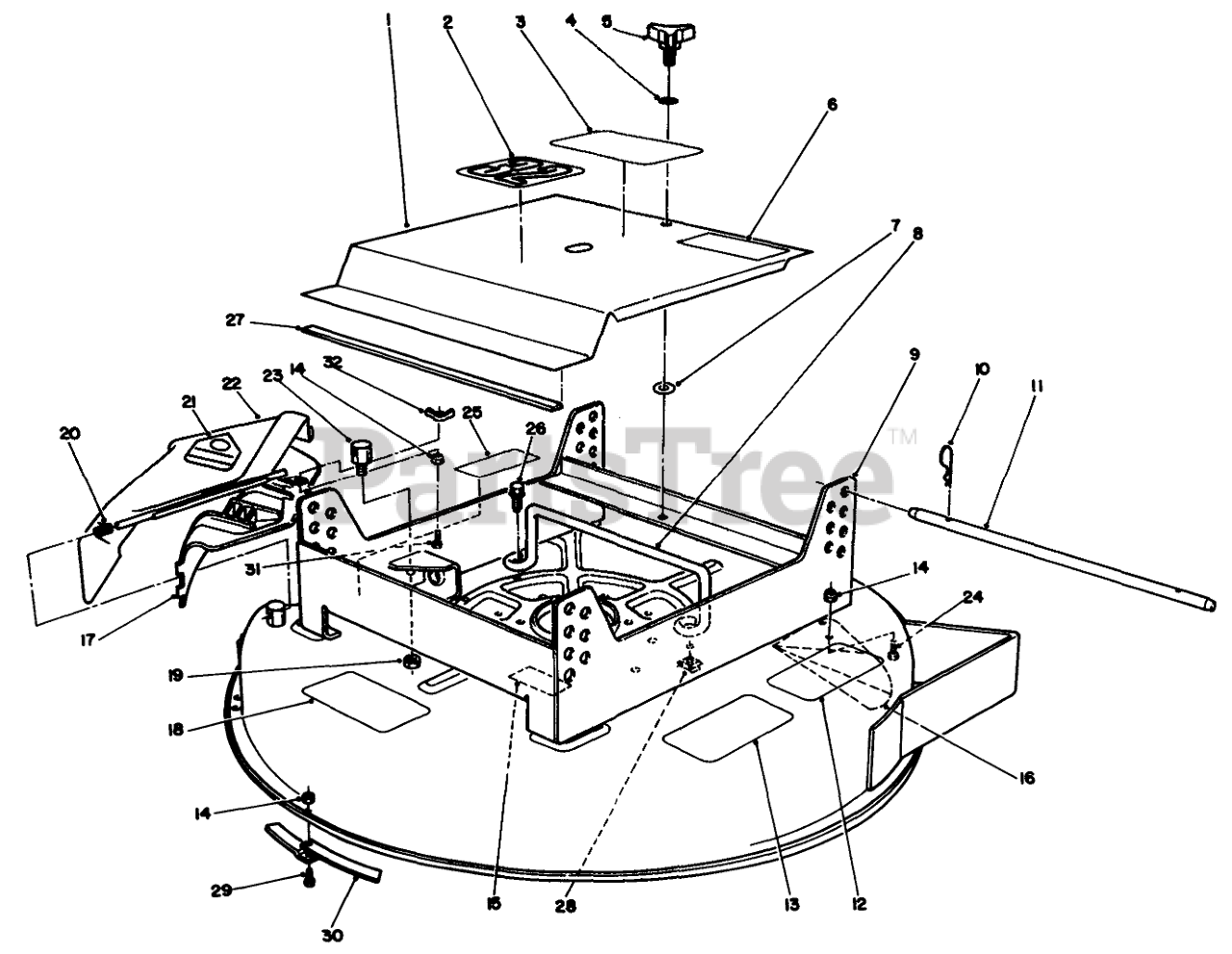

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 67-6150

Cover (Incl. Ref.#2-7 & 27)

$472.99

$

Usually ships in 3-6 days

0

2

Toro 67-6170

DECAL

$

$

Not available

3

Toro 74-2080

DECAL-PROLINE

$

$

Not available

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 62-6520

KNOB

$7.99

$

In Stock, only 2 left!

0

6

Toro 54-0910

DECAL-HOT

$16.99

$

Usually ships in 3-6 days

0

7

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 8

0

8

Toro 74-0570

GUIDE-BELT

$66.99

$

Usually ships in 3-6 days

0

9

Toro 14-5079

32 INCH DECK ASM

$

$

Not available

10

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

11

Toro 67-6140

ROD-SUPPORT

$

$

Not available

12

Toro 42-6860

DECAL

$

$

Not available

13

Toro 66-1330

Decal
(Superseded to 68-8340)

$19.99

$

In Stock, only 3 left!

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

16

Toro 80-2630

Kicker
(Superseded to 80-2630-03)

$31.99

$

In Stock, only 4 left!

0

17

Toro 82-6150

DISCHARGE COVER ASM
(Superseded to 82-6151)

$118.99

$

In Stock, only 2 left!

0

18

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

19

Toro 32153-2

NUT-LOCK, SIDE

$0.99

$

In Stock, Qty 20+

0

20

Toro 28-8010

SPRING

$20.99

$

Usually ships in 3-6 days

0

21

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

22

Toro 44-5930

Deflector Assembly (Incl. Ref. #21)

$164.99

$

Usually ships in 3-6 days

0

23

Toro 28-7350

POST-PIVOT

$33.99

$

Usually ships in 3-6 days

0

24

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

26

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

27

Toro 67-6180

STRIP-MAGNETIC

$30.99

$

Usually ships in 3-6 days

0

28

Toro 3290-496

NUT-RETAINER

$6.49

$

In Stock, Qty 8

0

29

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 80-4490

RING-DECK
(Superseded to 80-4490-03)

$19.99

$

In Stock, Qty 5

0

31

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

32

Toro 32104-14

Nut-Wing

$

$

Currently unavailable
