30133 - Toro 32" Recycler Mower Deck (SN: 049000501 - 049999999) (1994)

32" Recycler Mower Deck

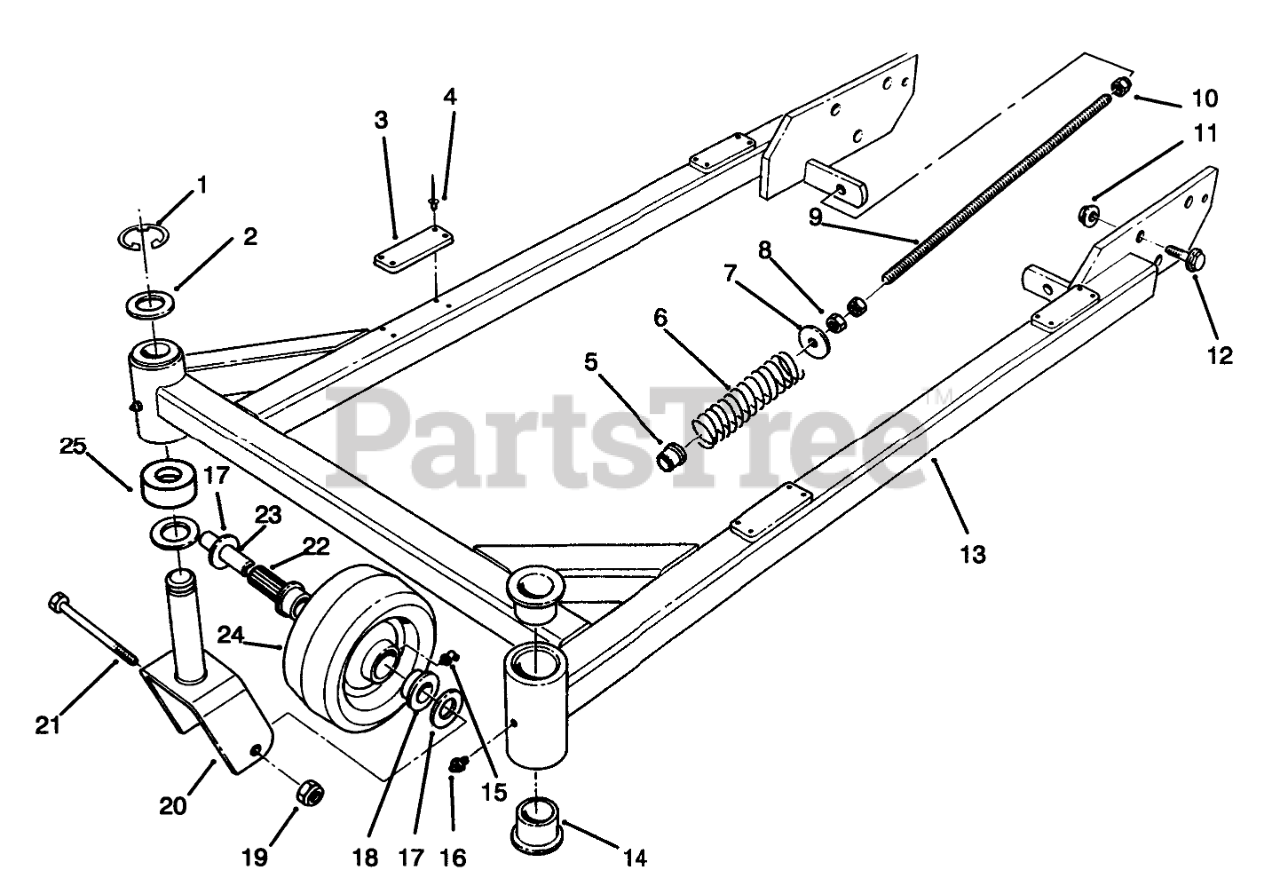

30133 - Toro 32" Recycler Mower Deck (SN: 049000501 - 049999999) (1994) > Parts Diagrams (3) > CARRIER FRAME ASSEMBLY

  • Title
32151-91

1

RING-RETAINING

Part# 32151-91

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

3-6781

2

WASHER-THRUST

Part# 3-6781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.90

74-0330

3

PAD-RUBBER

Part# 74-0330

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.20

3269-24

4

RIVET

Part# 3269-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.34

256-156

5

BUSHING-FLANGE

Part# 256-156

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.25

74-0290

6

SPRING

Part# 74-0290

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.98

41-8440

7

WASHER

Part# 41-8440

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.15

3218-5

8

NUT-JAM

Part# 3218-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.79

74-0310

9

SHAFT-ADJUSTING

Part# 74-0310

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $38.14

3296-45

10

NUT-LOCK, NI

Part# 3296-45

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.84

32128-23

11

NUT-HF

Part# 32128-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.45

3234-6

12

SCREW-HHF

Part# 3234-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.40

74-0080

13

Carrier Frame Assembly (Incl. Ref. #3,4,14 & 16)

Part# 74-0080

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1539.02

28-9290

14

Bushing

Part# 28-9290 (Superseded to 94-1291)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.49

302-11

15

FITTING-LUBE, 45 DEG

Part# 302-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.00

302-5

16

FITTING-GREASE

Part# 302-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.43

67-6570

17

SPACER-WHEEL

Part# 67-6570

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.03

62-5580

18

BEARING-OUTSIDE

Part# 62-5580

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.23

32153-5

19

NUT-HEX

Part# 32153-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.48

93-1164

20

Fork-Castor

Part# 93-1164 (Superseded to 93-1164-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $136.27

325-18

21

SCREW-HH

Part# 325-18

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.62

63-8580

22

BEARING-ROLLER

Part# 63-8580

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.13

67-6220

23

SPANNER

Part# 67-6220

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $17.09

63-8400

24

Wheel Assembly-Castor (Incl. Ref. #15,18, & 22)

Part# 63-8400

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $61.93

93-1166

25

SPACER-CASTOR

Part# 93-1166

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.18
