30133 - Toro 32" Recycler Mower Deck (SN: 200000001 - 200999999) (2000) DRIVE SPINDLE ASSEMBLY Parts Diagram

32" Recycler Mower Deck

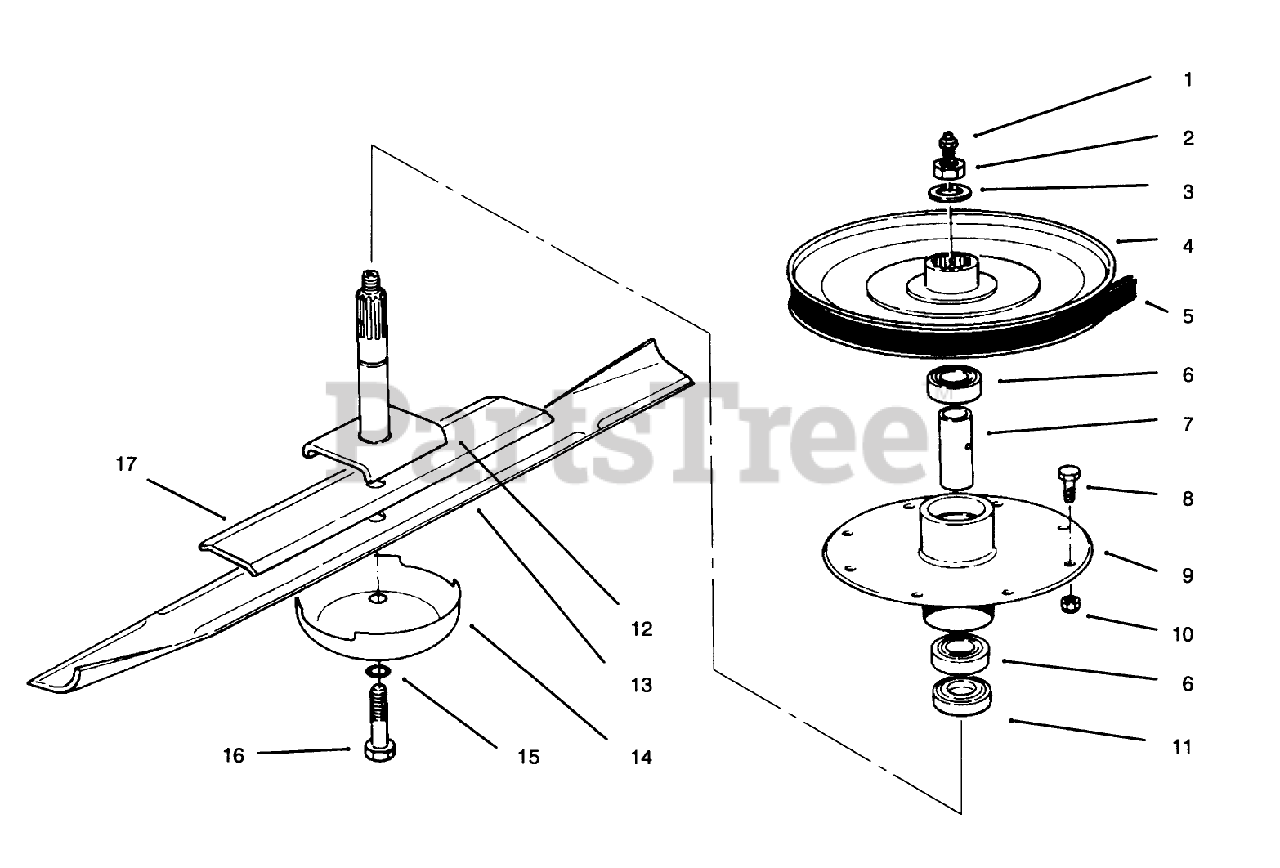

DRIVE SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 17

0

2

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

3

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

4

Toro 74-0580

PULLEY ASM

$306.99

$

Usually ships in 3-6 days

0

5

Toro 67-6920

V-BELT

$71.99

$

Usually ships in 3-6 days

0

6

Toro 251-257

BEARING-BALL

$14.99

$

In Stock, Qty 10

0

7

Toro 67-6070

SPACER-BEARING

$60.99

$

Usually ships in 3-6 days

0

8

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 67-6060

HOUSING-SPINDLE
(Superseded to 67-6060-03)

$603.99

$

Usually ships in 3-6 days

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 67-6080

SPACER

$108.99

$

Usually ships in 3-6 days

0

12

Toro 92-5763

SHAFT-SPINDLE

$349.99

$

Usually ships in 3-6 days

0

13

Toro 80-4430

BLADE-RECYCLER
(Superseded to 80-4430-03)

$55.99

$

In Stock, Qty 14

0

14

Toro 92-6313

CUP-SCALP, ANTI

$55.99

$

Usually ships in 3-6 days

0

15

Toro 3253-23

WASHER-LOCK/SP

$5.49

$

In Stock, only 3 left!

0

16

Toro 51-4060

SCREW-BLADE

$8.49

$

In Stock, Qty 20+

0

17

Toro 82-4770

BLADE SPACER ASSEMBLY

$157.99

$

Usually ships in 3-6 days

0
