30135 - Toro 36" Side-Discharge Mower Deck (SN: 089000001 - 089999999) (1998)

36" Side-Discharge Mower Deck

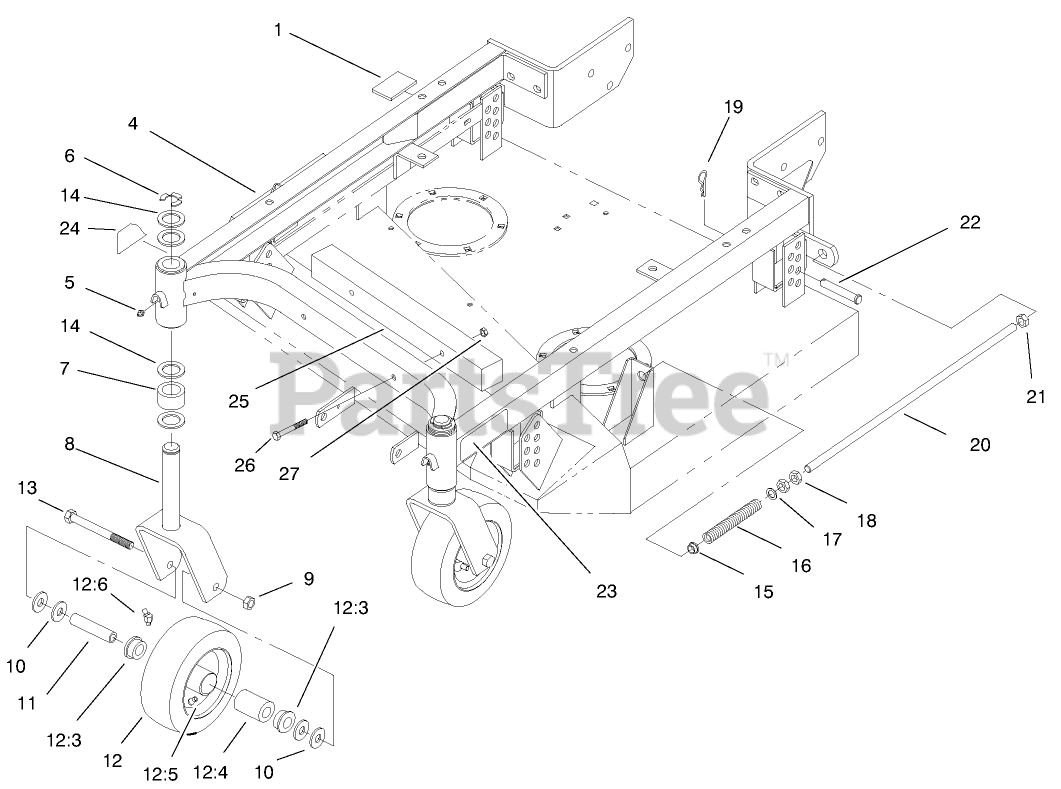

30135 - Toro 36" Side-Discharge Mower Deck (SN: 089000001 - 089999999) (1998) > Parts Diagrams (5) > CARRIER FRAME AND CASTOR ASSEMBLY

  • Title
74-0350

1

CUSHION-RUBBER

Part# 74-0350

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.12

95-2821

4

CARRIER FRAME

Part# 95-2821

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1520.87

302-5

5

FITTING-GREASE

Part# 302-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.43

32151-91

6

RING-RETAINING

Part# 32151-91

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

93-1167

7

SPACER-CASTOR

Part# 93-1167

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.19

98-2857

8

Castor Fork

Part# 98-2857 (Superseded to 98-2857-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $164.27

32153-5

9

NUT-HEX

Part# 32153-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.48

3256-6

10

WASHER-FLAT

Part# 3256-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.49

68-8980

11

SPANNER-TIRE

Part# 68-8980

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.98

98-2859

12

CASTOR WHEEL ASM

Part# 98-2859

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $87.48

62-5580

12:3

BEARING-OUTSIDE

Part# 62-5580

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.23

62-5570

12:4

BEARING-ROLLER

Part# 62-5570

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.35

232-27

12:5

STEM-VALVE

Part# 232-27 (Superseded to 5108)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.95

302-11

12:6

FITTING-LUBE, 45 DEG

Part# 302-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.00

325-19

13

SCREW-HH

Part# 325-19

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.90

3-6781

14

WASHER-THRUST

Part# 3-6781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.90

256-156

15

BUSHING-FLANGE

Part# 256-156

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.25

74-0290

16

SPRING

Part# 74-0290

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.98

41-8440

17

WASHER

Part# 41-8440

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.15

3218-5

18

NUT-JAM

Part# 3218-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.79

3290-355

19

PIN-HAIR

Part# 3290-355

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.23

74-0310

20

SHAFT-ADJUSTING

Part# 74-0310

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $38.14

3296-45

21

NUT-LOCK, NI

Part# 3296-45

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.84

283-55

22

PIN-CLEVIS

Part# 283-55

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.84

85-7450

23

DECAL-HOC, LH

Part# 85-7450

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.31

85-7460

24

DECAL-HOC, RH

Part# 85-7460

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.31

80-3340

25

Weight

Part# 80-3340 (Superseded to 106-0820)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $202.05

322-11

26

SCREW-HH

Part# 322-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.13

3296-29

27

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81
