30135 - Toro 36" Side-Discharge Mower Deck (SN: 200000001 - 200999999) (2000) DECK ASSEMBLY Parts Diagram

36" Side-Discharge Mower Deck

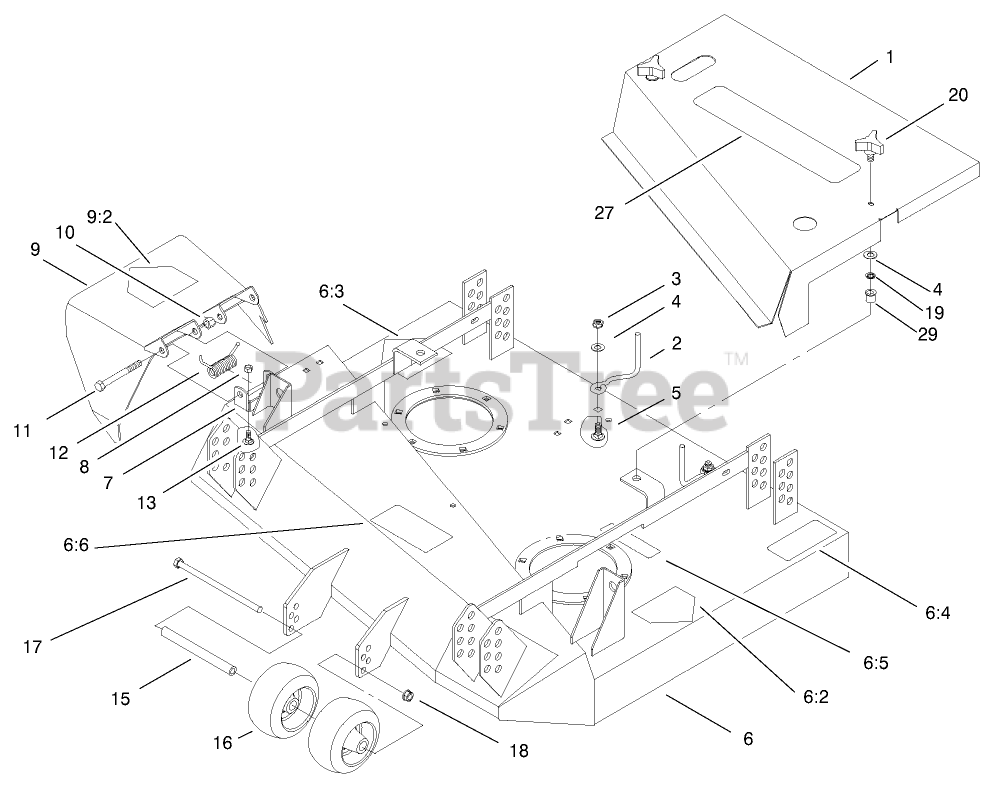

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 82-5460-01

COVER

$

$

Not available

2

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, Qty 6

0

3

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

6

Toro 99-8524

DECK ASM

$

$

Not available

6:2

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

6:3

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 16

0

6:4

Toro 68-8340

DECAL-TORQUE

$19.99

$

In Stock, only 3 left!

0

6:5

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

6:6

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

7

Toro 29-5590-01

BRACKET-PIVOT

$34.99

$

Usually ships in 3-6 days

0

8

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

9

Toro 99-8526

DEFLECTOR ASM
(Superseded to 13-3879)

$

$

Not available

9:2

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 16

0

10

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

11

Toro 3211-15

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

12

Toro 40-6230

SPRING

$38.99

$

Usually ships in 3-6 days

0

13

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 13

0

15

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

16

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

17

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 8

0

20

Toro 62-6520

KNOB

$7.99

$

In Stock, only 2 left!

0

27

Toro 98-8038

DECAL-36"

$25.99

$

Usually ships in 3-6 days

0

29

Toro 32148-10

INSERT-NUT

$8.49

$

Usually ships in 3-6 days

0
