30137 - Toro 37" Recycler Mower Deck (SN: 020000001 - 029999999) (1992) COVER & PULLEY ASSEMBLY Parts Diagram

37" Recycler Mower Deck

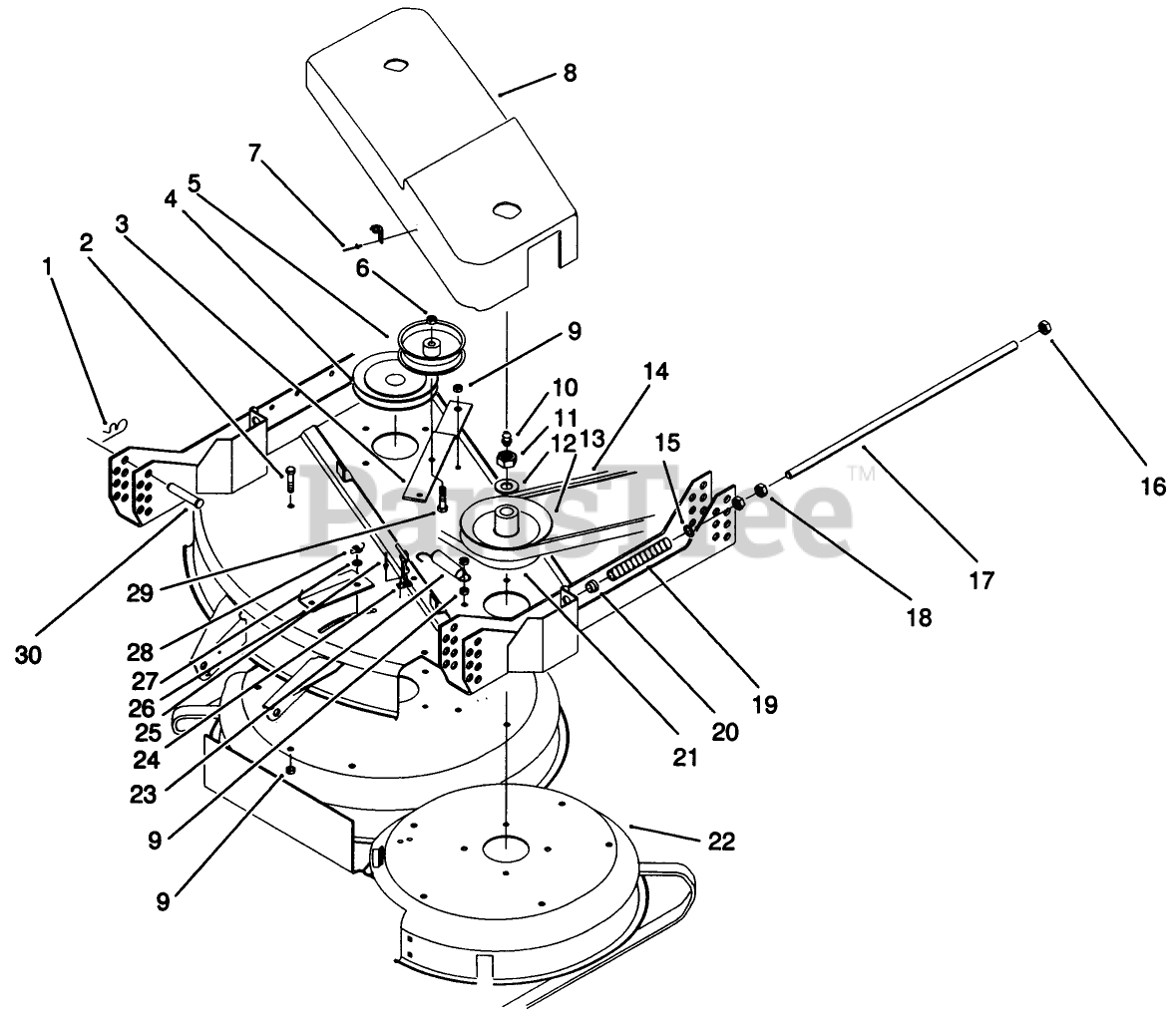

COVER & PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 84-4330

Lever-Idler
(Superseded to 84-4330-03)

$40.99

$

Usually ships in 3-6 days

0

4

Toro 84-4440

PULLEY-OUTSIDE

$109.99

$

Usually ships in 3-6 days

0

5

Toro 36-3220

PULLEY-IDLER

$36.99

$

In Stock, only 2 left!

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 3290-415

RIVET

$0.99

$

Usually ships in 3-6 days

0

8

Toro 84-4350

COVER-PULLEY

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 17

0

11

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

12

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

13

Toro 84-4360

PULLEY-CENTER

$178.99

$

Usually ships in 3-6 days

0

14

Toro 84-4390

V-BELT, DECK DRIVE

$52.99

$

In Stock, only 2 left!

0

15

Toro 41-8440

WASHER

$1.99

$

In Stock, only 4 left!

0

16

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

17

Toro 74-0310

SHAFT-ADJUSTING

$68.99

$

In Stock, only 2 left!

0

18

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

19

Toro 74-0290

SPRING

$28.99

$

Usually ships in 3-6 days

0

20

Toro 256-156

BUSHING-FLANGE

$14.99

$

Usually ships in 3-6 days

0

21

Toro 84-4410

V-BELT, DECK

$37.99

$

Usually ships in 3-6 days

0

22

Toro 14-7119

Deck W.A. (Incl. Ref. #3, & 33 on Page 1)

$

$

Not available

23

Toro 54-1160

SPRING-EXTENSION, DECK

$59.99

$

In Stock, only 2 left!

0

24

Toro 106825

ASSY-FLEX DRAW LATCH

$55.99

$

In Stock, only 2 left!

0

25

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

26

Toro 84-4420

Cover-Slot
(Superseded to 84-4420-01)

$

$

Not available

27

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

28

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0

29

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 283-55

PIN-CLEVIS

$12.99

$

In Stock, only 3 left!

0
