30137 - Toro 37" Recycler Mower Deck (SN: 049000286 - 049001035) (1994) COVER & PULLEY ASSEMBLY Parts Diagram

37" Recycler Mower Deck

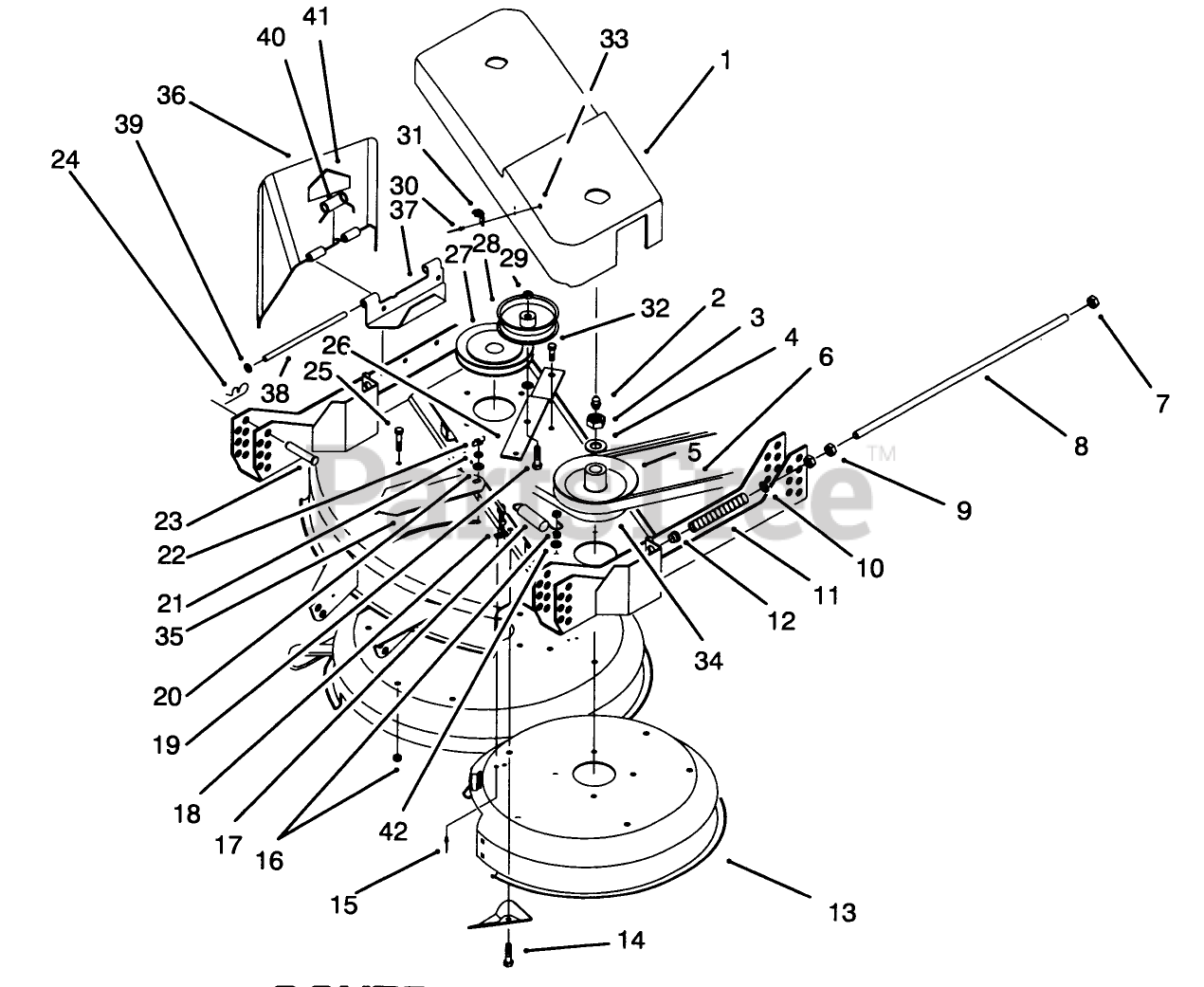

COVER & PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 84-4350

COVER-PULLEY

$

$

Not available

2

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 4 left!

0

3

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

4

Toro 7-4150

WASHER

$1.49

$

In Stock, only 2 left!

0

5

Toro 84-4360

PULLEY-CENTER

$

$

Not available

6

Toro 84-4390

V-BELT, DECK DRIVE

$52.99

$

In Stock, only 2 left!

0

7

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

8

Toro 74-0310

SHAFT-ADJUSTING

$72.99

$

In Stock, only 2 left!

0

9

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 10

0

10

Toro 41-8440

WASHER

$1.99

$

Usually ships in 3-6 days

0

11

Toro 74-0290

SPRING

$29.99

$

Usually ships in 3-6 days

0

12

Toro 256-156

BUSHING-FLANGE

$14.99

$

In Stock, only 2 left!

0

13

Toro 14-9689

Deck (Incl. Ref. #1 & 10 on pg.1)

$

$

Not available

14

Toro 322-7

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

15

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 7

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 54-1160

SPRING-EXTENSION, DECK

$60.99

$

In Stock, only 2 left!

0

18

Toro 117341

Latch Assembly (Incl. Ref. #31)

$

$

Not available

19

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

22

Toro 32103-27

NUT-WING

$2.49

$

Usually ships in 3-6 days

0

23

Toro 283-55

PIN-CLEVIS

$12.99

$

In Stock, only 4 left!

0

24

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, only 3 left!

0

25

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 84-4330

Lever-Idler
(Superseded to 84-4330-03)

$41.99

$

Usually ships in 3-6 days

0

27

Toro 84-4440

PULLEY-OUTSIDE

$113.99

$

In Stock, only 1 left!

0

28

Toro 36-3220

PULLEY-IDLER

$37.99

$

Usually ships in 3-6 days

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Toro 3290-415

RIVET

$0.99

$

Usually ships in 3-6 days

0

31

Toro 117343

KEEPER-LATCH

$5.49

$

In Stock, only 2 left!

0

32

Toro 19-1471

SCREW-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

33

Toro 3269-10

WASHER-BACK

$0.99

$

In Stock, only 4 left!

0

34

Toro 84-4410

V-BELT, DECK

$37.99

$

In Stock, only 2 left!

0

35

Toro 84-4420

Cover-Slot
(Superseded to 84-4420-01)

$

$

Not available

36

Toro 82-7520

Deflector-Discharge
(Superseded to 99-8511)

$

$

Not available

37

Toro 82-7530

Hinge-Deflector
(Superseded to 82-7530-01)

$

$

Not available

38

Toro 82-7540

PIN-HINGE

$

$

Not available

39

Toro 32151-56

RING-RETAINING, EXTERNAL

$6.99

$

In Stock, only 2 left!

0

40

Toro 40-6230

SPRING

$43.99

$

Usually ships in 3-6 days

0

41

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 10

0

42

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
