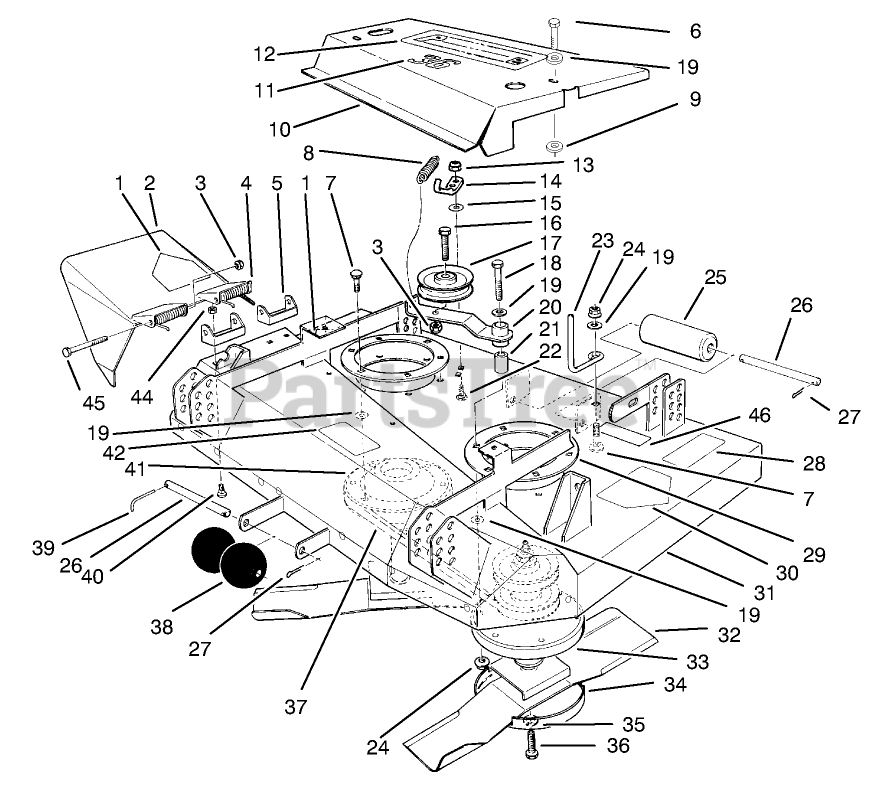

30138 - Toro 36" Side-Discharge Mower Deck (SN: 069000001 - 069999999) (1996) > Parts Diagrams (5) > CUTTING UNIT ASSEMBLY

  • Title

1

Decal (Ref)

Part#

Not available

51-3670

2

Deflector-Grass

Part# 51-3670 (Superseded to 13-3879)

OEM Warranty Repair Part for Toro

Not available

3296-5

3

NUT-HEX

Part# 3296-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.56

40-6230

4

SPRING

Part# 40-6230

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $25.64

29-5590

5

Bracket-Pivot

Part# 29-5590 (Superseded to 29-5590-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $23.18

323-4

6

SCREW-HH

Part# 323-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.86

3231-22

7

SCREW-CARR

Part# 3231-22

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.42

51-3650

8

SPRING-EXTENSION

Part# 51-3650

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.17

32151-72

9

RING-RETAINING

Part# 32151-72

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

82-5460

10

Cover ASM

Part# 82-5460 (Superseded to 82-5460-01)

OEM Warranty Repair Part for Toro

Not available

51-3730

11

Decal-36 Inch

Part# 51-3730

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.08

74-2080

12

DECAL-PROLINE

Part# 74-2080

OEM Warranty Repair Part for Toro

Not available

3296-29

13

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.78

56-4360

14

ROD - SPRING

Part# 56-4360

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $46.98

3256-2

15

WASHER-FLAT

Part# 3256-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.44

3211-5

16

SCREW-HH

Part# 3211-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.44

51-3660

17

PULLEY-IDLER

Part# 51-3660

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $34.65

323-12

18

SCREW-HH

Part# 323-12

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.87

3256-24

19

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.49

56-4341

20

Wa-Arm

Part# 56-4341 (Superseded to 56-4341-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $52.97

51-3641

21

SLEEVE-PIVOT, IDLER

Part# 51-3641

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $13.54

3230-22

22

SCREW-CARR

Part# 3230-22

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.78

52-4780

23

ROD-BELT

Part# 52-4780

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.44

32128-21

24

NUT-HF

Part# 32128-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.58

36-1740

25

ROLLER-DECK

Part# 36-1740

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $29.63

40-6400

26

SHAFT-ROLLER

Part# 40-6400

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $26.82

3272-11

27

PIN-COTTER

Part# 3272-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.88

28

Decal (Ref)

Part#

Not available

27-7680

29

SUPPORT-DECK, RING

Part# 27-7680 (Superseded to 27-7680-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $55.98

30

Decal (Ref)

Part#

Not available

82-5480

31

Deck ASM

Part# 82-5480 (Superseded to 99-8524)

OEM Warranty Repair Part for Toro

Not available

56-2390

32

BLADE-SAIL, EXTRA HIGH

Part# 56-2390 (Superseded to 56-2390-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $23.47

27-0990

Blade

Part# 27-0990 (Superseded to 27-0990-03)

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $14.50

54-7781

33

HOUSING - SPINDLE ASM

Part# 54-7781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $605.46

72-9361

34

CUP-SCALP, ANTI

Part# 72-9361

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $29.09

3253-27

35

WASHER-LOCK

Part# 3253-27

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81

44-2200

36

SCREW-BLADE

Part# 44-2200

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.09

29-4820

38

ROLLER

Part# 29-4820

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.92

57-0690

39

PIN-SPECIAL

Part# 57-0690

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.17

3230-18

40

SCREW-CARR

Part# 3230-18

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.93

27-0870

41

SPINDLE ASM

Part# 27-0870

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $399.12

42

Decal-Caution (Ref)

Part#

Not available

32152-1

44

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.33

3211-15

45

SCREW-HH

Part# 3211-15

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.91

46

Decal-Danger (Ref)

Part#

Not available
