30138 - Toro 92cm Side-Discharge Mower Deck (SN: 099000001 - 099999999) (1999) DECK AND PULLEYS ASSEMBLY Parts Diagram

92cm Side-Discharge Mower Deck

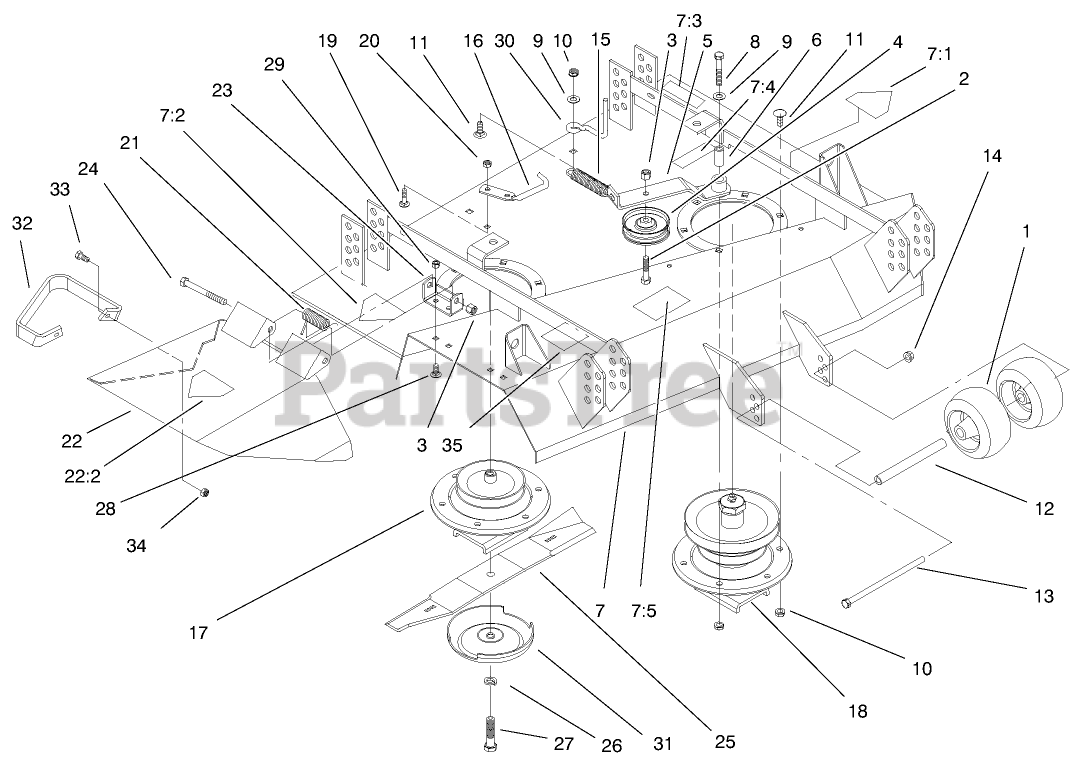

DECK AND PULLEYS ASSEMBLY Parts Diagram

  • Title

1

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$25.99

$

In Stock, Qty 20+

0

2

Toro 3211-5

SCREW-HH

$3.99

$

In Stock, Qty 5

0

3

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

4

Toro 51-3660

PULLEY-IDLER

$43.99

$

In Stock, only 2 left!

0

5

Toro 56-4341-03

IDLER ARM ASM

$98.99

$

Usually ships in 3-6 days

0

6

Toro 51-3641

SLEEVE-PIVOT, IDLER

$21.99

$

In Stock, only 2 left!

0

7

Toro 99-8524

DECK ASM

$

$

Not available

7:1

Toro 43-8480

DECAL-DANGER

$7.49

$

In Stock, only 1 left!

0

7:2

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 10

0

7:3

Toro 68-8340

DECAL-TORQUE

$22.99

$

In Stock, only 2 left!

0

7:4

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

7:5

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

8

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 7

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

11

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

12

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, only 1 left!

0

13

Toro 323-28

SCREW-HH

$8.49

$

In Stock, Qty 19

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 51-3650-01

Spring-Extension
(Superseded to 51-3650)

$26.99

$

In Stock, only 3 left!

0

16

Toro 56-4360

ROD - SPRING

$

$

Not available

17

Toro 54-7781

HOUSING - SPINDLE ASM

$1172.99

$

Usually ships in 3-6 days

0

18

Toro 27-0870

SPINDLE ASM

$609.99

$

Usually ships in 3-6 days

0

19

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 3 left!

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 40-6230

SPRING

$43.99

$

Usually ships in 3-6 days

0

22

Toro 99-8526

DEFLECTOR ASM
(Superseded to 13-3879)

$

$

Not available

22:2

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 10

0

23

Toro 29-5590-01

BRACKET-PIVOT

$37.99

$

Usually ships in 3-6 days

0

24

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

25

Toro 56-2390

BLADE-SAIL, EXTRA HIGH
(Superseded to 56-2390-03)

$39.99

$

In Stock, Qty 7

0

26

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 11

0

27

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, only 3 left!

0

28

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

29

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 5

0

30

Toro 52-4780

ROD-BELT

$15.99

$

In Stock, only 2 left!

0

31

Toro 72-9360

CUP-SCALP, ANTI
(Superseded to 72-9361)

$45.99

$

In Stock, only 2 left!

0

32

Toro 93-9480-01

GUARD - DEFLECTOR

$

$

Not available

33

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

35

Toro 98-3269

DECAL

$45.99

$

Usually ships in 3-6 days

0

Toro 3256-2

WASHER-FLAT

Note: Not illustrated

$0.99

$

In Stock, Qty 17

0

Toro 3256-24

WASHER-FLAT

Note: Not illustrated

$0.99

$

In Stock, Qty 20+

0
