30138 - Toro 92cm Side-Discharge Mower Deck (SN: 240000001 - 240999999) (2004)

92cm Side-Discharge Mower Deck

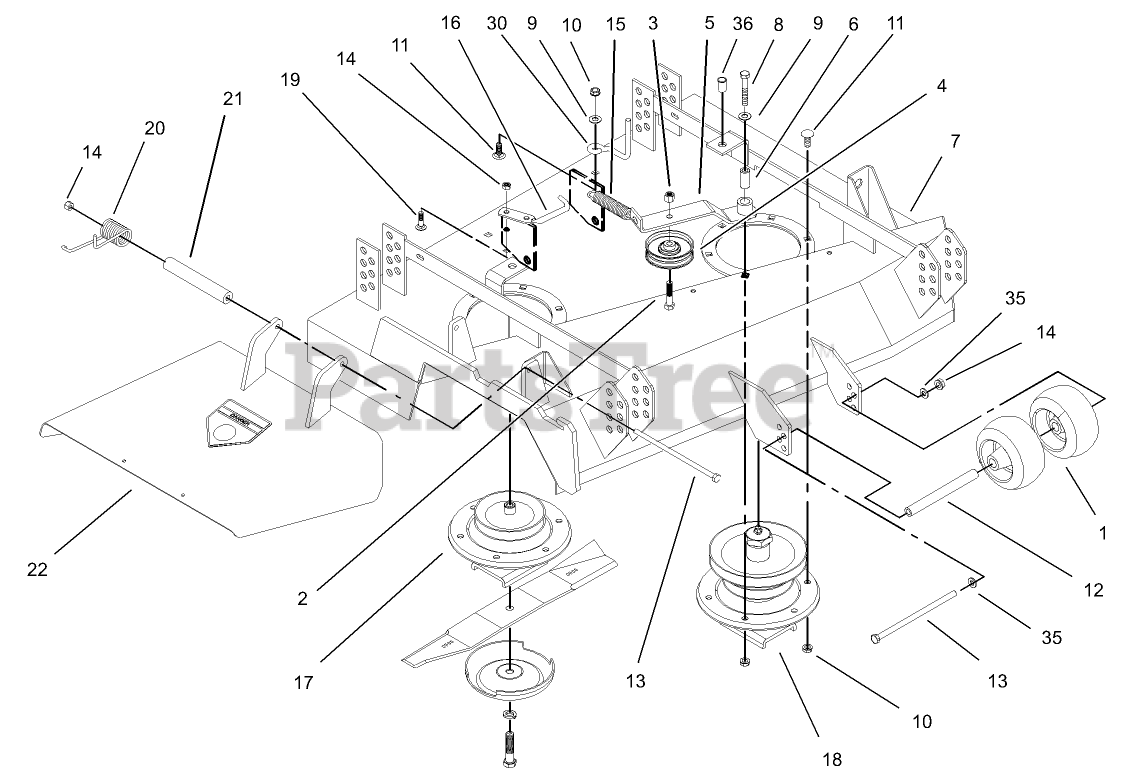

30138 - Toro 92cm Side-Discharge Mower Deck (SN: 240000001 - 240999999) (2004) > Parts Diagrams (5) > DECK AND PULLEYS ASSEMBLY

  • Title
68-2730

1

WHEEL-GAGE

Part# 68-2730 (Superseded to 1-603299)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $17.88

3211-5

2

SCREW-HH

Part# 3211-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.48

3296-5

3

NUT-HEX

Part# 3296-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.62

51-3660

4

PULLEY-IDLER

Part# 51-3660

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $27.94

56-4341-03

5

IDLER ARM ASM

Part# 56-4341-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $54.29

51-3641

6

SLEEVE-PIVOT, IDLER

Part# 51-3641

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $13.89

106-0742-01

7

Deck ASM

Part# 106-0742-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2064.03

323-12

8

SCREW-HH

Part# 323-12

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.92

3256-24

9

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.50

32128-21

10

NUT-HF

Part# 32128-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.60

3231-22

11

SCREW-CARR

Part# 3231-22

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.50

98-5967

12

SPACER-WHEEL

Part# 98-5967

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.17

322-50

13

SCREW-HH

Part# 322-50

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.46

3296-29

14

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81

51-3650

15

SPRING-EXTENSION

Part# 51-3650

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.17

56-4360

16

ROD - SPRING

Part# 56-4360

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $46.60

27-0870

17

SPINDLE ASM

Part# 27-0870

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $423.37

54-7781

18

HOUSING - SPINDLE ASM

Part# 54-7781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $620.59

3230-22

19

SCREW-CARR

Part# 3230-22

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81

104-8554

20

SPRING-TORSION

Part# 104-8554

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.95

105-4622

21

SPACER

Part# 105-4622

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.82

104-1188-01

22

X-REF 105-4623

Part# 104-1188-01 (Superseded to 105-4623)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $211.40

52-4780

30

ROD-BELT

Part# 52-4780

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.58

3256-23

35

WASHER-PLAIN

Part# 3256-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

32148-10

36

INSERT-NUT

Part# 32148-10

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.31
