30139 - Toro 37" Recycler Mower Deck (SN: 099000001 - 099999999) (1999)

37" Recycler Mower

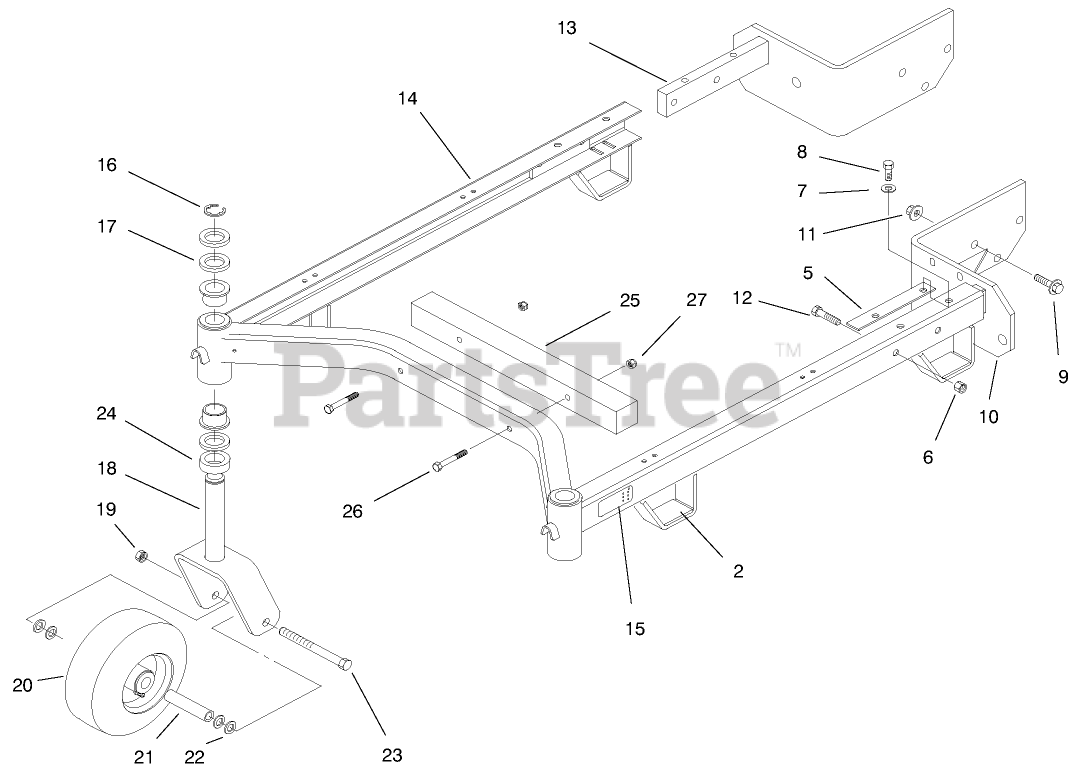

30139 - Toro 37" Recycler Mower Deck (SN: 099000001 - 099999999) (1999) > Parts Diagrams (3) > CARRIER FRAME ASSEMBLY

  • Title
74-0340

2

CUSHION-RUBBER

Part# 74-0340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.57

62-6980

5

SHIM-CARRIER

Part# 62-6980

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.96

32152-2

6

NUT-LOCK, CONE

Part# 32152-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.32

3256-24

7

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.49

3235-21

8

SCREW W/PATCH

Part# 3235-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.41

3234-6

9

SCREW-HHF

Part# 3234-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.26

86-7100

10

Bracket-LH

Part# 86-7100 (Superseded to 92-8923)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $311.00

32128-23

11

NUT-HF

Part# 32128-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.41

323-9

12

SCREW-HH

Part# 323-9

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.88

86-7110

13

Bracket RH

Part# 86-7110 (Superseded to 92-8924-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $311.00

94-4166

14

WA - SUSPENSION

Part# 94-4166

OEM Warranty Repair Part for Toro

Not available

93-7819

15

DECAL-HOC

Part# 93-7819

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.55

32151-91

16

RING-RETAINING

Part# 32151-91

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

3-6781

17

WASHER-THRUST

Part# 3-6781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.55

98-2857

18

Castor Fork

Part# 98-2857 (Superseded to 98-2857-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $165.60

32153-5

19

NUT-HEX

Part# 32153-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.44

98-2859

20

CASTOR WHEEL ASM

Part# 98-2859

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $87.48

62-5580

20:1

BEARING-OUTSIDE

Part# 62-5580

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.82

62-5570

20:2

BEARING-ROLLER

Part# 62-5570

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.05

232-27

20:3

STEM-VALVE

Part# 232-27 (Superseded to 5108)

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.68

302-11

20:4

FITTING-LUBE, 45 DEG

Part# 302-11

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.96

68-8980

21

SPANNER-TIRE

Part# 68-8980

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.75

3256-6

22

WASHER-FLAT

Part# 3256-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.48

325-19

23

SCREW-HH

Part# 325-19

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.37

93-1167

24

SPACER-CASTOR

Part# 93-1167

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.38

80-3340

25

Weight

Part# 80-3340 (Superseded to 106-0820)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $203.68

322-12

26

SCREW-HH

Part# 322-12

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.68

3296-29

27

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.78
