30139 - Toro 37" Recycler Mower Deck (SN: 099000001 - 099999999) (1999) PULLEY ASSEMBLY Parts Diagram

37" Recycler Mower Deck

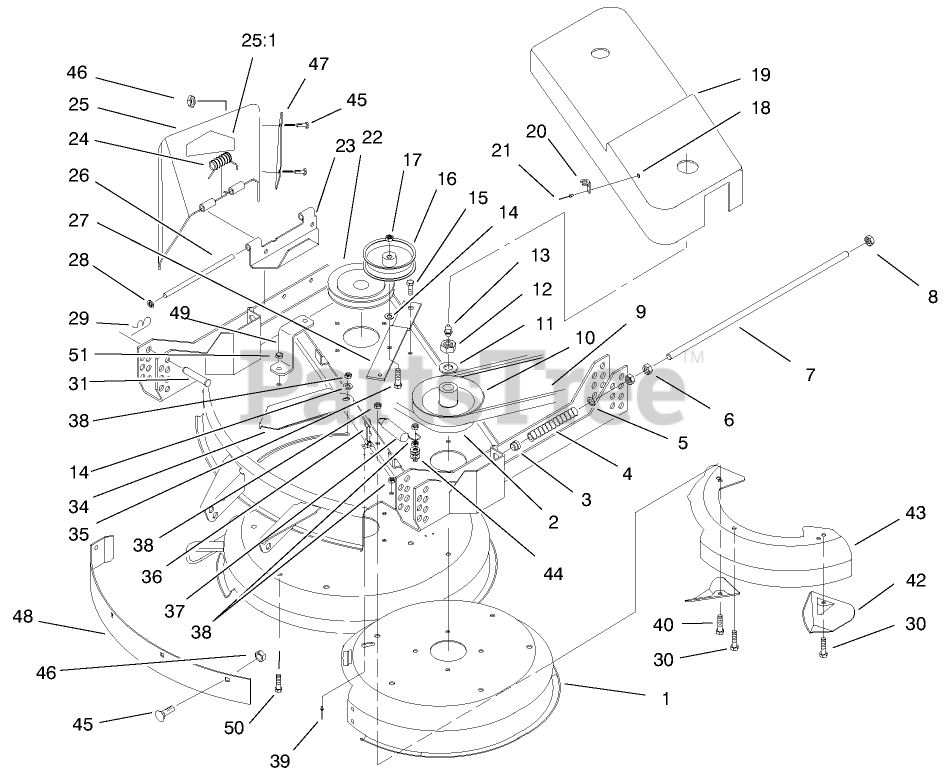

PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 92-3140

Deck

$

$

Currently unavailable

2

Toro 84-4410

V-BELT, DECK

$37.99

$

Usually ships in 3-6 days

0

3

Toro 256-156

BUSHING-FLANGE

$14.99

$

Usually ships in 3-6 days

0

4

Toro 74-0290

SPRING

$28.99

$

Usually ships in 3-6 days

0

5

Toro 41-8440

WASHER

$1.99

$

In Stock, only 4 left!

0

6

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

7

Toro 74-0310

SHAFT-ADJUSTING

$68.99

$

In Stock, only 2 left!

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 84-4390

V-BELT, DECK DRIVE

$52.99

$

In Stock, only 2 left!

0

10

Toro 84-4360

PULLEY-CENTER

$178.99

$

Usually ships in 3-6 days

0

11

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

12

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

13

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 17

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 19-1471

SCREW-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

16

Toro 36-3220

PULLEY-IDLER

$36.99

$

In Stock, only 2 left!

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 3269-10

WASHER-BACK

$0.99

$

In Stock, only 4 left!

0

19

Toro 84-4350

COVER-PULLEY

$

$

Not available

20

Toro 117343

KEEPER-LATCH

$5.49

$

In Stock, only 2 left!

0

21

Toro 3290-415

RIVET

$0.99

$

Usually ships in 3-6 days

0

22

Toro 84-4440

PULLEY-OUTSIDE

$109.99

$

Usually ships in 3-6 days

0

23

Toro 82-7530

Hinge-Deflector
(Superseded to 82-7530-01)

$

$

Not available

24

Toro 40-6230

SPRING

$42.99

$

Usually ships in 3-6 days

0

25

Toro 99-8511

DEFLECTOR

$

$

Not available

25:1

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0

26

Toro 82-7540

PIN-HINGE

$

$

Not available

27

Toro 84-4330

Lever-Idler
(Superseded to 84-4330-03)

$40.99

$

Usually ships in 3-6 days

0

28

Toro 32151-56

RING-RETAINING, EXTERNAL

$6.99

$

In Stock, only 4 left!

0

29

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

30

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 283-55

PIN-CLEVIS

$12.99

$

In Stock, only 3 left!

0

34

Toro 84-4420

Cover-Slot
(Superseded to 84-4420-01)

$

$

Not available

35

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 117344

HANDLE ASM

$38.99

$

In Stock, only 2 left!

0

37

Toro 54-1160

SPRING-EXTENSION, DECK

$59.99

$

In Stock, only 2 left!

0

38

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

39

Toro 3269-13

RIVET-POP

$0.99

$

In Stock, only 2 left!

0

40

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

42

Toro 84-5761

Plate-Kicker

$

$

Currently unavailable

43

Toro 92-2937

Insert-Deck
(Superseded to 92-2937-01)

$

$

Not available

44

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

45

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

46

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

47

Toro 93-9481

Baffle-Deflector
(Superseded to 93-9481-01)

$

$

Not available

48

Toro 93-9483

Baffle-Front
(Superseded to 93-9483-01)

$

$

Not available

49

Toro 93-9482

BRACKET-DECK, BELT GUARD

$

$

Not available

50

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

51

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0
