30139 - Toro 37" Recycler Mower Deck (SN: 200000001 - 200999999) (2000) CARRIER FRAME ASSEMBLY Parts Diagram

37" Recycler Mower Deck

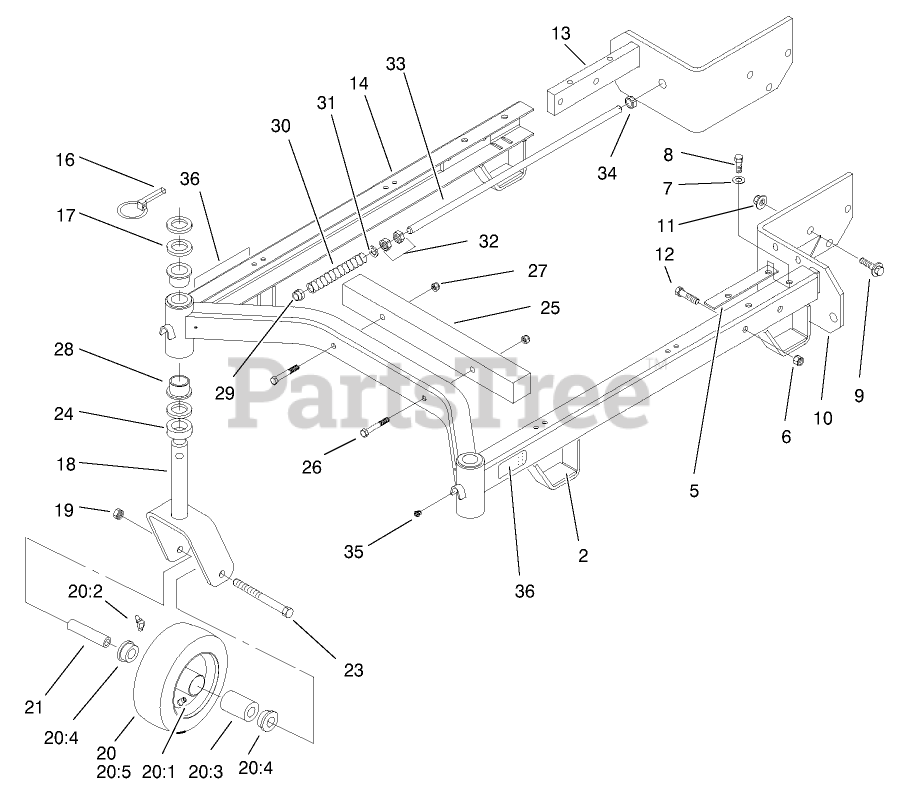

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title

2

Toro 74-0340

CUSHION-RUBBER

$5.49

$

Usually ships in 3-6 days

0

5

Toro 62-6980

SHIM-CARRIER

$

$

Not available

6

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, only 3 left!

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3235-21

SCREW W/PATCH

$

$

Not available

9

Toro 3234-6

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

10

Toro 86-7100-01

LH Angle Bracket
(Superseded to 92-8923)

$521.99

$

Usually ships in 3-6 days

0

11

Toro 32128-23

NUT-HF

$2.49

$

In Stock, Qty 11

0

12

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 86-7110-01

RH Angle Bracket
(Superseded to 92-8924-01)

$

$

Not available

14

Toro 17-0549-01

Carrier Frame
(Superseded to 94-4166)

$

$

Not available

16

Toro E809020

Pin
(Superseded to 1-809020)

$12.99

$

In Stock, only 2 left!

0

17

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

18

Toro 100-6455-01

CASTOR FORK ASM

$

$

Not available

19

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 9

0

20

Toro 100-6451

CASTER WHEEL ASM

$166.99

$

In Stock, only 2 left!

0

20:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$7.99

$

In Stock, Qty 6

0

20:2

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, Qty 5

0

20:3

Toro 83-4740

BEARING

$14.99

$

In Stock, Qty 15

0

20:4

Toro 62-5580

BEARING-OUTSIDE

$7.99

$

In Stock, Qty 20+

0

20:5

Toro 100-6452

TIRE-TUBELESS

$90.99

$

Usually ships in 3-6 days

0

21

Toro 100-6453

BUSHING-SPANNER

$27.99

$

In Stock, only 2 left!

0

23

Toro 325-19

SCREW-HH

$8.99

$

In Stock, Qty 20+

0

24

Toro 93-1166

SPACER-CASTOR

$41.99

$

Usually ships in 3-6 days

0

25

Toro 80-3340-01

Front Weight
(Superseded to 106-0820)

$

$

Not available

26

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 94-1291

BUSHING

$12.99

$

In Stock, Qty 15

0

29

Toro 256-156

BUSHING-FLANGE

$14.99

$

In Stock, only 2 left!

0

30

Toro 74-0290

SPRING

$29.99

$

Usually ships in 3-6 days

0

31

Toro 41-8440

WASHER

$1.99

$

Usually ships in 3-6 days

0

32

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 10

0

33

Toro 74-0310

SHAFT-ADJUSTING

$72.99

$

In Stock, only 2 left!

0

34

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

35

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

36

Toro 93-7819

DECAL-HOC

$11.99

$

Usually ships in 3-6 days

0
