30144 - Toro 44" Side-Discharge Mower Deck (SN: 089000001 - 089000747) (1998)

44" Side-Discharge Mower Deck

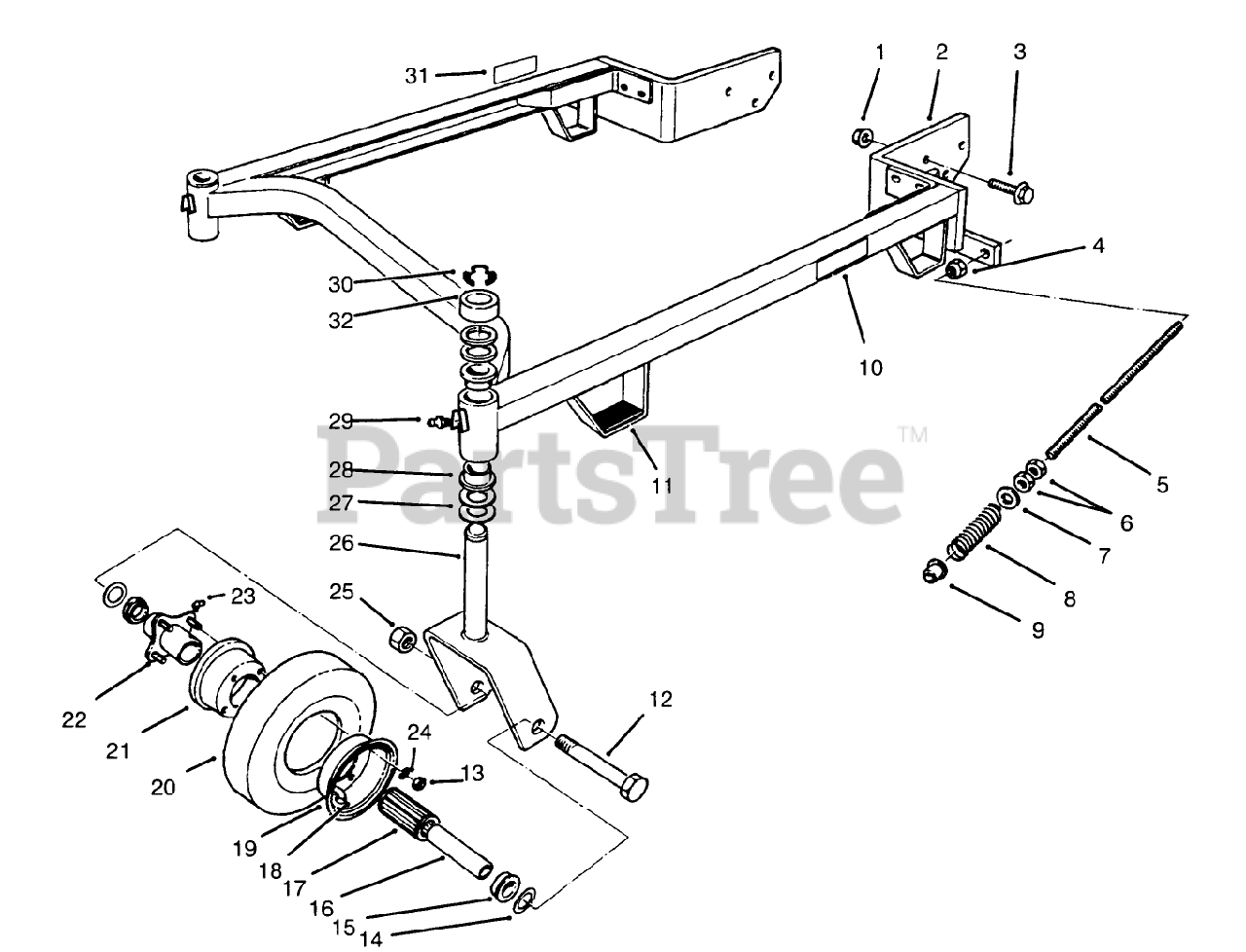

30144 - Toro 44" Side-Discharge Mower Deck (SN: 089000001 - 089000747) (1998) > Parts Diagrams (4) > CARRIER FRAME ASSEMBLY

  • Title
32128-23

1

NUT-HF

Part# 32128-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.45

94-4175

2

Frame-Suspension (Incl. Ref. #28)

Part# 94-4175

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1332.90

3234-6

3

SCREW-HHF

Part# 3234-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.40

3296-45

4

NUT-LOCK, NI

Part# 3296-45

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.84

74-0310

5

SHAFT-ADJUSTING

Part# 74-0310

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $38.14

3218-5

6

NUT-JAM

Part# 3218-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.79

41-8440

7

WASHER

Part# 41-8440

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.15

74-0290

8

SPRING

Part# 74-0290

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.98

256-156

9

BUSHING-FLANGE

Part# 256-156

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.25

68-8360

10

DECAL-HOC, LH

Part# 68-8360

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.32

85-7450

DECAL-HOC, LH

Part# 85-7450

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.31

74-0340

11

CUSHION-RUBBER

Part# 74-0340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.63

325-19

12

SCREW-HH

Part# 325-19

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.90

3219-2

13

NUT-HEX

Part# 3219-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.73

3256-6

14

WASHER-FLAT

Part# 3256-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.49

62-5580

15

BEARING-OUTSIDE

Part# 62-5580

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.23

68-8980

16

SPANNER-TIRE

Part# 68-8980

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.98

62-5570

17

BEARING-ROLLER

Part# 62-5570

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.35

68-8950

18

TUBE-INNER (W/VALVE)

Part# 68-8950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $24.59

68-8920

19

FEMALE WHEEL HALF

Part# 68-8920

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.95

68-8960

20

TIRE

Part# 68-8960

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $42.32

68-8930

21

MALE WHEEL HALF

Part# 68-8930

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.95

68-8940

22

HUB-CENTER

Part# 68-8940

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.80

302-61

23

FITTING-GREASE

Part# 302-61

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.82

3256-4

24

WASHER-FLAT

Part# 3256-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.20

32153-5

25

NUT-HEX

Part# 32153-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.48

74-0251

26

Fork

Part# 74-0251 (Superseded to 74-0251-01)

OEM Warranty Repair Part for Toro

Not available

3-6781

27

WASHER-THRUST

Part# 3-6781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.90

94-1291

28

BUSHING

Part# 94-1291

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.49

302-5

29

FITTING-GREASE

Part# 302-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.43

32151-91

30

RING-RETAINING

Part# 32151-91

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

74-0940

31

DECAL-HOC, RH

Part# 74-0940

OEM Warranty Repair Part for Toro

Not available

85-7460

DECAL-HOC, RH

Part# 85-7460

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.31

93-1167

32

SPACER-CASTOR

Part# 93-1167

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.19

68-8970

TIRE AND BEARING ASM

Part# 68-8970

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $88.31
