3014524BVE (7800786) - Snapper 30" Rear-Engine Riding Mower, 14.5hp Wheels, Front & Rear Group Parts Diagram

30" Rear-Engine Riding Mower, 14.5hp

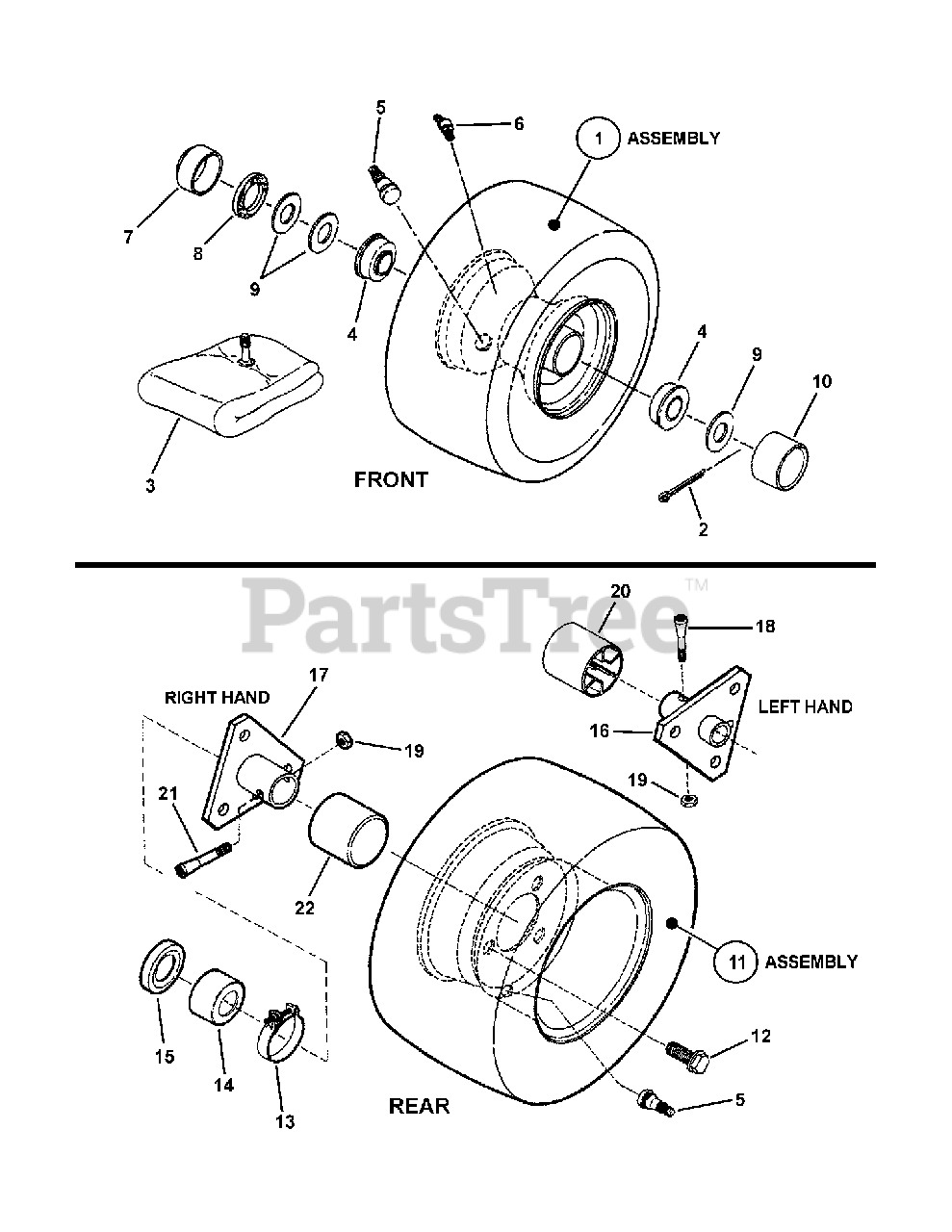

Wheels, Front & Rear Group Parts Diagram

  • Title

1

Snapper 7058943

ASSEMBLY, Front Tire & Rim (11.0") (Complete)
(Superseded to 7058943YP)

$105.99

$

In Stock, Qty 14

0

2

Snapper 7091516

COTTER PIN, 5/32 x 1"
(Superseded to 703984)

$4.49

$

In Stock, Qty 12

0

3

Snapper 7010821

INNER TUBE, (For 4.10/3.50 x 4 Tire)
(Superseded to 7010821YP)

$19.99

$

In Stock, only 1 left!

0

4

Snapper 7011807

BALL BEARING, Flange (3/4" I.D.)
(Superseded to 7011807YP)

$7.99

$

In Stock, Qty 13

0

5

Snapper 7012234

VALVE STEM, Snap In
(Superseded to 7012234SM)

$6.99

$

In Stock, Qty 20+

0

6

Snapper 7014669

LUBE Fitting
(Superseded to 7014669YP)

$4.49

$

In Stock, Qty 14

0

7

Snapper 7031038

CAP, Dust
(Superseded to 7031038YP)

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7011032

SEAL, Felt
(Superseded to 7011032YP)

$4.99

$

In Stock, Qty 20+

0

9

Snapper 7010935

WASHER, .77 x 1.13 x .06 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7011022

HUB CAP
(Superseded to 7011022YP)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7058951

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058951YP)

$190.99

$

In Stock, only 2 left!

0

12

Snapper 7091502

BOLT, 1/2-20 x 3/4" Lug, GR 5
(Superseded to 703431)

$4.99

$

In Stock, Qty 20+

0

13

Snapper 7012332

CLAMP, Right Hand (for 2" Hose)
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 12

0

14

Snapper 7031732

CAP, Seal RH 1.0" ID x 1.67" OD (8 & 10 HP)
(Superseded to 7031732YP)

$6.49

$

In Stock, Qty 20+

0

15

Snapper 7011817

SEAL, 1.22" ID x 1.875" OD
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

16

Snapper 7040434

HUB, Rear Wheel L. H. (Weldment)
(Superseded to 7040434YP)

$

$

Not available

17

Snapper 7040433

HUB, Rear Wheel R. H. (Weldment)
(Superseded to 7040433YP)

$38.99

$

In Stock, only 3 left!

0

18

Snapper 7011035

AXLE BOLT, 5/16-24 x 1-5/8" Tapered (Left Hand)
(Superseded to 7011035YP)

$5.49

$

Usually ships in 2-12 days

0

19

Snapper 7092062

NUT, Wheel Bolt 5/16-24 Hex Center Lock
(Superseded to 703459)

$3.49

$

In Stock, Qty 18

0

20

Snapper 7023522

HUBCAP, L. H. (Long Axle)
(Superseded to 7023522YP)

$6.49

$

In Stock, Qty 9

0

21

Snapper 7011013

WHEEL BOLT, 5/16-24 x 2" Tapered (Right Hand)
(Superseded to 7011013YP)

$6.49

$

In Stock, only 4 left!

0

22

Snapper 7023895

HUBCAP
(Superseded to 7023895YP)

$6.99

$

In Stock, Qty 20+

0
