30147 - Toro 112cm Side-Discharge Mower Deck (SN: 200000001 - 200999999) (2000)

112cm Side-Discharge Mower Deck

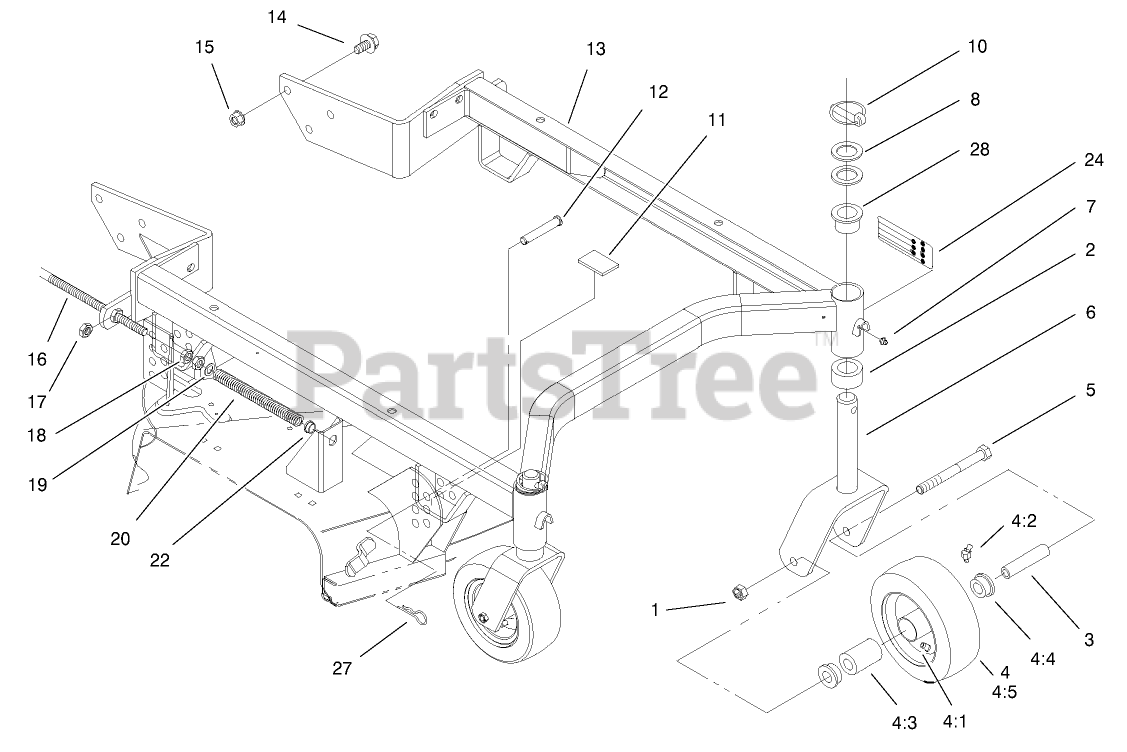

30147 - Toro 112cm Side-Discharge Mower Deck (SN: 200000001 - 200999999) (2000) > Parts Diagrams (6) > CARRIER FRAME ASSEMBLY

  • Title
32153-5

1

NUT-HEX

Part# 32153-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.52

93-1166

2

SPACER-CASTOR

Part# 93-1166

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.93

100-6453

3

BUSHING-SPANNER

Part# 100-6453

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $18.47

100-6451

4

CASTER WHEEL ASM

Part# 100-6451

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $105.47

232-27

4:1

STEM-VALVE

Part# 232-27 (Superseded to 5108)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.88

302-11

4:2

FITTING-LUBE, 45 DEG

Part# 302-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.03

83-4740

4:3

BEARING

Part# 83-4740

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.14

62-5580

4:4

BEARING-OUTSIDE

Part# 62-5580

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.12

100-6452

4:5

TIRE-TUBELESS

Part# 100-6452

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $47.18

325-19

5

SCREW-HH

Part# 325-19

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.59

100-6455-01

6

CASTOR FORK ASM

Part# 100-6455-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $167.98

302-5

7

FITTING-GREASE

Part# 302-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.50

3-6781

8

WASHER-THRUST

Part# 3-6781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.77

3290-384

10

PIN-LYNCH

Part# 3290-384

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.37

74-0340

11

CUSHION-RUBBER

Part# 74-0340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.76

283-55

12

PIN-CLEVIS

Part# 283-55

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.67

17-0279-01

13

44IN CARRIER FRAME ASM

Part# 17-0279-01 (Superseded to 94-4175)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1376.23

3234-6

14

SCREW-HHF

Part# 3234-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.65

32128-23

15

NUT-HF

Part# 32128-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.50

74-0310

16

SHAFT-ADJUSTING

Part# 74-0310

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $39.38

3296-45

17

NUT-LOCK, NI

Part# 3296-45

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.93

3218-5

18

NUT-JAM

Part# 3218-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.82

41-8440

19

WASHER

Part# 41-8440

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.13

74-0290

20

SPRING

Part# 74-0290

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $16.49

256-156

22

BUSHING-FLANGE

Part# 256-156

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.59

93-7819

24

DECAL-HOC

Part# 93-7819

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.69

3290-355

27

PIN-HAIR

Part# 3290-355

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.33

94-1291

28

BUSHING

Part# 94-1291

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.81
