30147 - Toro 112cm Side-Discharge Mower Deck (SN: 200000001 - 200999999) (2000)

112cm Side-Discharge Mower Deck

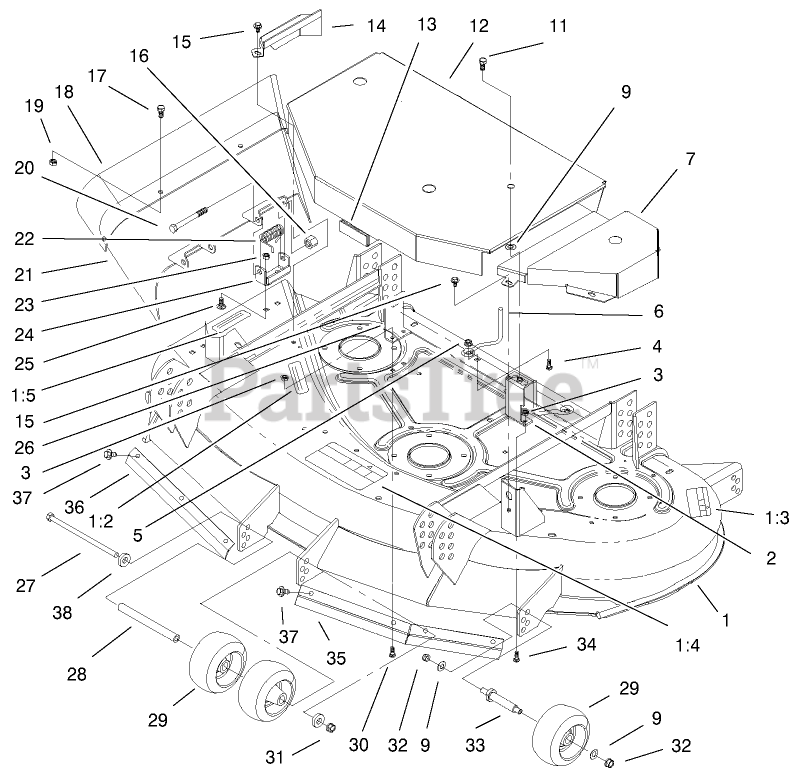

30147 - Toro 112cm Side-Discharge Mower Deck (SN: 200000001 - 200999999) (2000) > Parts Diagrams (6) > DECK AND COVER ASSEMBLY

  • Title
99-6449

1

RECYCLER DECK ASM

Part# 99-6449

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2455.44

93-7273

1:2

DECAL-DANGER

Part# 93-7273 (Superseded to 106-8120)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.69

93-7818

1:3

DECAL-TORQUE, BLADE BOLT

Part# 93-7818

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.90

93-7824

1:4

DECAL-DANGER

Part# 93-7824

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.05

93-7828

1:5

DECAL-WARNING, DEFLECTOR

Part# 93-7828

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.74

54-3240-03

2

LH COVER BRACKET ASM

Part# 54-3240-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.78

3296-42

3

NUT-LOCK, NI

Part# 3296-42

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.36

3230-2

4

BOLT-CARR

Part# 3230-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.08

32128-13

5

NUT-HF

Part# 32128-13

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.38

52-4780

6

ROD-BELT

Part# 52-4780

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.98

54-2220-01

7

COVER-DECK, LH

Part# 54-2220-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $99.02

3256-24

9

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.51

323-4

11

SCREW-HH

Part# 323-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.05

54-3190-01

12

COVER-CENTER

Part# 54-3190-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $214.65

29-0641

13

TRIM-JIFFY

Part# 29-0641

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.81

54-2250-01

14

COVER-DECK, RH

Part# 54-2250-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.05

46-8560

15

SCREW-HHFTF

Part# 46-8560

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.52

3296-5

16

NUT-HEX

Part# 3296-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.71

322-3

17

SCREW-HH

Part# 322-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.69

93-9484-01

18

GUARD - DEFLECTOR

Part# 93-9484-01

OEM Warranty Repair Part for Toro

Not available

3296-47

19

NUT-LOCK, NI

Part# 3296-47

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.29

3211-15

20

SCREW-HH

Part# 3211-15

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.26

57-6970-01

21

Deflector

Part# 57-6970-01 (Superseded to 13-3899)

OEM Warranty Repair Part for Toro

Not available

40-6230

22

SPRING

Part# 40-6230

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $27.13

32152-1

23

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.40

29-5590-01

24

BRACKET-PIVOT

Part# 29-5590-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.04

3230-18

25

SCREW-CARR

Part# 3230-18

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.10

54-3230-03

26

RH COVER BRACKET ASM

Part# 54-3230-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.78

322-50

27

SCREW-HH

Part# 322-50

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.59

98-5967

28

SPACER-WHEEL

Part# 98-5967

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.78

68-2730

29

WHEEL-GAGE

Part# 68-2730 (Superseded to 1-603299)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $18.46

3229-1

30

BOLT-CARR

Part# 3229-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.71

3296-29

31

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.87

3296-39

32

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.11

99-2842

33

SPACER

Part# 99-2842 (Superseded to 126-2928)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $19.61

3229-3

34

SCREW-CARR

Part# 3229-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.46

99-4578-01

35

GUARD-LH, INTL

Part# 99-4578-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $82.61

99-4579-01

36

GUARD-RH, INTL

Part# 99-4579-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $72.47

32144-14

37

SCREW-HWHTF

Part# 32144-14

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.76

3256-23

38

WASHER-PLAIN

Part# 3256-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.72
