30148 - Toro 48" Recycler Mower Deck (SN: 010000001 - 019999999) (1991) CARRIER FRAME ASSEMBLY Parts Diagram

48" Recycler Mower Deck

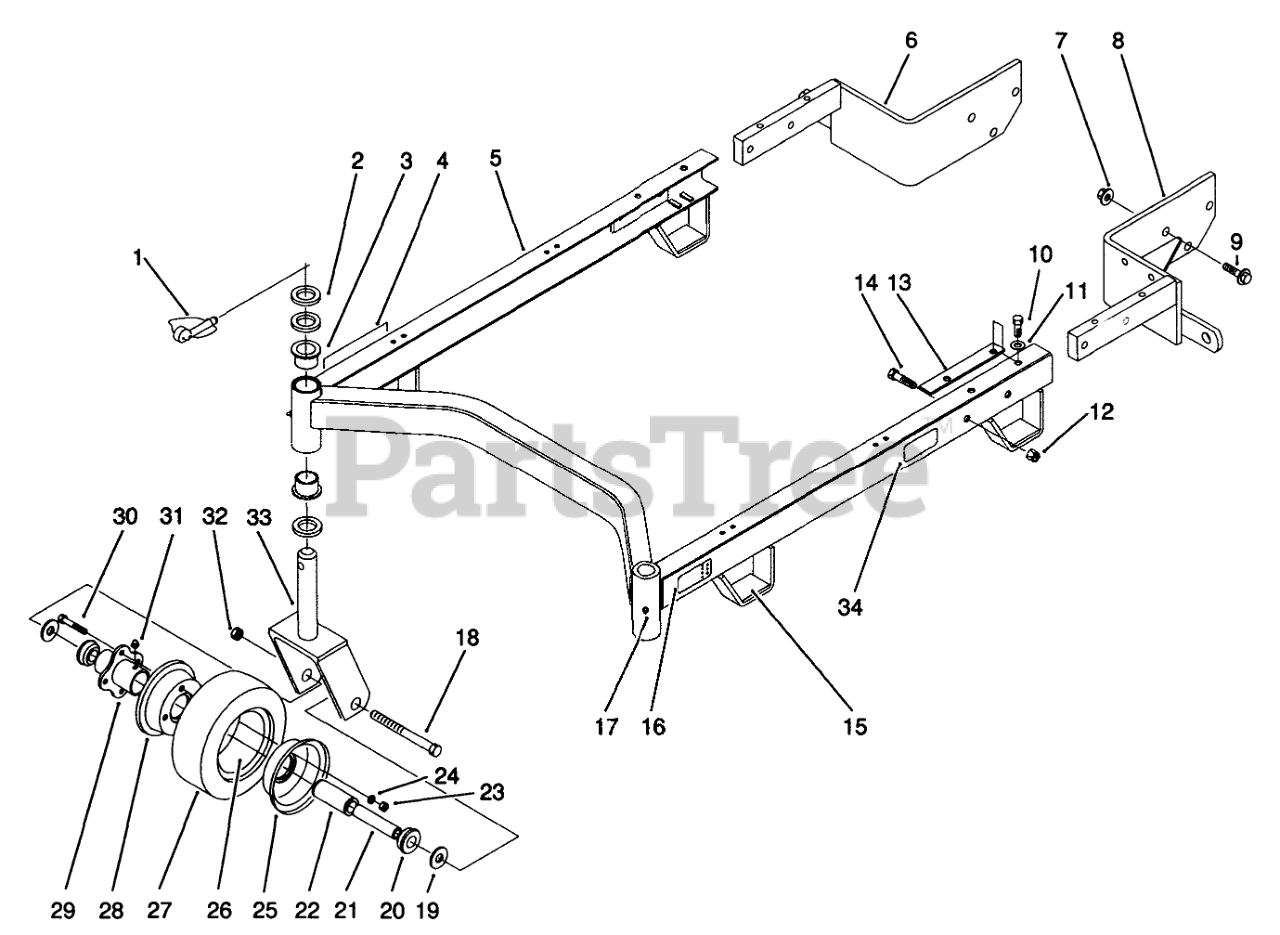

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-384

PIN-LYNCH

$21.99

$

Usually ships in 3-6 days

0

2

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

3

Toro 28-9290

Bushing
(Superseded to 94-1291)

$10.99

$

In Stock, Qty 16

0

4

Toro 68-8360

DECAL-HOC, LH

$23.99

$

Usually ships in 3-6 days

0

5

Toro 55-4631

Suspension Frame W.A.
(Superseded to 94-4166)

$

$

Not available

6

Toro 82-2430

Angle Bracket Ass-y R.H.
(Superseded to 92-8924-01)

$

$

Not available

7

Toro 32128-23

NUT-HF

$1.99

$

In Stock, Qty 20+

0

8

Toro 82-2420

Angle Bracket Ass-y L.H.
(Superseded to 92-8923)

$479.99

$

Usually ships in 3-6 days

0

9

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

10

Toro 3235-21

SCREW W/PATCH

$

$

Not available

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

13

Toro 62-6980

SHIM-CARRIER

$15.99

$

Usually ships in 3-6 days

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 74-0340

CUSHION-RUBBER

$4.99

$

In Stock, only 4 left!

0

16

Toro 74-0940

DECAL-HOC, RH

$

$

Not available

17

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

18

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

19

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 62-5580

BEARING-OUTSIDE

$6.99

$

In Stock, Qty 20+

0

21

Toro 68-8980

SPANNER-TIRE

$8.99

$

In Stock, Qty 16

0

22

Toro 62-5570

BEARING-ROLLER

$20.99

$

Usually ships in 3-6 days

0

23

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

24

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 68-8930

MALE WHEEL HALF

$21.99

$

In Stock, only 1 left!

0

26

Toro 68-8950

TUBE-INNER (W/VALVE)

$29.99

$

Usually ships in 3-6 days

0

27

Toro 68-8960

TIRE

$64.99

$

In Stock, only 1 left!

0

28

Toro 68-8920

FEMALE WHEEL HALF

$20.99

$

In Stock, only 1 left!

0

29

Toro 68-8940

HUB-CENTER

$30.99

$

In Stock, only 2 left!

0

30

Toro 54-8890

WHEEL BOLT

$0.99

$

Usually ships in 3-6 days

0

31

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 1 left!

0

32

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 18

0

33

Toro 68-8900

Castor Fork
(Superseded to 68-8900-01)

$113.99

$

Usually ships in 3-6 days

0

34

Toro 82-7480

DECAL - HOC

$

$

Not available
