30149 - Toro 44" Side-Discharge Mower Deck (SN: 220000001 - 220999999) (2002) DECK AND COVER ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck

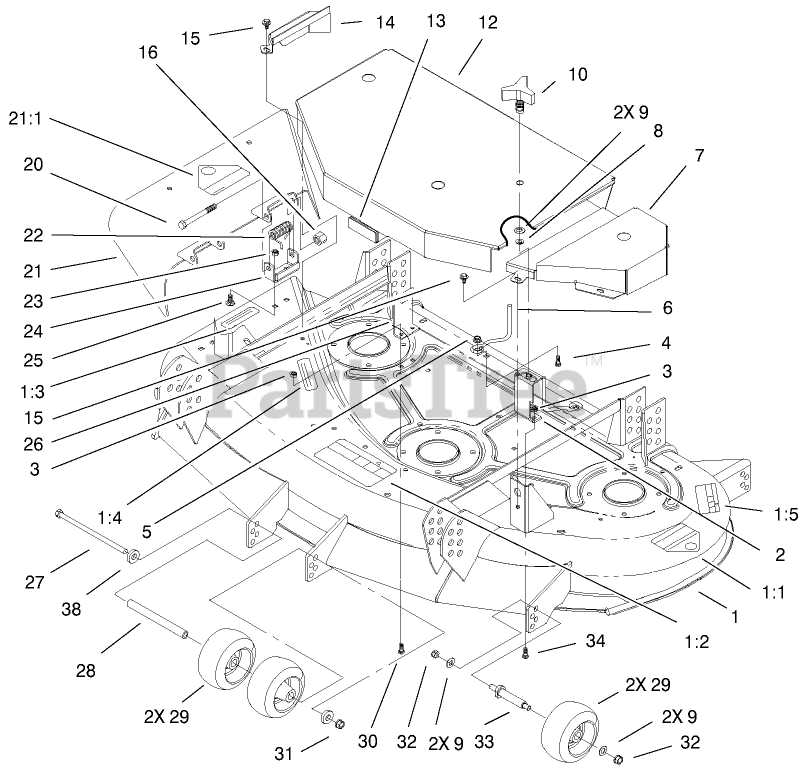

DECK AND COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 99-6448

DECK ASM

$

$

Not available

1:1

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

1:2

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

1:3

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

1:4

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

1:5

Toro 68-8340

DECAL-TORQUE

$19.99

$

In Stock, only 3 left!

0

2

Toro 54-3240-03

LH COVER BRACKET ASM

$

$

Not available

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

5

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

6

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, Qty 6

0

7

Toro 54-2220-01

COVER-DECK, LH

$142.99

$

Usually ships in 3-6 days

0

8

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 8

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 62-6520

KNOB

$7.99

$

In Stock, only 2 left!

0

12

Toro 54-3190-01

COVER-CENTER

$

$

Not available

13

Toro 29-0641

TRIM-JIFFY

$5.99

$

In Stock, only 3 left!

0

14

Toro 54-2250-01

COVER-DECK, RH

$

$

Not available

15

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

16

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

20

Toro 3211-15

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

21

Toro 100-8003

DEFLECTOR/DECAL ASM

$312.99

$

Usually ships in 3-6 days

0

21:1

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 16

0

22

Toro 40-6230

SPRING

$38.99

$

Usually ships in 3-6 days

0

23

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

24

Toro 29-5590-01

BRACKET-PIVOT

$34.99

$

Usually ships in 3-6 days

0

25

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 13

0

26

Toro 54-3230-03

RH COVER BRACKET ASM

$

$

Not available

27

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

28

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

29

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

30

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

33

Toro 99-2842

SPACER
(Superseded to 126-2928)

$26.99

$

In Stock, Qty 20+

0

34

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

38

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
