30150 - Toro 32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp (SN: 250000001 - 250999999) (2005) ENGINE AND FUEL SYSTEM ASSEMBLY Parts Diagram

32" ProLine Walk-Behind Mower, T-Bar, Gear Drive, 13hp

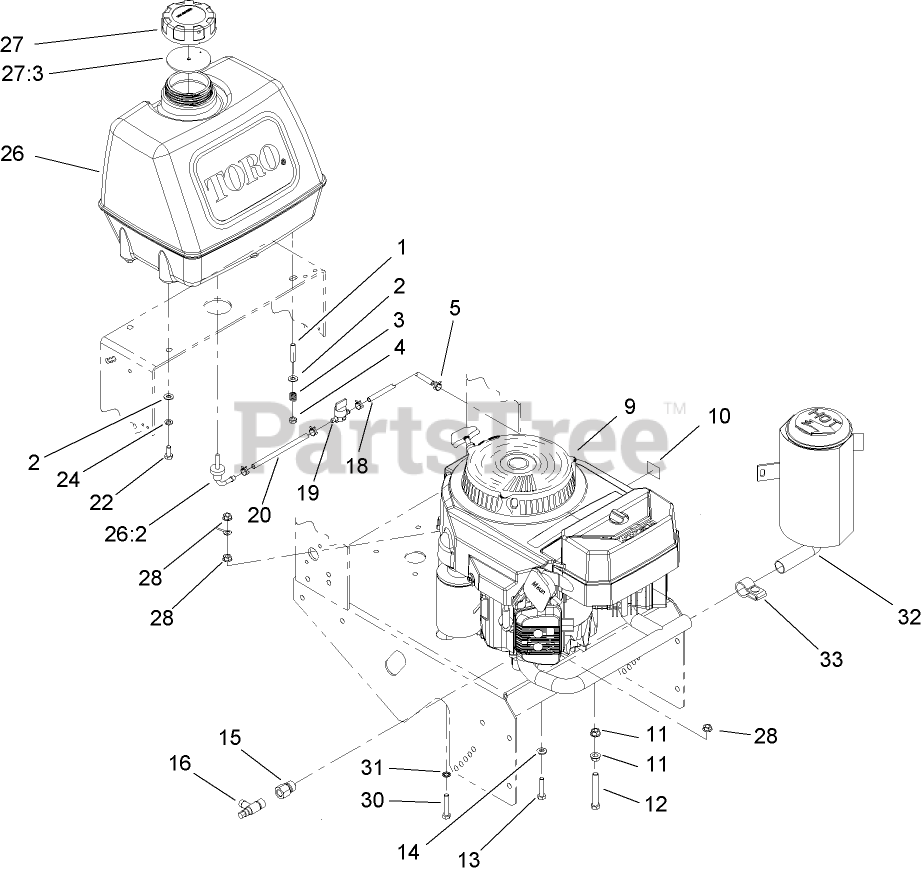

ENGINE AND FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 1-633023

STUD

$6.99

$

In Stock, only 2 left!

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 12

0

4

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

5

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

9

Engine-Kawasaki, FH381V-AS25

Note: Not serviced separately

$

$

Not available

10

Toro 106-0699

DECAL-WARNING

$

$

Not available

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

13

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

15

Toro 103-1966

Adapter

$19.99

$

In Stock, Qty 5

0

16

Toro 103-1965

Valve-Drain, Oil

$59.99

$

In Stock, only 1 left!

0

18

Toro 1-303022

HOSE-FUEL

$5.49

$

In Stock, only 2 left!

0

19

Toro 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

20

Toro 1-603955

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

26

Toro 106-0730

FUEL TANK ASM

$

$

Not available

26:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$38.99

$

In Stock, only 4 left!

0

27

Toro 88-3980

GAS CAP ASM

$35.99

$

In Stock, Qty 20+

0

27:3

Toro 88-4010

GASKET-CAP, GAS

$37.99

$

In Stock, Qty 7

0

28

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

31

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

32

Toro 100-6467

MUFFLER

$

$

Not available

33

Toro 103-5465

CLAMP-MUFFLER

$21.99

$

In Stock, only 1 left!

0

99

Toro 1-303287

TIE-CABLE

Note: Not illustrated

$1.49

$

Usually ships in 3-6 days

0

99

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

Note: Not illustrated

$0.99

$

In Stock, Qty 7

0
