30151 - Toro 52" Side-Discharge Mower Deck (SN: 099000001 - 099999999) (1999)

52" Side-Discharge Mower Deck

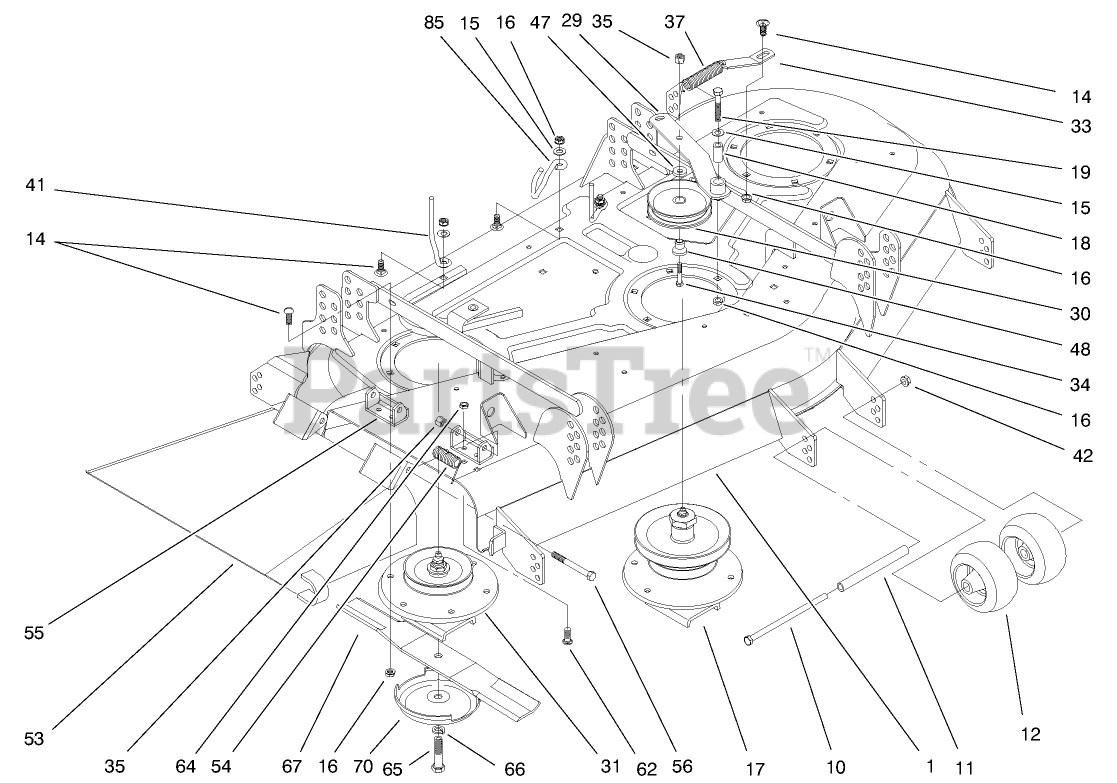

30151 - Toro 52" Side-Discharge Mower Deck (SN: 099000001 - 099999999) (1999) > Parts Diagrams (6) > DECK AND SPINDLE ASSEMBLY

  • Title
99-8500

1

52" DECK W/DECALS

Part# 99-8500

OEM Warranty Repair Part for Toro

Not available

323-28

10

SCREW-HH

Part# 323-28

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.76

98-5967

11

SPACER-WHEEL

Part# 98-5967

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.17

68-2730

12

WHEEL-GAGE

Part# 68-2730 (Superseded to 1-603299)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $17.88

3231-22

14

SCREW-CARR

Part# 3231-22

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.50

3256-24

15

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.50

32128-21

16

NUT-HF

Part# 32128-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.60

54-7781

17

HOUSING - SPINDLE ASM

Part# 54-7781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $620.59

51-3640

18

SLEEVE

Part# 51-3640

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.68

323-11

19

SCREW-HH

Part# 323-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

55-7640-03

29

IDLER ARM ASM

Part# 55-7640-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $74.56

65-5940

30

PULLEY-IDLER

Part# 65-5940

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $27.08

27-0870-03

31

Spindle Hsg ASM

Part# 27-0870-03 (Superseded to 27-0870)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $423.37

55-7650

33

PLATE-SPRING

Part# 55-7650

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $14.11

3211-8

34

SCREW-HH

Part# 3211-8

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.13

3296-5

35

NUT-HEX

Part# 3296-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.62

51-3650

37

SPRING-EXTENSION

Part# 51-3650

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.17

52-4780

41

ROD-BELT

Part# 52-4780

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.58

3296-39

42

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.05

7-0081

47

WASHER-FLAT

Part# 7-0081

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.92

65-5950

48

BUSHING-PULLEY

Part# 65-5950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.07

13-3899

53

DEFLECTOR

Part# 13-3899

OEM Warranty Repair Part for Toro

Not available

40-6230

54

SPRING

Part# 40-6230

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $26.28

29-5590-03

55

BRACKET-PIVOT

Part# 29-5590-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.75

3211-15

56

SCREW-HH

Part# 3211-15

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.06

3230-18

62

SCREW-CARR

Part# 3230-18

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

32152-1

64

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.35

44-2200

65

SCREW-BLADE

Part# 44-2200

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.24

3253-27

66

WASHER-LOCK

Part# 3253-27

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.87

27-0990

67

Blade

Part# 27-0990 (Superseded to 27-0990-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $14.50

72-9361

70

CUP-SCALP, ANTI

Part# 72-9361

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $29.96

55-7620

85

GUIDE-BELT

Part# 55-7620

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $46.53
