30151 - Toro 52" Side-Discharge Mower Deck (SN: 200000001 - 200999999) (2000)

52" Side-Discharge Mower

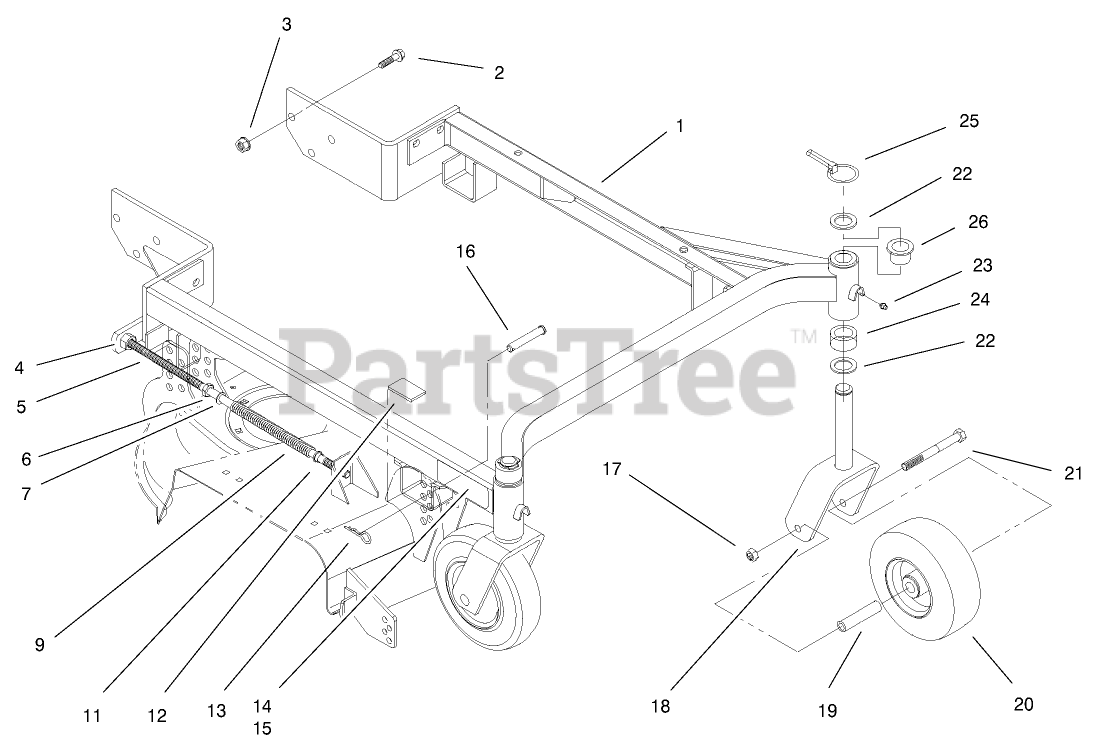

30151 - Toro 52" Side-Discharge Mower Deck (SN: 200000001 - 200999999) (2000) > Parts Diagrams (7) > CARRIER FRAME ASSEMBLY

  • Title
18-3159-01

1

52IN CARRIER FRAME ASM

Part# 18-3159-01 (Superseded to 99-2847)

OEM Warranty Repair Part for Toro

Not available

3234-6

2

SCREW-HHF

Part# 3234-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.26

32128-23

3

NUT-HF

Part# 32128-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.41

3296-45

4

NUT-LOCK, NI

Part# 3296-45

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.78

74-0310

5

SHAFT-ADJUSTING

Part# 74-0310

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $37.22

3218-5

6

NUT-JAM

Part# 3218-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

41-8440

7

WASHER

Part# 41-8440

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.07

74-0290

9

SPRING

Part# 74-0290

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.57

256-156

11

BUSHING-FLANGE

Part# 256-156

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.05

74-0350

12

CUSHION-RUBBER

Part# 74-0350

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.00

3290-355

13

PIN-HAIR

Part# 3290-355

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.57

85-7450

14

DECAL-HOC, LH

Part# 85-7450

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.83

85-7460

15

DECAL-HOC, RH

Part# 85-7460

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.83

283-55

16

PIN-CLEVIS

Part# 283-55

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.15

32153-5

17

NUT-HEX

Part# 32153-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.44

100-6455-01

18

CASTOR FORK ASM

Part# 100-6455-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $164.03

100-6453

19

BUSHING-SPANNER

Part# 100-6453

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $17.44

100-6451

20

CASTER WHEEL ASM

Part# 100-6451

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $103.00

325-19

21

SCREW-HH

Part# 325-19

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.37

3-6781

22

WASHER-THRUST

Part# 3-6781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.55

302-5

23

FITTING-GREASE

Part# 302-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.36

93-1166

24

SPACER-CASTOR

Part# 93-1166

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.61

E809020

25

Pin

Part# E809020 (Superseded to 1-809020)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.15

94-1291

26

BUSHING

Part# 94-1291

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.93
