30151 - Toro 52" Side-Discharge Mower Deck (SN: 200000001 - 200999999) (2000)

52" Side-Discharge Mower

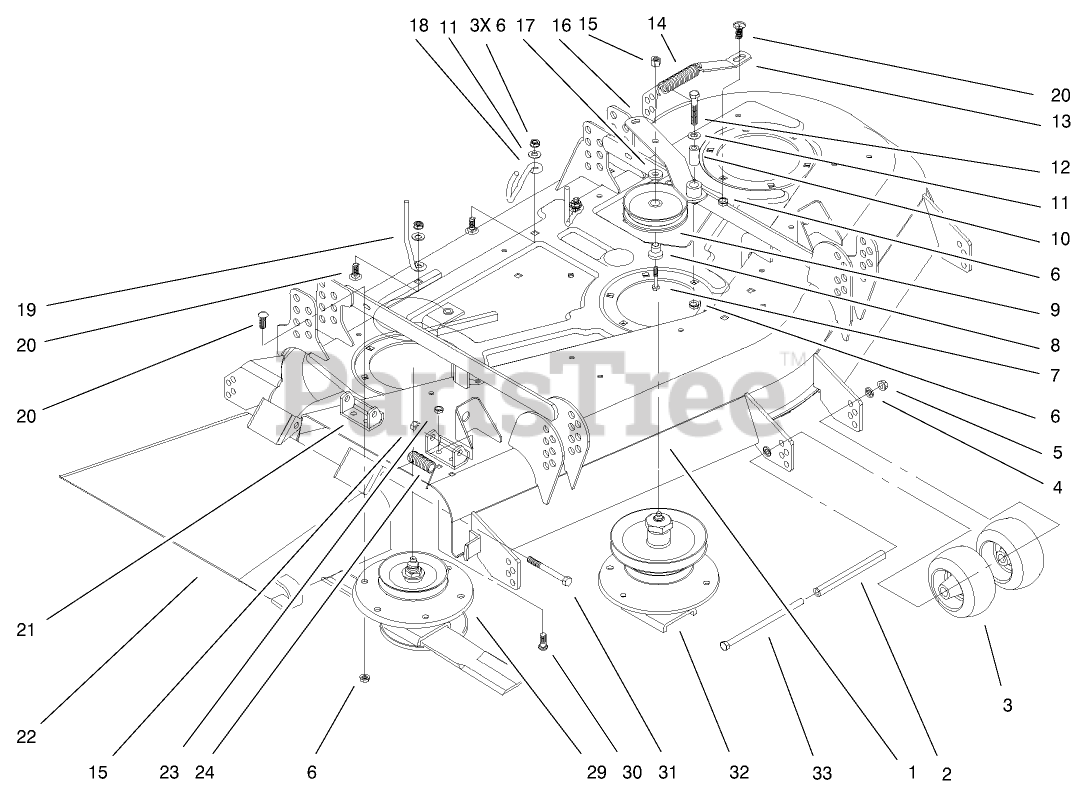

30151 - Toro 52" Side-Discharge Mower Deck (SN: 200000001 - 200999999) (2000) > Parts Diagrams (7) > DECK & SPINDLE ASSEMBLIES

  • Title
99-8500

1

52" DECK W/DECALS

Part# 99-8500

OEM Warranty Repair Part for Toro

Not available

98-5967

2

SPACER-WHEEL

Part# 98-5967

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.19

68-2730

3

WHEEL-GAGE

Part# 68-2730 (Superseded to 1-603299)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $17.88

3256-23

4

WASHER-PLAIN

Part# 3256-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.62

3296-29

5

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.78

32128-21

6

NUT-HF

Part# 32128-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.58

3211-8

7

SCREW-HH

Part# 3211-8

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.13

65-5950

8

BUSHING-PULLEY

Part# 65-5950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.08

65-5940

9

PULLEY-IDLER

Part# 65-5940

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $26.28

51-3640

10

SLEEVE

Part# 51-3640

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.75

3256-24

11

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.49

323-11

12

SCREW-HH

Part# 323-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.62

55-7650

13

PLATE-SPRING

Part# 55-7650

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $13.76

51-3650-01

14

Spring-Extension

Part# 51-3650-01 (Superseded to 51-3650)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $11.17

3296-5

15

NUT-HEX

Part# 3296-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.56

55-7640-03

16

IDLER ARM ASM

Part# 55-7640-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $72.75

7-0081

17

WASHER-FLAT

Part# 7-0081

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.89

55-7620

18

GUIDE-BELT

Part# 55-7620

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $46.92

52-4780

19

ROD-BELT

Part# 52-4780

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.44

3231-22

20

SCREW-CARR

Part# 3231-22

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.42

29-5590-01

21

BRACKET-PIVOT

Part# 29-5590-01

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.71

40-6200-01

22

Deflector

Part# 40-6200-01

OEM Warranty Repair Part for Toro

Currently unavailable

32152-1

23

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.33

40-6230

24

SPRING

Part# 40-6230

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $25.64

27-0870

29

SPINDLE ASM

Part# 27-0870

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $399.12

3230-18

30

SCREW-CARR

Part# 3230-18

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.93

3211-15

31

SCREW-HH

Part# 3211-15

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.91

54-7781

32

HOUSING - SPINDLE ASM

Part# 54-7781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $605.46

322-50

33

SCREW-HH

Part# 322-50

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.40
