30151 - Toro 52" Side-Discharge Mower Deck (SN: 220000001 - 220999999) (2002) COVER & GAGE WHEELS ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck

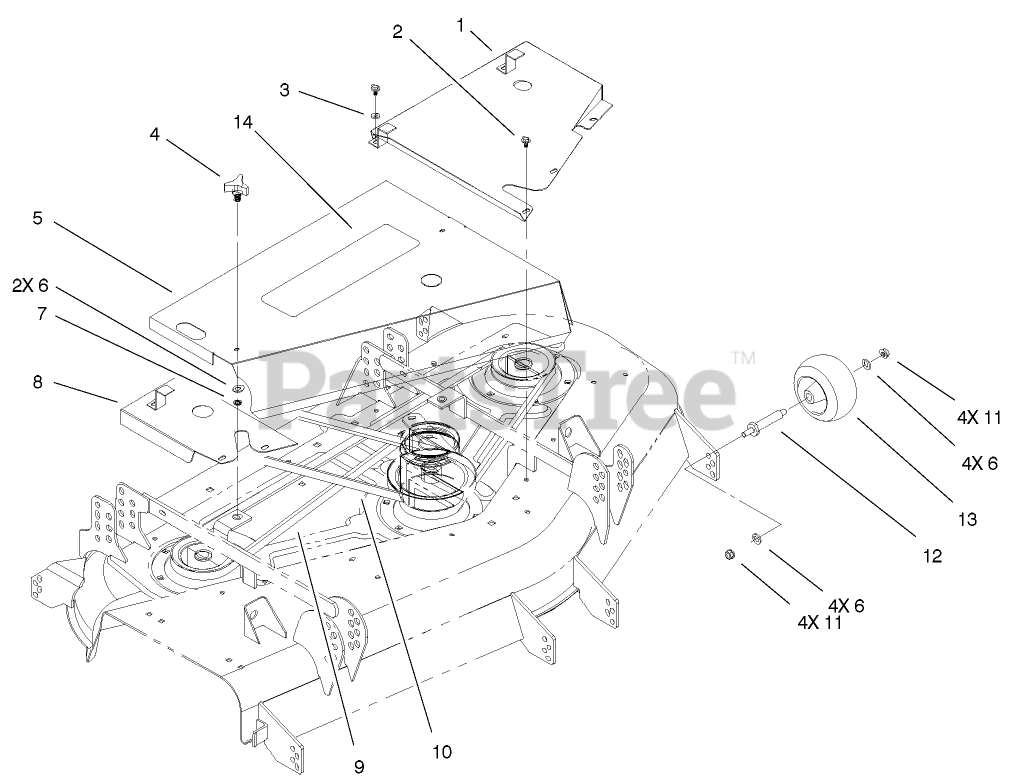

COVER & GAGE WHEELS ASSEMBLY Parts Diagram

  • Title

1

Toro 51-3910-01

LH COVER ASM

$

$

Not available

2

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

3

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 62-6520

KNOB

$8.99

$

In Stock, only 2 left!

0

5

Toro 82-5410-01

COVER-CENTER

$

$

Not available

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

8

Toro 51-3890-01

RH COVER ASM

$

$

Not available

9

Toro 27-1160

V-BELT

$59.99

$

In Stock, Qty 7

0

10

Toro 99-2843

V-BELT-DECK DRIVE

$144.99

$

Usually ships in 3-6 days

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 99-2842

SPACER
(Superseded to 126-2928)

$28.99

$

In Stock, Qty 20+

0

13

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$25.99

$

In Stock, Qty 20+

0

14

Toro 98-5953

DECAL

$72.99

$

Usually ships in 3-6 days

0
