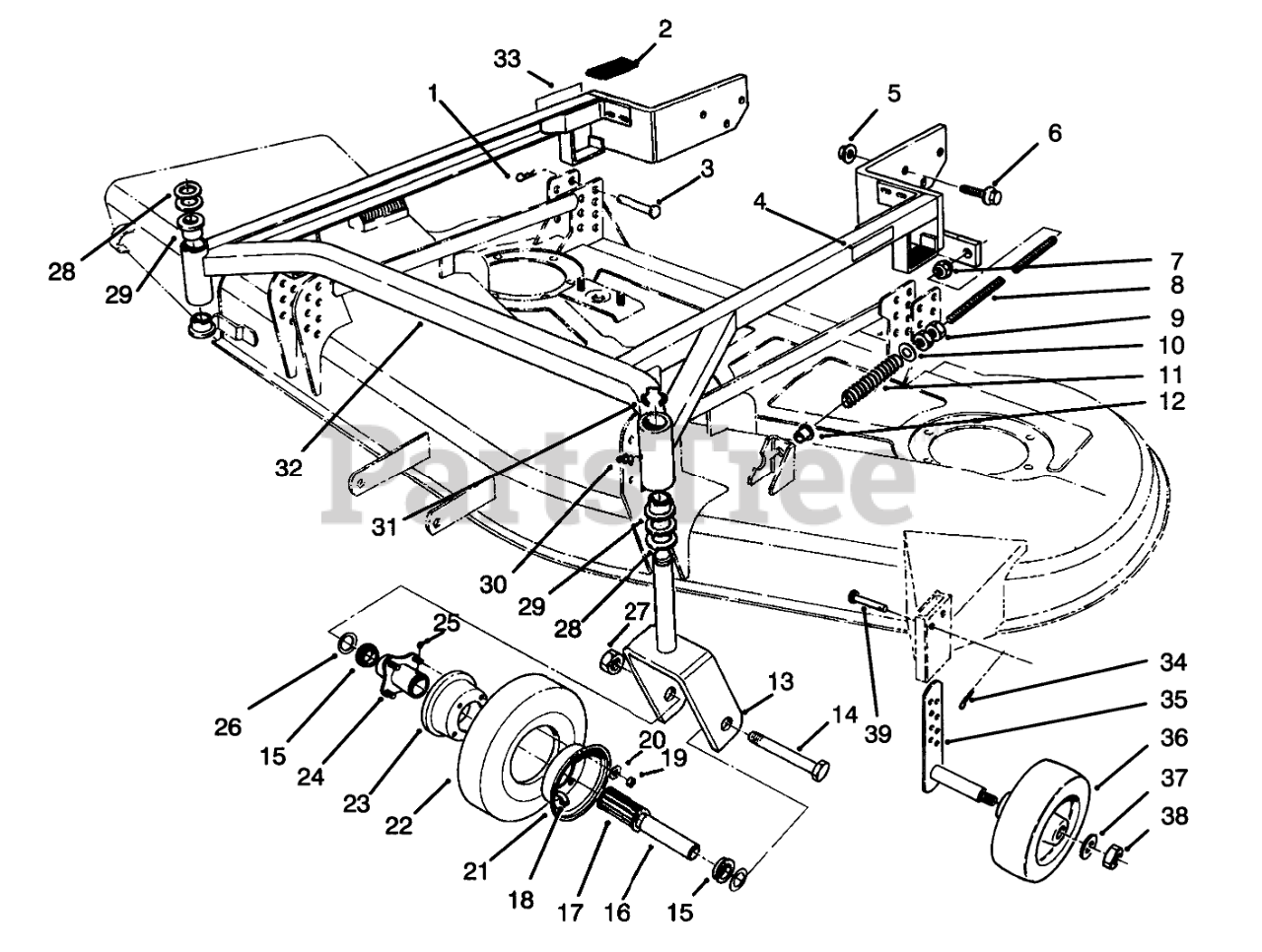

30152 - Toro 52" Side-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) > Parts Diagrams (5) > CARRIER FRAME ASSEMBLY

  • Title
3290-355

1

PIN-HAIR

Part# 3290-355

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.57

74-0350

2

CUSHION-RUBBER

Part# 74-0350

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.00

283-55

3

PIN-CLEVIS

Part# 283-55

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.15

68-8360

4

DECAL-HOC, LH

Part# 68-8360

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.43

32128-23

5

NUT-HF

Part# 32128-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.41

3234-6

6

SCREW-HHF

Part# 3234-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.26

3296-45

7

NUT-LOCK, NI

Part# 3296-45

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.78

74-0310

8

SHAFT-ADJUSTING

Part# 74-0310

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $37.22

3218-5

9

NUT-JAM

Part# 3218-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

41-8440

10

WASHER

Part# 41-8440

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.07

74-0290

11

SPRING

Part# 74-0290

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.57

256-156

12

BUSHING-FLANGE

Part# 256-156

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.05

74-0250

13

Castor Fork

Part# 74-0250 (Superseded to 74-0250-01)

OEM Warranty Repair Part for Toro

Not available

325-19

14

SCREW-HH

Part# 325-19

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.37

62-5580

15

BEARING-OUTSIDE

Part# 62-5580

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.82

68-8980

16

SPANNER-TIRE

Part# 68-8980

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.75

62-5570

17

BEARING-ROLLER

Part# 62-5570

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.05

68-8950

18

TUBE-INNER (W/VALVE)

Part# 68-8950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $24.59

3219-2

19

NUT-HEX

Part# 3219-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.70

3253-4

20

WASHER-LOCK

Part# 3253-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.60

68-8930

21

MALE WHEEL HALF

Part# 68-8930

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.64

68-8960

22

TIRE

Part# 68-8960

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $42.32

68-8920

23

FEMALE WHEEL HALF

Part# 68-8920

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.64

68-8940

24

HUB-CENTER

Part# 68-8940

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.35

302-61

25

FITTING-GREASE

Part# 302-61

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.47

3256-6

26

WASHER-FLAT

Part# 3256-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.48

32153-5

27

NUT-HEX

Part# 32153-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.44

3-6781

28

WASHER-THRUST

Part# 3-6781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.55

28-9290

29

Bushing

Part# 28-9290 (Superseded to 94-1291)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.93

302-5

30

FITTING-GREASE

Part# 302-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.36

32151-91

31

RING-RETAINING

Part# 32151-91

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

74-0190

32

Frame-Carrier (Incl. Ref. #30)

Part# 74-0190 (Superseded to 94-4185)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1923.37

74-0940

33

DECAL-HOC, RH

Part# 74-0940

OEM Warranty Repair Part for Toro

Not available

13-3869

Assembly-Castor Wheel

Part# 13-3869 (Superseded to 68-8970)

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $88.31

3290-467

34

PIN-HAIR

Part# 3290-467

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.58

68-2350

35

GAGE-WHEEL

Part# 68-2350

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $76.77

68-2730

36

WHEEL-GAGE

Part# 68-2730 (Superseded to 1-603299)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $17.88

3256-24

37

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.49

3296-39

38

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.00

283-2

39

PIN-CLEVIS

Part# 283-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.72
